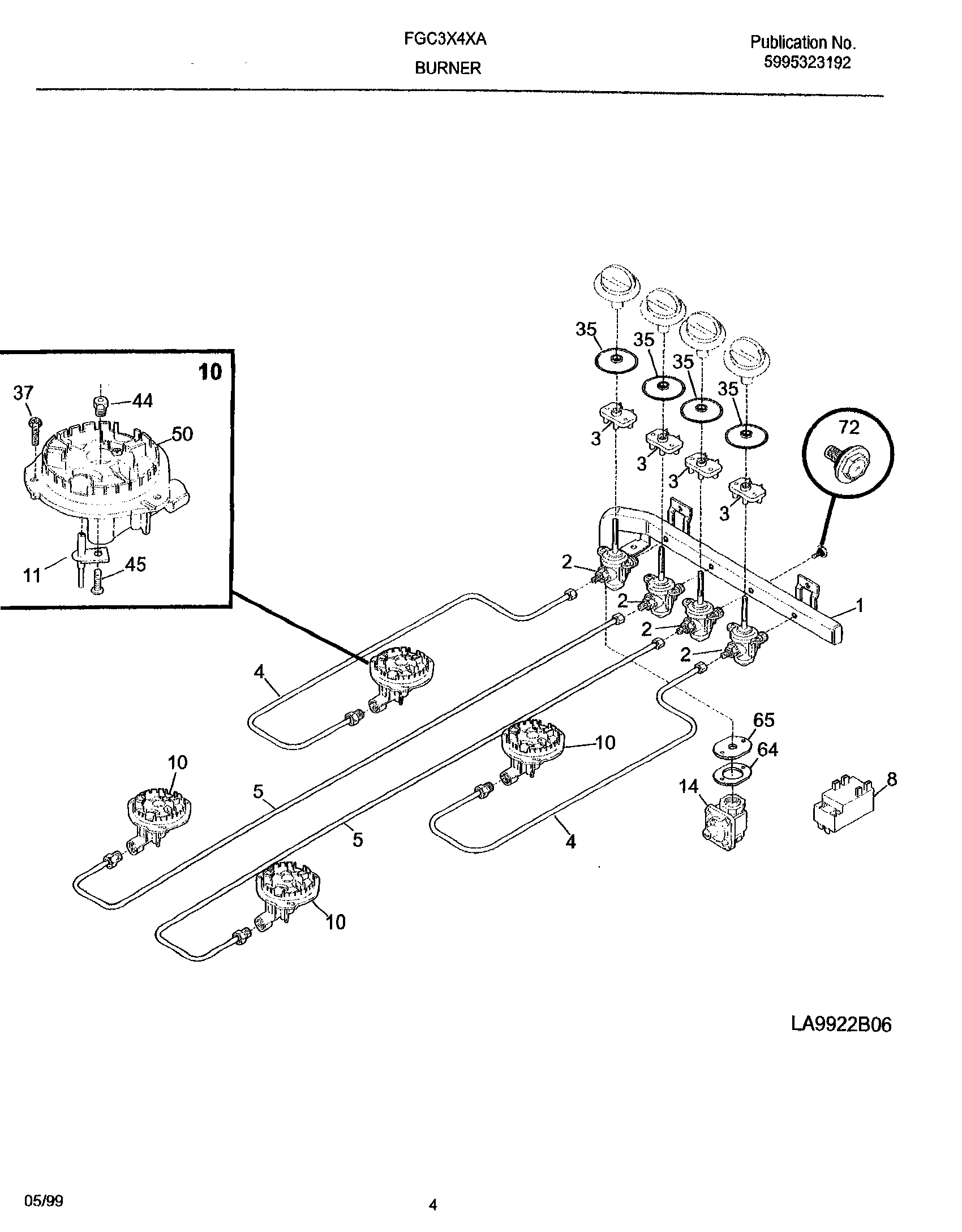

FGC3X4XAWD 05 – BURNER

Products

Position	Product
NI	5303311174 Frigidaire Oven Screw
1	WCI 318177000
2	WCI 5303935042
3	SWITCH-IGNITOR
4	TUBE-BURNER
5	TUBE-BURNER
8	5304505695 Frigidaire Oven Module
10	BURNER ASSY
11	316011200 Frigidaire Oven Top Burner Igniter
14	5308007974 Frigidaire Pressure Regulator
35	WCI 5303307978
37	316069301 Frigidaire Oven Burner Mounting Primary Screw
44	ORIFICE-TOP BURNER
45	WCI 316011100
50	WCI 316010700
64	Bracket,retainer
65	5304506478 Frigidaire Seal
72	WCI 5303323141
