FGC3X8XCBA 03 – BURNER PARTS

FGC3X8XCBA 03 – BURNER PARTS

Written by

in

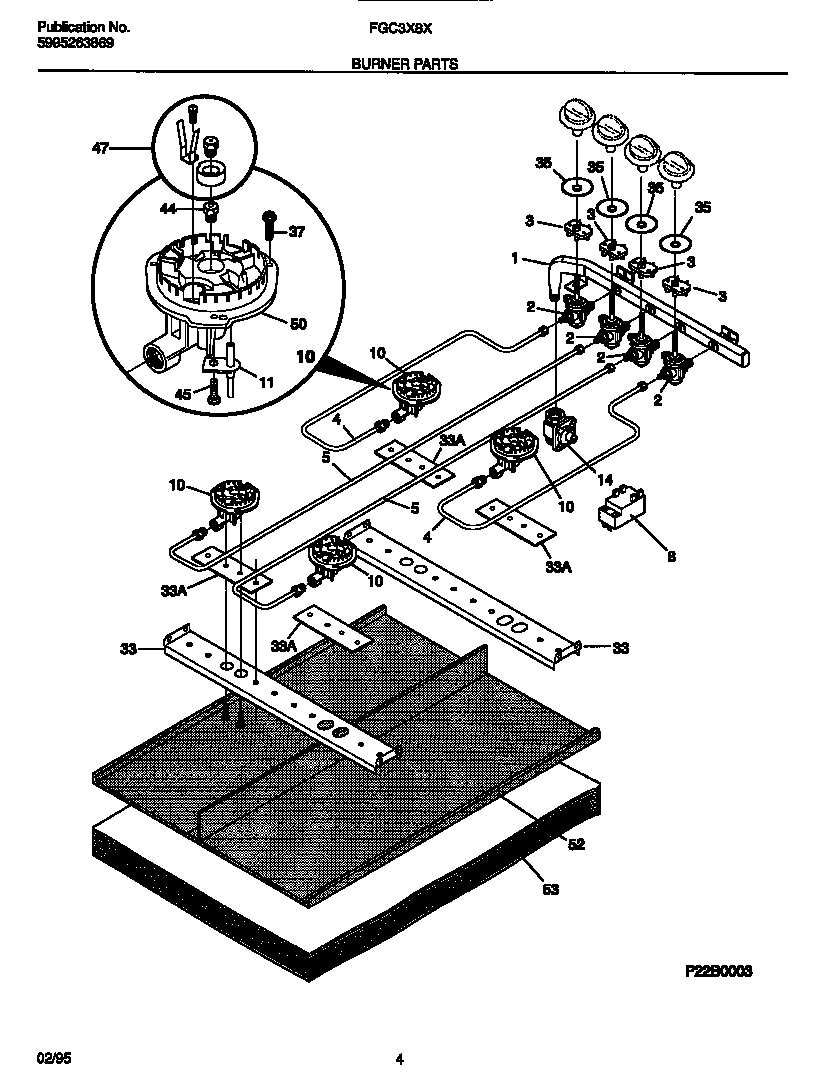

FGC3X8XCBA 03 – BURNER PARTS

Products

PositionProduct
*71288WIRE-IGNITOR (30 INCH)
*71289WIRE-IGNITOR (20 INCH)
*71287WIRE-IGNITOR (36 INCH)
*712825303307980 Frigidaire Oven Screw
*71285WCI 318065000
*71283HARNESS-WIRING, MAIN
*71284WCI 318084000
*712865303311174 Frigidaire Oven Screw
*71290WIRE-IGNITOR (14 INCH)
1WCI 5303307976
2316048200 Frigidaire Oven Screw
2WCI 5303935042
3SWITCH-IGNITOR
4TUBE-BURNER
5TUBE-BURNER
85304505695 Frigidaire Oven Module
10BURNER ASSY-TOP, SEALED, (4), INCLUDES, 11, 37, 44, 45,
11316011200 Frigidaire Oven Top Burner Igniter
145308007974 Frigidaire Pressure Regulator
33ABRACKET-BURNER MTG
33WCI 5303307977
35WCI 5303307978
37316069301 Frigidaire Oven Burner Mounting Primary Screw
44ORIFICE-TOP BURNER, (4)
45WCI 316011100
47WCI 5303302413
52WCI 5303209024
53WCI 5303209025
