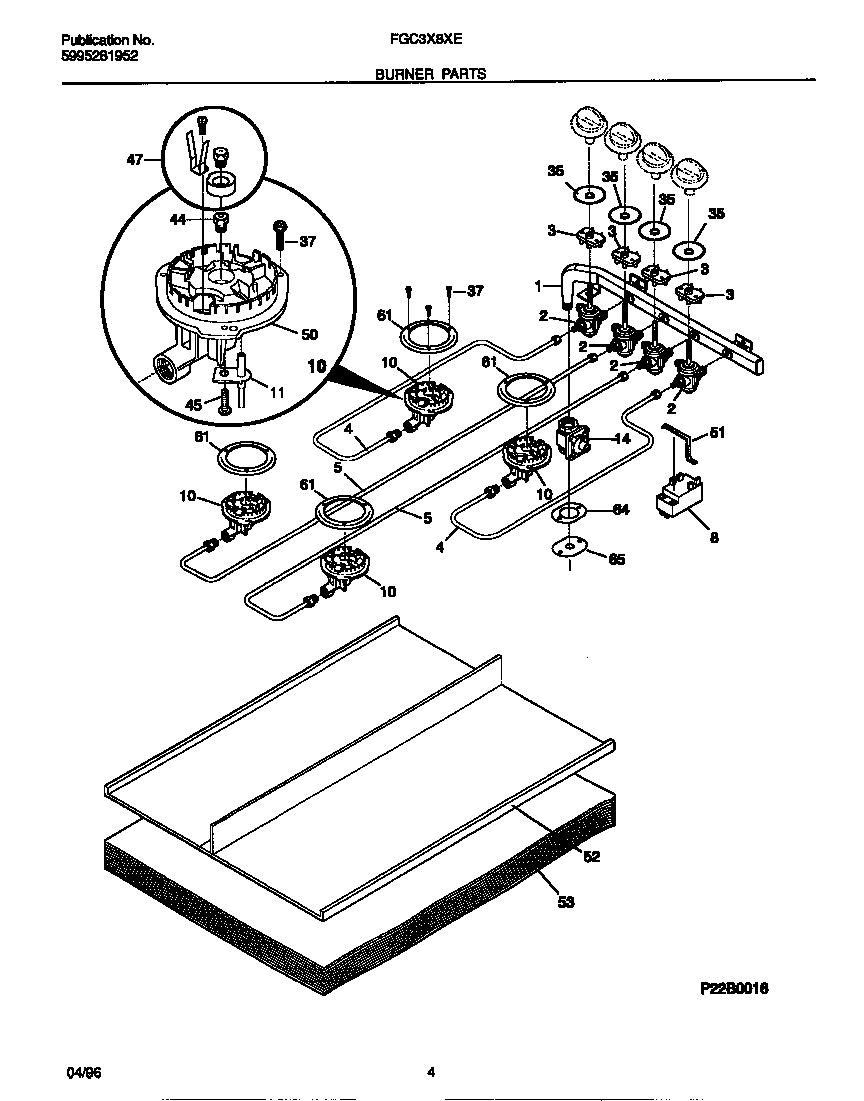

FGC3X8XESA 03 – BURNER PARTS

Products

Position	Product
*75320	WCI 318065000
*75322	5303211311 Frigidaire Refrigerator Screw
*75321	5303307980 Frigidaire Oven Screw
1A	WCI 5303307976
1B	5303311174 Frigidaire Oven Screw
2B	316048200 Frigidaire Oven Screw
2A	WCI 5303935042
3	SWITCH-IGNITOR
4	TUBE-BURNER
5A	TUBE-BURNER
5B	WCI 5303311261
8	5304505695 Frigidaire Oven Module
10	BURNER ASSY
11	316011200 Frigidaire Oven Top Burner Igniter
14	5308007974 Frigidaire Pressure Regulator
33	WCI 5303307977
33	BRACKET-BURNER MTG
35	WCI 5303307978
37	316069301 Frigidaire Oven Burner Mounting Primary Screw
44	ORIFICE-TOP BURNER
45	WCI 316011100
47	WCI 5303302413
50	BURNER-TOP, SMALL, (4)
51	WCI 318024200
52	WCI 5303209024
53	WCI 5303209025
61	TRIM RING CHROME
64	Bracket,retainer
65	5304506478 Frigidaire Seal
