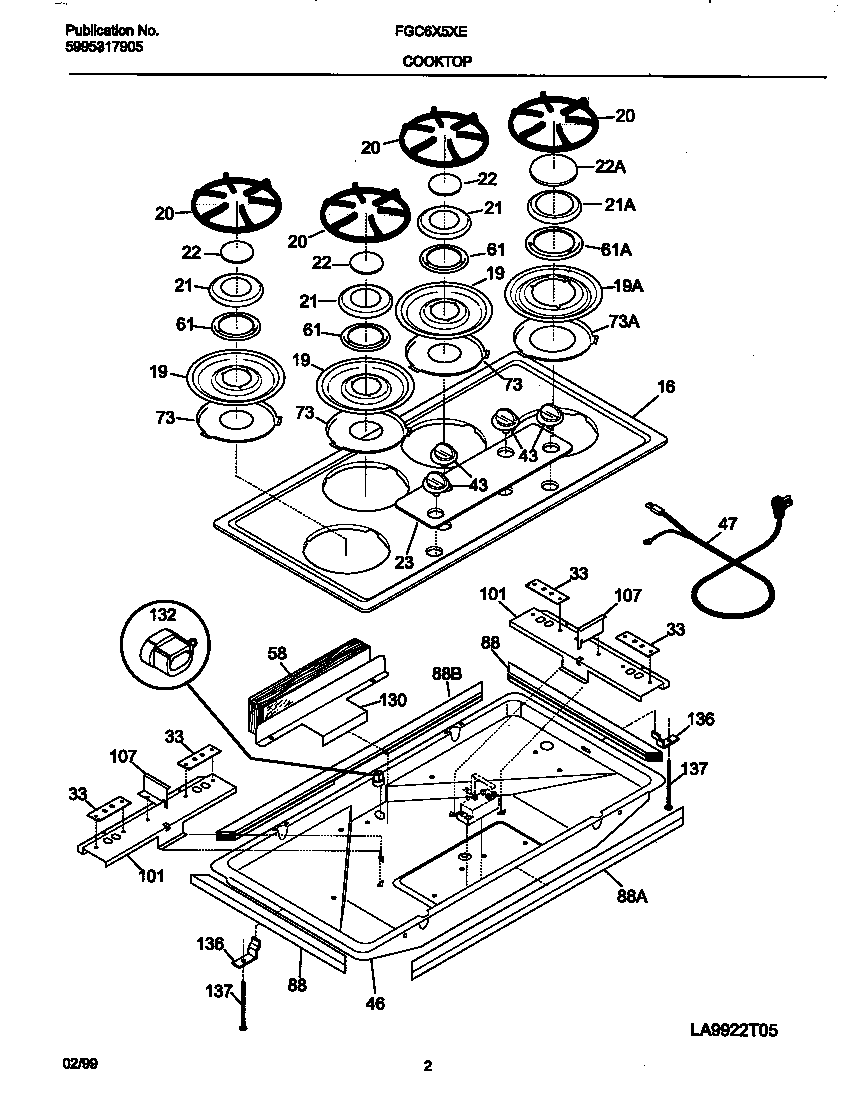

FGC6X5XEDD 02 – COOKTOP

FGC6X5XEDD 02 – COOKTOP

Written by

in

FGC6X5XEDD 02 – COOKTOP

Products

PositionProduct
*225665304480396 Frigidaire Screw
*22567WCI 318052106
*225635303323140 Frigidaire Oven Screw
*22564WCI 5303325982
*22565316524400 Frigidaire Oven Screw
*225615303307980 Frigidaire Oven Screw
*225605303211311 Frigidaire Refrigerator Screw
16WCI 318065902
19PAN-BURNER,BLACK
19WCI 318065721
20GRATE-BLACK
21TRIM-RING,BLACK ,LARGE
21TRIM-RING (MEDIUM)
22CAP-BURNER,BLACK ,SMALL
22CAP-BURNER,BLACK ,LARGE
23PANEL-CONTROL,BLACK
33BRACKET-BURNER MTG
43KNOB-TOP VALVE BLACK
46WCI 318077100
47WCI 5303303991
58WCI 5303326117
61TRIM RING LARGE
61TRIM RING CHROME
73SHIELD-BURNER,LARGE
73SHIELD-BURNER,SMALL
88GASKET-COOKTOP
88WCI 318052801
88WCI 318052800
101BRACKET-BURNER
107WCI 318113600
130WCI 318125001
1325304513507 Frigidaire Bushing Assembly
136SUPPORT
137WCI 5303323138
