FGC6X5XEWA 03 – BURNER

FGC6X5XEWA 03 – BURNER

Written by

in

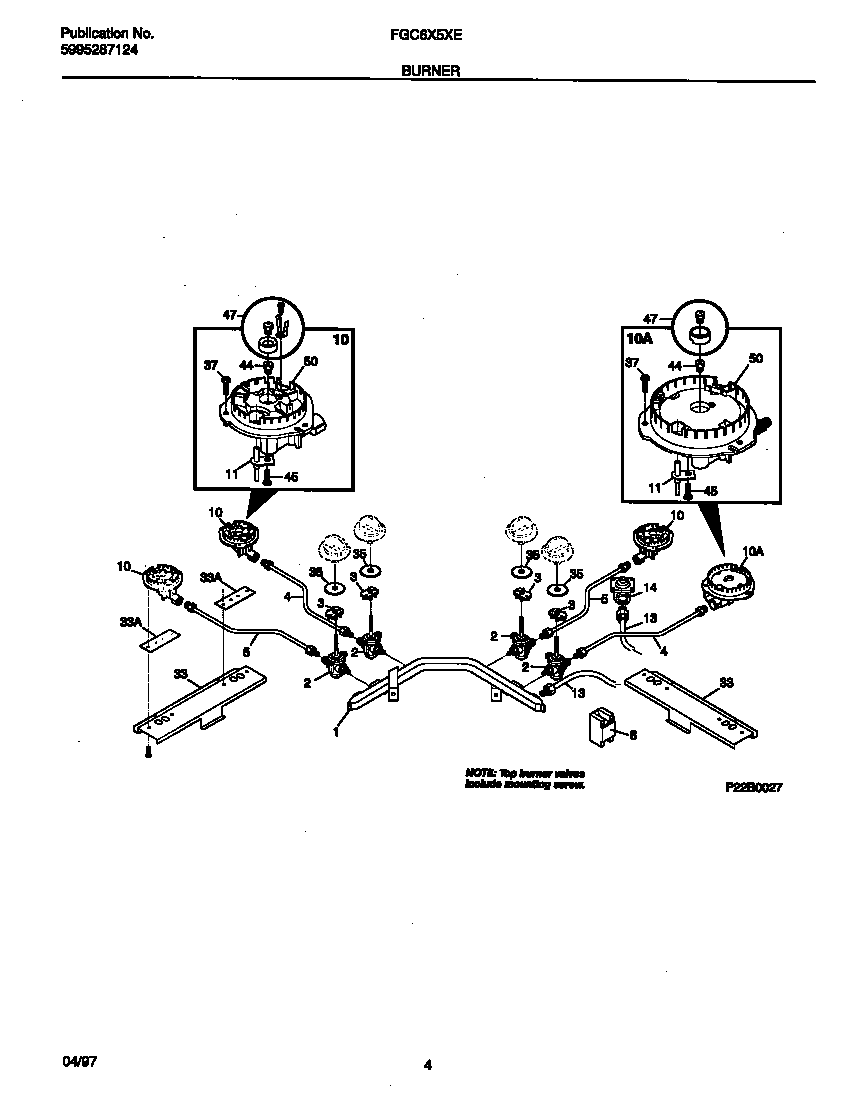

FGC6X5XEWA 03 – BURNER

Products

PositionProduct
*948075303311174 Frigidaire Oven Screw
*94811SCREW, METRIC
*94808WCI 318065000
*948095303211311 Frigidaire Refrigerator Screw
*948105303307980 Frigidaire Oven Screw
*94805Bracket,retainer
*948065304506478 Frigidaire Seal
1WCI 318077910
2WCI 316036801
2B316048200 Frigidaire Oven Screw
2AWCI 5303935042
3SWITCH-IGNITOR
4WCI 318054604
5WCI 318054605
85304505695 Frigidaire Oven Module
10BURNER ASSY
10BURNER ASSY
11316011200 Frigidaire Oven Top Burner Igniter
13TUBE CONNECTOR MANIFOLD
145308007974 Frigidaire Pressure Regulator
33BRACKET-BURNER MTG
33BRACKET-BURNER
35WCI 5303307978
37316069301 Frigidaire Oven Burner Mounting Primary Screw
44AORIFICE-TOP BURNER
44BORIFICE-TOP BURNER/ORIFICE
45WCI 316011100
47WCI 5303319611
50BBURNER-TOP, (4), INCLUDES 37
50A316010601 Frigidaire Top Burner
