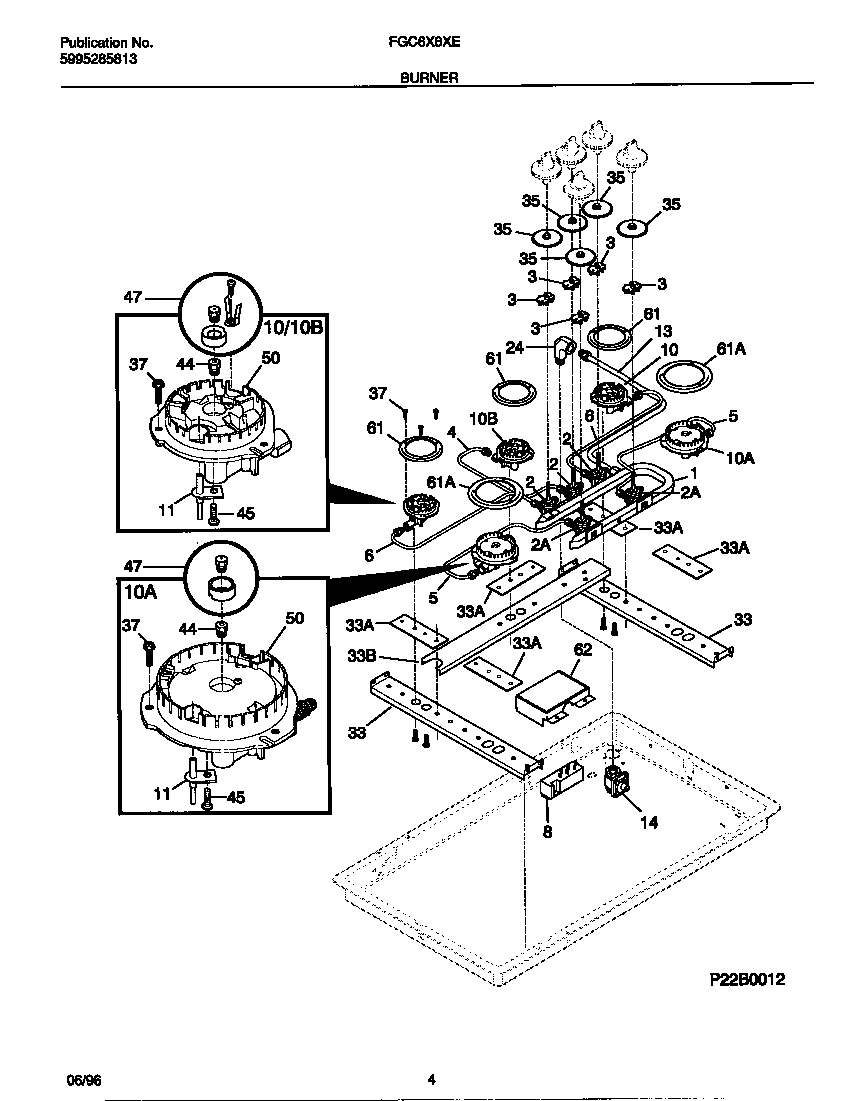

FGC6X8XESA 03 – BURNER

FGC6X8XESA 03 – BURNER

Written by

in

FGC6X8XESA 03 – BURNER

Products

PositionProduct
*65444WCI 318052100
*65441WCI 318065000
*654435303307980 Frigidaire Oven Screw
*654425303211311 Frigidaire Refrigerator Screw
*654405303311174 Frigidaire Oven Screw
1WCI 318078000
2WCI 5303935042
2WCI 316036801
2316048200 Frigidaire Oven Screw
3SWITCH-IGNITOR
4TUBE-BURNER
5WCI 318054601
6WCI 318054600
8WCI 318079000
10WCI 318055000
10BURNER ASSY
10BURNER ASSY
11316011200 Frigidaire Oven Top Burner Igniter
13WCI 318054500
145308007974 Frigidaire Pressure Regulator
24WCI 318054000
33BRACKET-BURNER MTG
33WCI 5303311263
33WCI 5303307977
35WCI 5303307978
37316069301 Frigidaire Oven Burner Mounting Primary Screw
44ORIFICE-TOP BURNER
45WCI 316011100
50316010601 Frigidaire Top Burner
50BURNER-TOP, SMALL, (4)
61TRIM RING LARGE
61TRIM RING CHROME
62WCI 318077500
