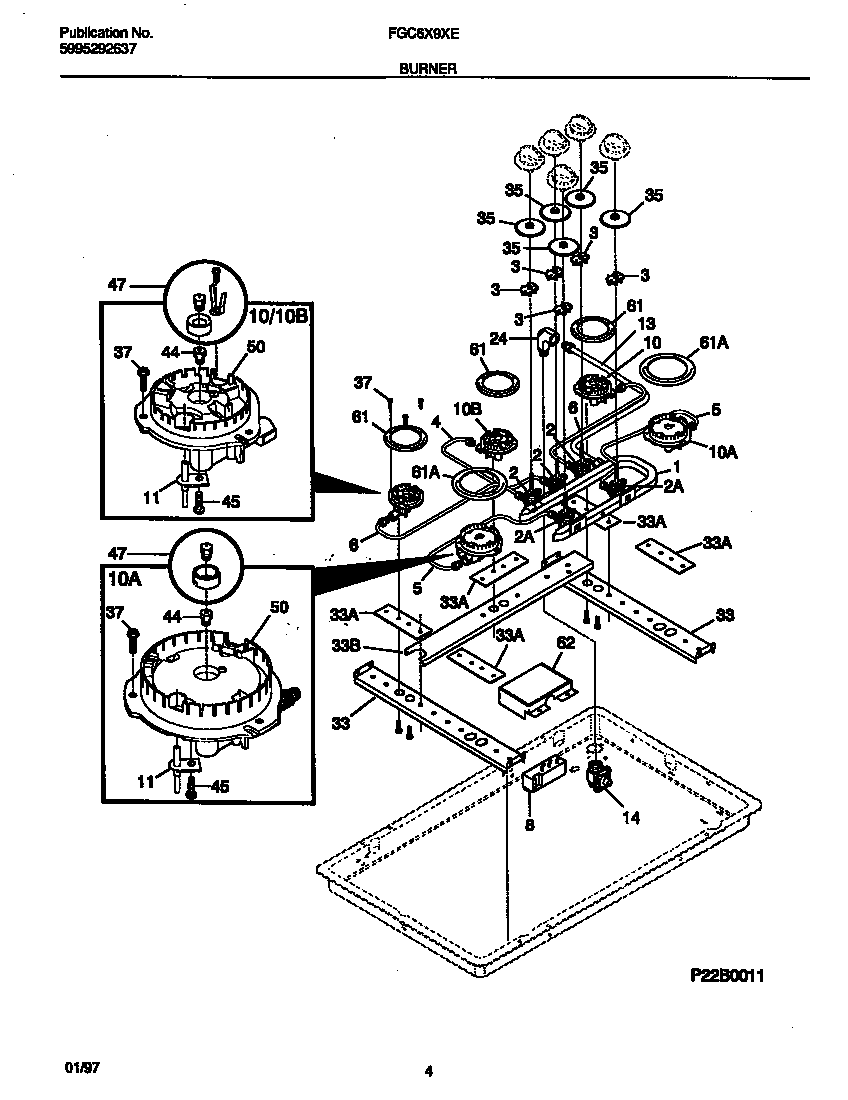

FGC6X9XECA 03 – BURNER

FGC6X9XECA 03 – BURNER

Written by

in

FGC6X9XECA 03 – BURNER

Products

PositionProduct
*37164SCREW, METRIC
*371605303311174 Frigidaire Oven Screw
*37161WCI 318065000
*371625303211311 Frigidaire Refrigerator Screw
*371635303307980 Frigidaire Oven Screw
*37165WCI 318052100
1WCI 318078000
2WCI 316036801
2316048200 Frigidaire Oven Screw
2WCI 5303935042
3SWITCH-IGNITOR
4TUBE-BURNER
5WCI 318054601
6WCI 318054600
8WCI 318079000
10BURNER ASSY
10BURNER ASSY
10WCI 318055000
11316011200 Frigidaire Oven Top Burner Igniter
13WCI 318054500
145308007974 Frigidaire Pressure Regulator
24WCI 318054000
33WCI 5303311263
33WCI 5303307977
33BRACKET-BURNER MTG
35WCI 5303307978
37316069301 Frigidaire Oven Burner Mounting Primary Screw
44WCI 318088701
44ORIFICE-TOP BURNER/ORIFICE
44ORIFICE-TOP BURNER
45WCI 316011100
47WCI 5303318666
50316010601 Frigidaire Top Burner
50BURNER-TOP, SMALL, (4)
61TRIM RING LARGE
61TRIM RING CHROME
62WCI 318077500
