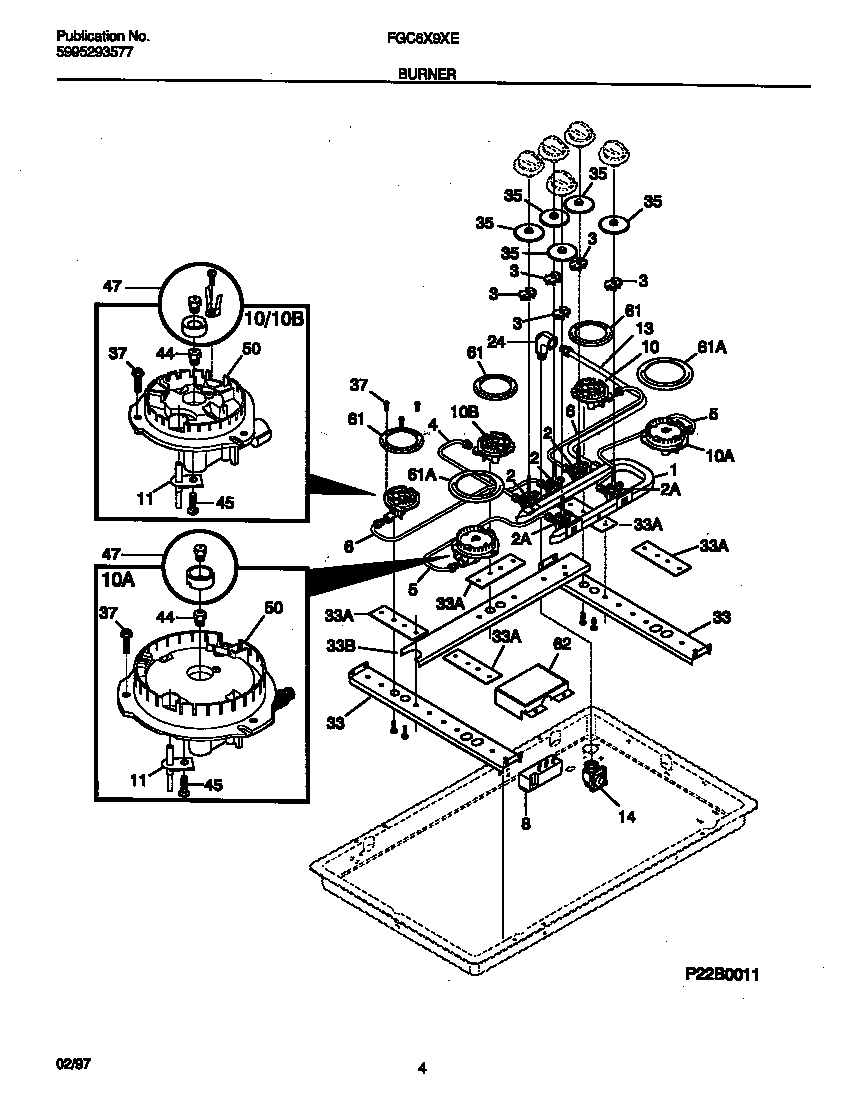

FGC6X9XETC 03 – BURNER

FGC6X9XETC 03 – BURNER

Written by

in

FGC6X9XETC 03 – BURNER

Products

PositionProduct
*882835303307980 Frigidaire Oven Screw
*88281WCI 318065000
*882825303211311 Frigidaire Refrigerator Screw
*88284WCI 318052100
1B5303311174 Frigidaire Oven Screw
1AWCI 318078000
2B316048200 Frigidaire Oven Screw
2AWCI 5303935042
2WCI 316036801
3SWITCH-IGNITOR
4TUBE-BURNER
5WCI 318054601
6WCI 318054600
8WCI 318079000
10WCI 318055000
10BURNER ASSY
10BURNER ASSY
11316011200 Frigidaire Oven Top Burner Igniter
13WCI 318054500
145308007974 Frigidaire Pressure Regulator
24WCI 318054000
33BRACKET-BURNER MTG
33WCI 5303307977
33WCI 5303311263
35WCI 5303307978
37SCREW, METRIC
44BORIFICE-TOP BURNER
44AWCI 318088701
44CORIFICE-TOP BURNER/ORIFICE
45WCI 316011100
47WCI 5303318666
50B316010601 Frigidaire Top Burner
50ABURNER-TOP, SMALL, (4)
61TRIM RING CHROME
61TRIM RING LARGE
62WCI 318077500
