FGDF4085TSA 03 – BURNER

FGDF4085TSA 03 – BURNER

Written by

in

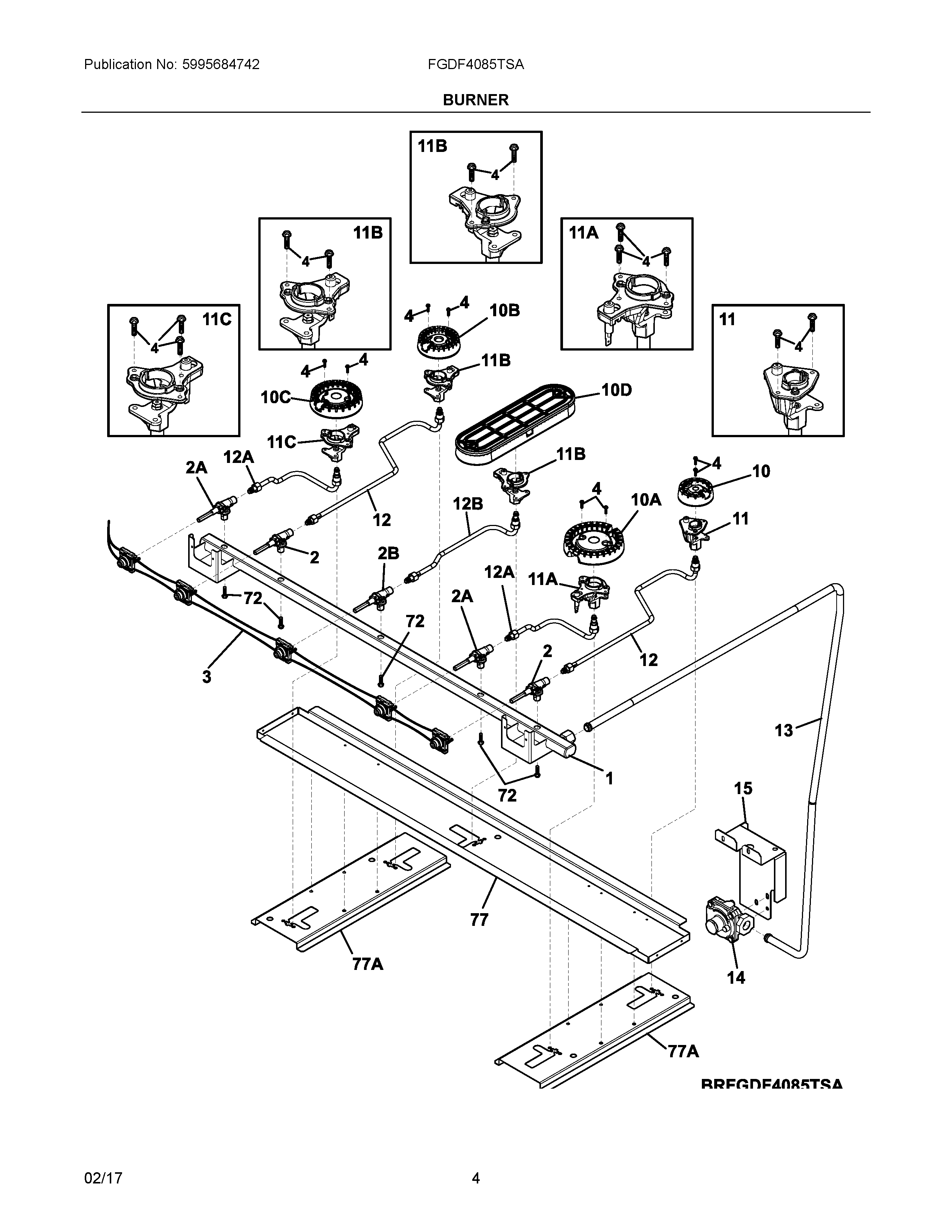

FGDF4085TSA 03 – BURNER

Products

PositionProduct
NI808695307 Frigidaire Lp Conversion Kit
NI5304517715 Frigidaire Harness Assembly
NI316021109 Frigidaire Oven Screw
NI316021105 Frigidaire Oven Screw
15304509382 Frigidaire Oven Manifold Assembly
2BA5304506551 Frigidaire Oven Valve
25304506548 Frigidaire Oven Valve
2B5304506550 Frigidaire Oven Range Gas Valve (White)
35304509388 Frigidaire Harness Assembly
4316540900 Frigidaire Oven Screw
10A316438400 Frigidaire Range Sealed Burner, 16/17K
10B316558300 Frigidaire Oven 9.5L Sealed Burner
10C316438600 Frigidaire Range Sealed Burner, 14K
10316438200 Frigidaire Range Sealed Burner, 5K
10D316559300 Frigidaire Oven Burner
11C316543206 Frigidaire Igniter Orifice Assembly
11A316543200 Frigidaire Igniter/Orifice Assembly
11B316540700 Frigidaire Igniter/Orifice Assembly
11316540800 Frigidaire Igniter/Orifice Assembly
12807843801 Frigidaire Tube
12ATUBE, BURNER, LF/RF
12BTUBE, BURNER, CENTER
13TUBE, MANIFOLD, TO REGULATOR
145304509385 Frigidaire Regulator Assembly
15BRACKET, REGULATOR
72316215600 Frigidaire Oven Screw
775304509409 Frigidaire Brace
77A5304509410 Frigidaire Brace
