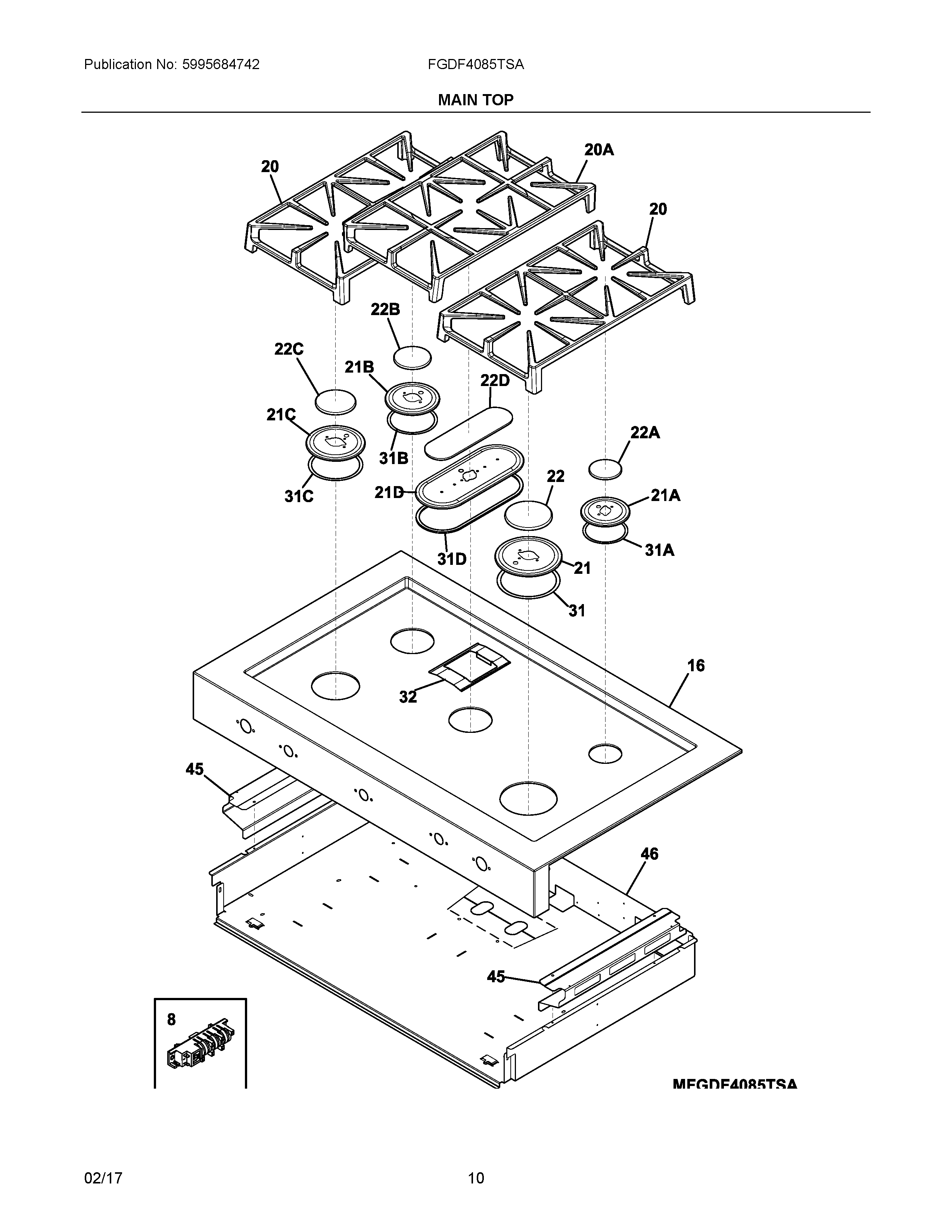

FGDF4085TSA 05 – MAIN TOP

Products

Position	Product
NI	316021105 Frigidaire Oven Screw
NI	5304517715 Frigidaire Harness Assembly
NIA	5304505563 Frigidaire Oven Wire
NIB	316001017 Frigidaire Screw
NI	316540900 Frigidaire Oven Screw
NI	5303289910 Frigidaire Oven Screw
8	SPARK MODULE
16	139083507 Frigidaire Oven Maintop
20A	5304509383 Frigidaire Oven Grate
20	5304509384 Frigidaire Oven Grate
21A	318293107 Frigidaire Oven Skirt
21D	SKIRT, 9.5K BURNER, BLACK, OVAL
21	SKIRT, 17K BURNER, BLACK
21B	318293007 Frigidaire Oven Skirt Assembly
21C	318293308 Frigidaire Oven Skirt
22A	CAP
22B	5304508442 Frigidaire Oven Surface Burner Cap
22D	316559604 Frigidaire Oven Cap
22	5304508468 Frigidaire Oven Cap
22C	5304508443 Frigidaire Oven Surface Burner Cap
31A	316242002 Frigidaire Range Burner Seal
31C	316242000 Frigidaire Burner Seal
31	316242004 Frigidaire Oven Seal
31D	SEAL, BURNER, 9.5K OVAL
31B	316242001 Frigidaire Oven Burner Seal 9.5k/12k
32	BRACKET, GASKET RETAINER
45	BRACKET, SIDE SUPPORT
46	BOX, BURNER
