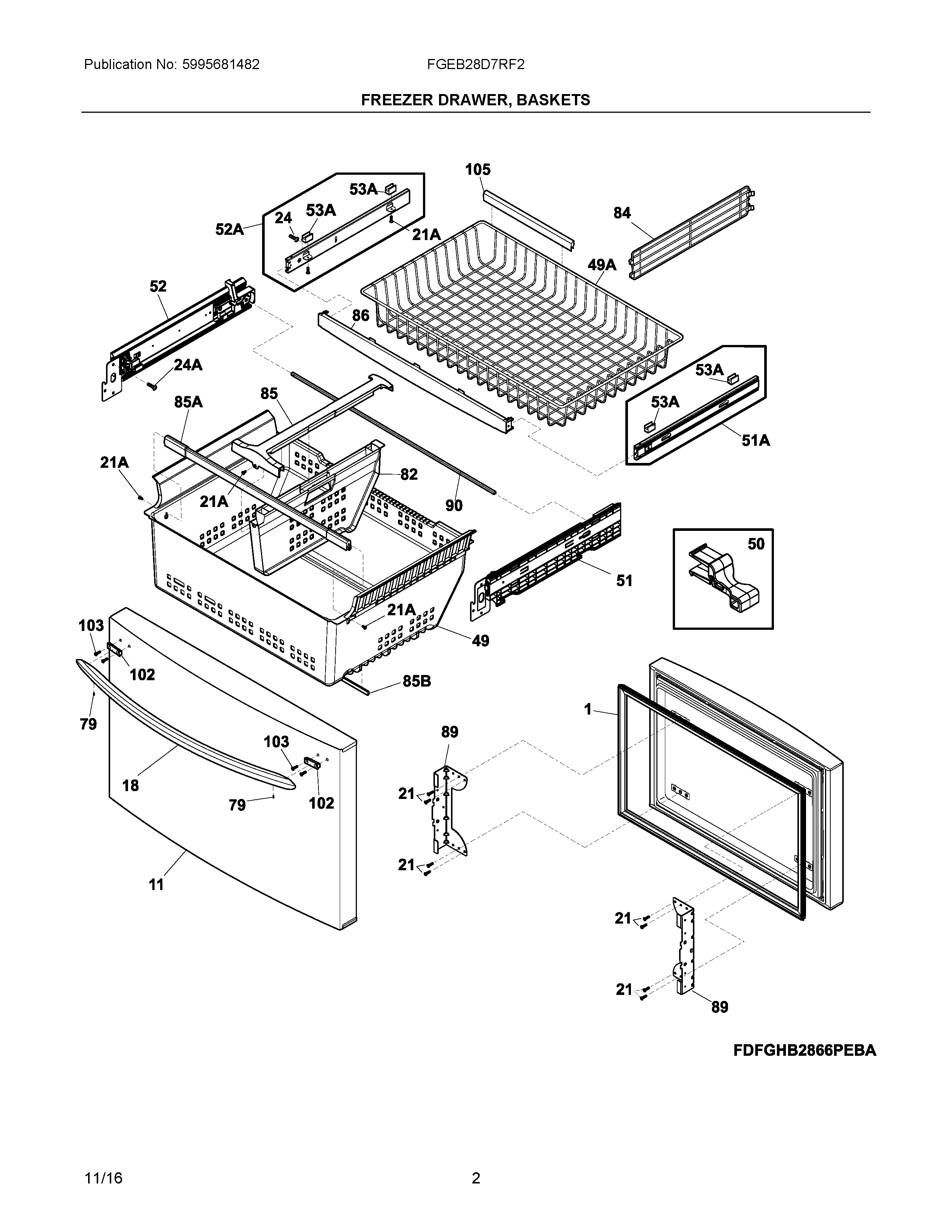

FGEB28D7RF2 02 – FREEZER DRAWER, BASKETS

FGEB28D7RF2 02 – FREEZER DRAWER, BASKETS

Written by

in

FGEB28D7RF2 02 – FREEZER DRAWER, BASKETS

Products

PositionProduct
NIA242011101 Frigidaire Refrigerator Pin-Lock
NI242146401 Frigidaire Refrigerator Screw
NI5304453707 Frigidaire Oven Screw
NIA241953908 Frigidaire Refrigerator Screw
NI242015001 Frigidaire Refrigerator Screw
NIA242039702 Frigidaire Refrigerator Screw
NIA242139201 Frigidaire Compression Spring
NIA5304467131 Frigidaire Refrigerator Wrench
NIAA242039701 Frigidaire Refrigerator Screw
1GASKET
11241987921 Frigidaire Refrigerator Freezer Door DSP
18242029401 Frigidaire Refrigerator Brushed Door Handle
21A241953902 Frigidaire Refrigerator Screw
21240383407 Frigidaire Refrigerator Screw
24A240383412 Frigidaire Refrigerator Screw
245304515677 Frigidaire Package of 4 Screws
49A241780810 Frigidaire Refrigerator Basket-Frzr
495303918736 Frigidaire Refrigerator Lower Basket Kit
505304501271 Frigidaire Shelf Clip
51A241894229 Frigidaire Refrigerator Assembly Slide
515303918727 Frigidaire Refrigerator Slide Assembly
52A241894230 Frigidaire Refrigerator Slide Assembly
525303918726 Frigidaire Refrigerator Assembly Slide
53A5303918801 Frigidaire Refrigerator Retainer Set of 4
79218755402 Frigidaire Refrigerator Set Screw
825304503705 Frigidaire Refrigerator Divider
84241780904 Frigidaire Refrigerator Divider
85B241872203 Frigidaire Refrigerator Beam Support
85A242139301 Frigidaire Refrigerator Support-Beam
85242130901 Frigidaire Refrigerator Divider
865304507340 Frigidaire Refrigerator Trim
895304509676 Frigidaire Refrigerator Bracket
90242136901 Frigidaire Refrigerator Timing Bar
102242029301 Frigidaire Refrigerator Door Handle Mounting Block
103242077302 Frigidaire Screw
105242116801 Frigidaire Refrigerator Trim-Basket
