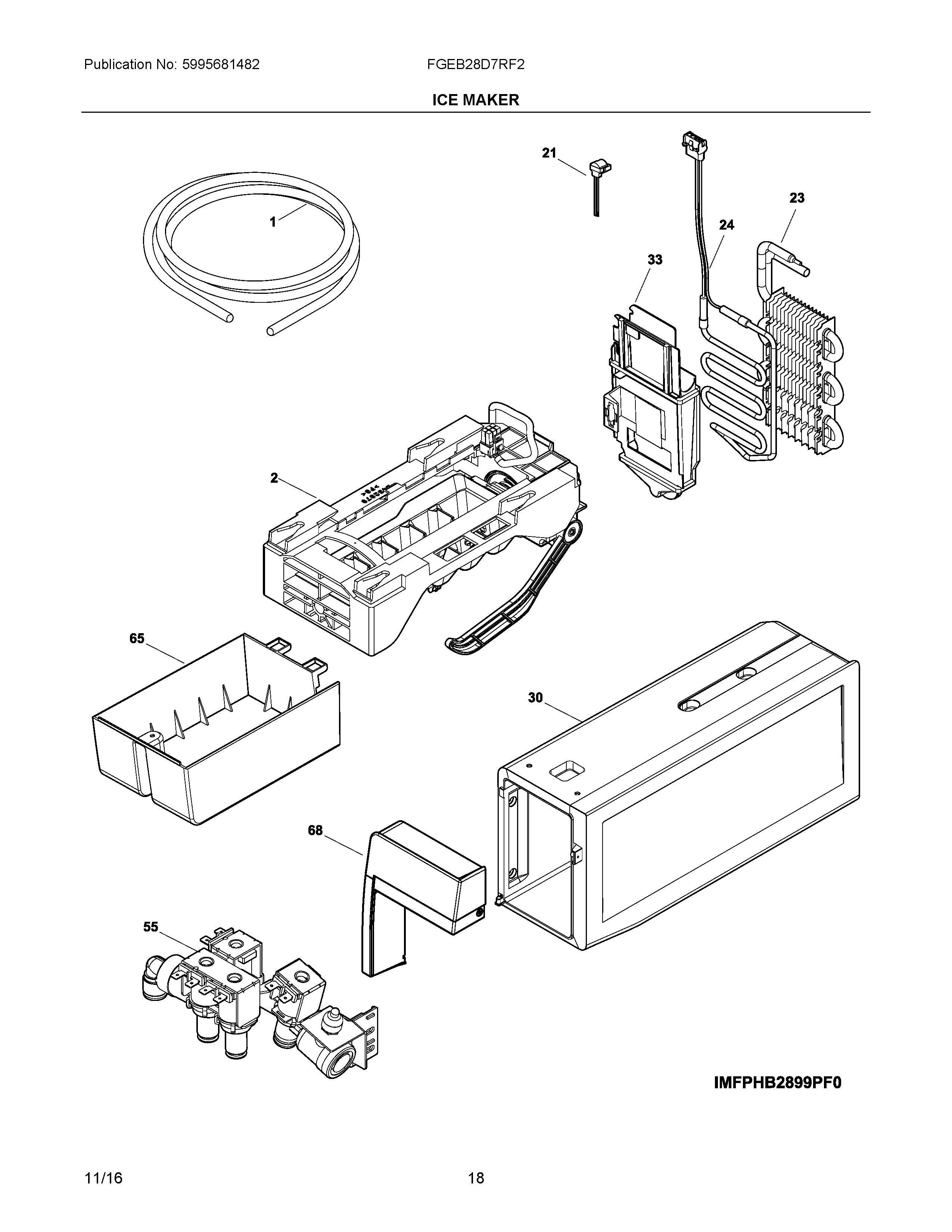

FGEB28D7RF2 09 – ICE MAKER

Products

Position	Product
NI	240396801 Frigidaire Refrigerator Tube Clamp
NI	242039701 Frigidaire Refrigerator Screw
NIA	218709101 Frigidaire Refrigerator Handle Mounting Screw
NIB	240363602 Frigidaire Refrigerator Shoulder Screw
NIA	242220204 Frigidaire Water Inlet Tube
NI	241806601 Frigidaire Refrigerator Water Connector
1	241964707 Frigidaire Refrigerator Water Tube
2	243297613 Frigidaire Refrigerator Ice Maker
33	HOUSING-EVAPORATOR
42	218515401 Frigidaire Refrigerator Clip
45	5304455650 Frigidaire Refrigerator Screw
55	QUAD WATER VALVE
60	218362501 Frigidaire Refrigerator Screw
64	5304455846 Frigidaire Refrigerator Clamp
