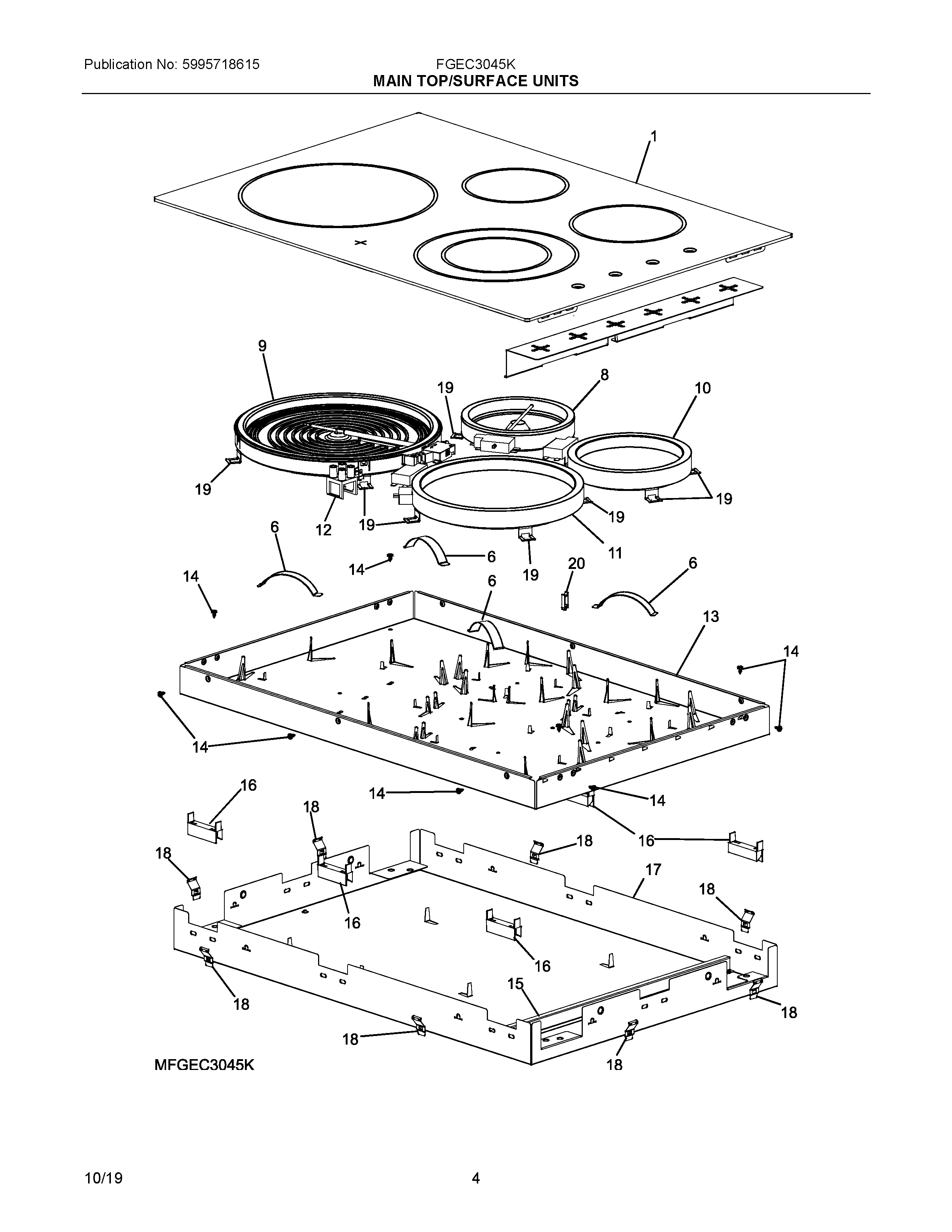

FGEC3045KBB 03 – MAIN TOP/SURFACE UNITS

Products

Position	Product
NI	5308014215 Frigidaire Oven Screw
NI	WCI 5304518621
NI	387627700 Frigidaire Oven Bracket
NI	5304521295 Frigidaire Harness
NI	SCREW, (4)
NI	305351200 Frigidaire Rivet
NI	305309606 Frigidaire Oven Screw
NI	305452800 Frigidaire Screw
1	MAINTOP ASSEMBLY, GLASS/STEEL, BLACK
6	387372900 Frigidaire SPRING
8	A02843501 Frigidaire Element
9	389087201 Frigidaire Oven Element
10	318178104 Frigidaire Oven Element
11	389087401 Frigidaire Oven Element
12	387812004 Frigidaire Light Assembly
13	WCI 387774200
14	330447900 Frigidaire Oven Screw
15	387683500 Frigidaire Support
16	387627600 Frigidaire Spacer
17	WCI 387559400
18	387174602 Frigidaire Oven Bracket
19	387683300 Frigidaire Bracket
20	WCI 387727700
