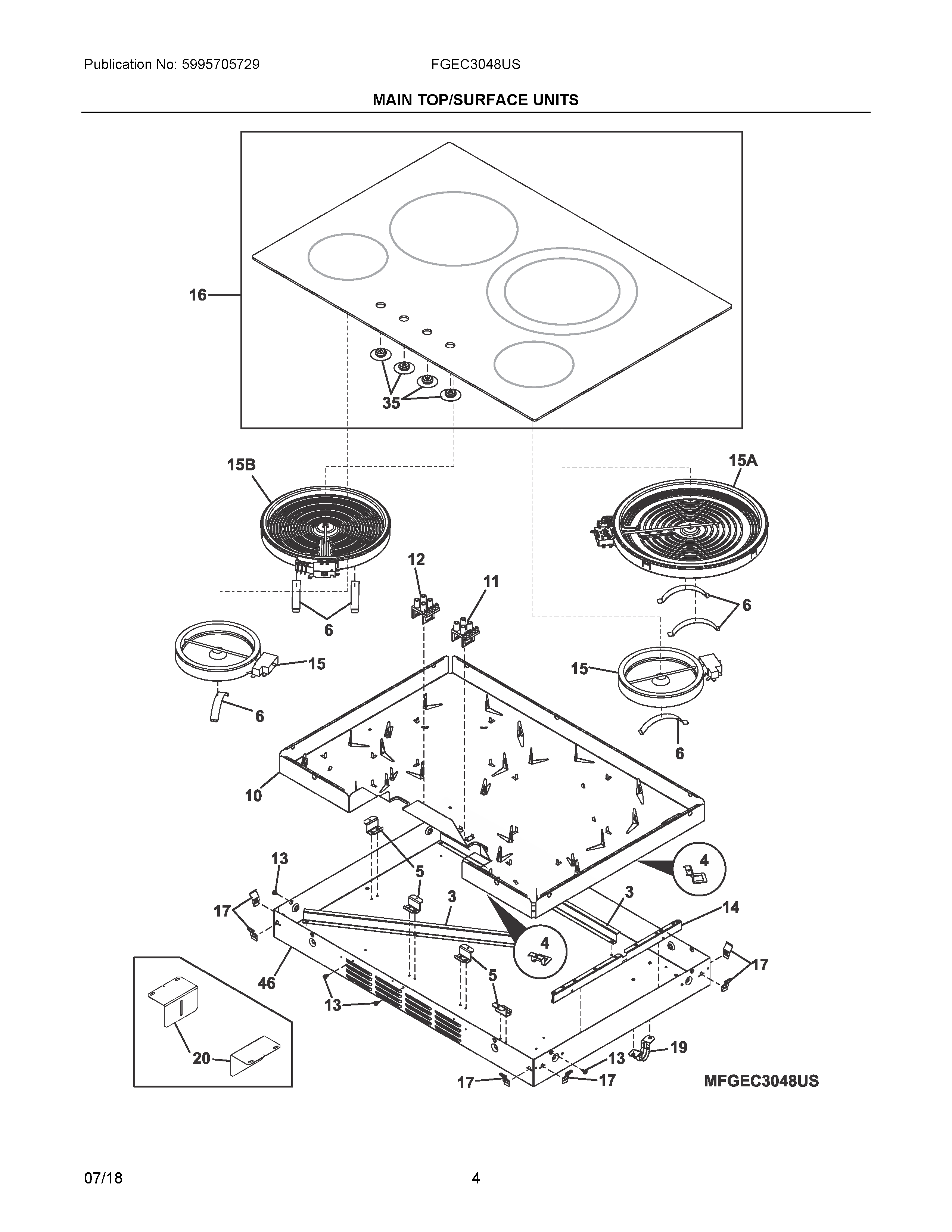

FGEC3048US 03 – MAIN TOP/SURFACE UNITS

Products

Position	Product
NI	5308014215 Frigidaire Oven Screw
NI	BOX & WIRES ASSY
NI	SCREW, (4)
NI	305351200 Frigidaire Rivet
NI	305309606 Frigidaire Oven Screw
NI	HARNESS, WIRING, MAIN
NI	305452800 Frigidaire Screw
NI	5304462994 Frigidaire Oven Screw
NI	5305511218 Frigidaire Ceramabryte C12 18O
3	387683500 Frigidaire Support
4	387683300 Frigidaire Bracket
5	5304518258 Frigidaire Bracket
6	387372900 Frigidaire SPRING
10	BOX, SUPPORT, INNER, ELEMENT
11	387812005 Frigidaire Light Assembly
12	387812006 Frigidaire Light Assembly
13	330447900 Frigidaire Oven Screw
14	SUPPORT, BEAM
15A	316282101 Frigidaire Oven Element
15B	316530001 Frigidaire Oven Element
15	A02843501 Frigidaire Element
16	305638976 Frigidaire Maintop
17	387174602 Frigidaire Oven Bracket
19	318389600 Frigidaire Bracket Assembly
20	BRACKET
35	5304515130 Frigidaire Refrigerator Bushing
46	BOX
