FGEC3068UBB 05 – MAIN TOP/SURFACE UNITS

FGEC3068UBB 05 – MAIN TOP/SURFACE UNITS

Written by

in

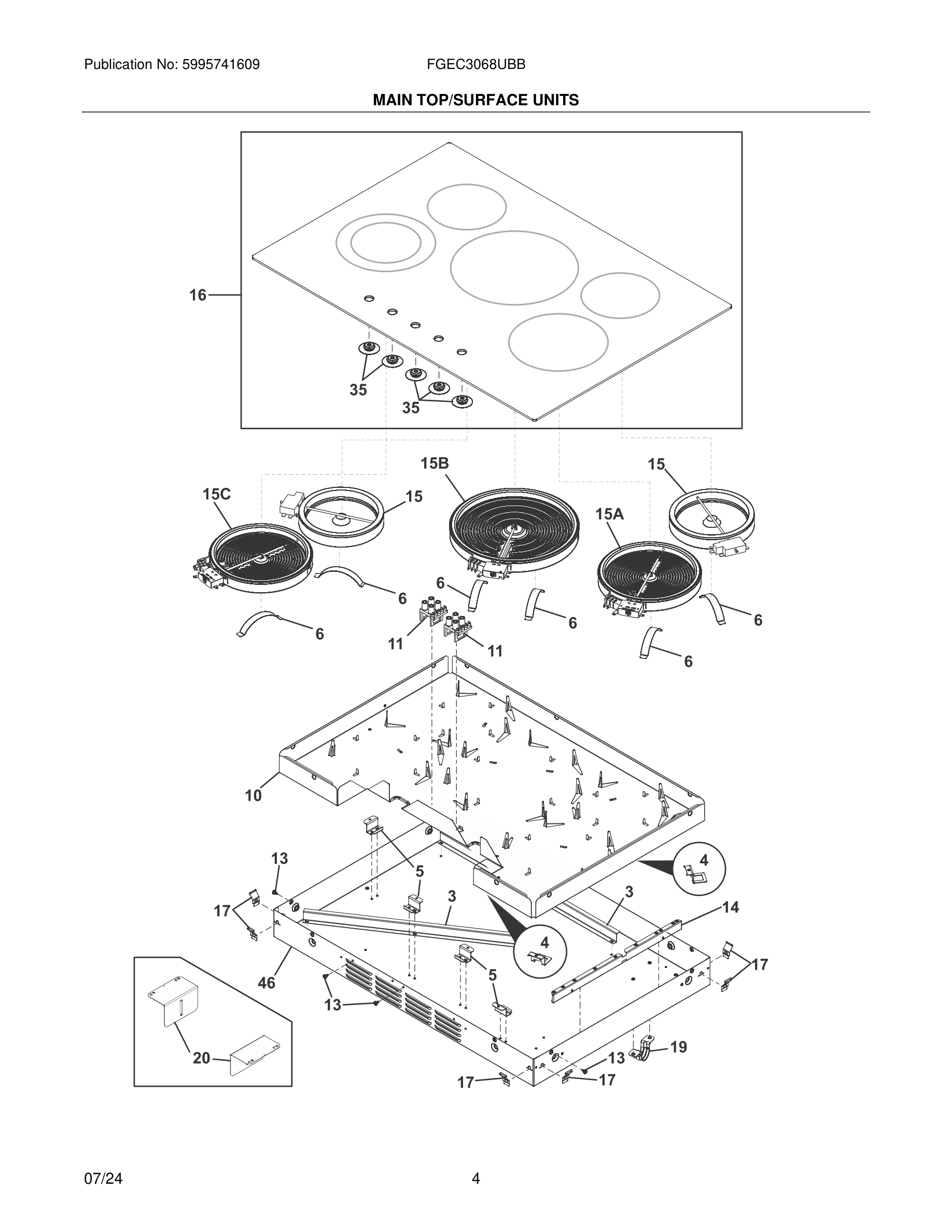

FGEC3068UBB 05 – MAIN TOP/SURFACE UNITS

Products

PositionProduct
*5308014215 Frigidaire Oven Screw
*305309606 Frigidaire Oven Screw
*305351200 Frigidaire Rivet
*#5304518271 Frigidaire Harness
*SCREW, (4)
*305452800 Frigidaire Screw
*202855101 Frigidaire Holder
*#Box and wires assy
*5305511218 Frigidaire Ceramabryte C12 18O
*5304462994 Frigidaire Oven Screw
3387683500 Frigidaire Support
4387683300 Frigidaire Bracket
55304518258 Frigidaire Bracket
6387372900 Frigidaire SPRING
10BOX, SUPPORT, INNER, ELEMENT
11#387812007 Frigidaire Light Assembly
13330447900 Frigidaire Oven Screw
14SUPPORT, BEAM
15B#316530001 Frigidaire Oven Element
15A#374063622 Frigidaire Oven Element
15#A02843501 Frigidaire Element
15C#318198952 Frigidaire Oven Element
16305638978 Frigidaire Oven Maintop
17387174602 Frigidaire Oven Bracket
19Bracket, conduit mtg.
20BRACKET
355304515130 Frigidaire Refrigerator Bushing
46Box, cooktop, outer
