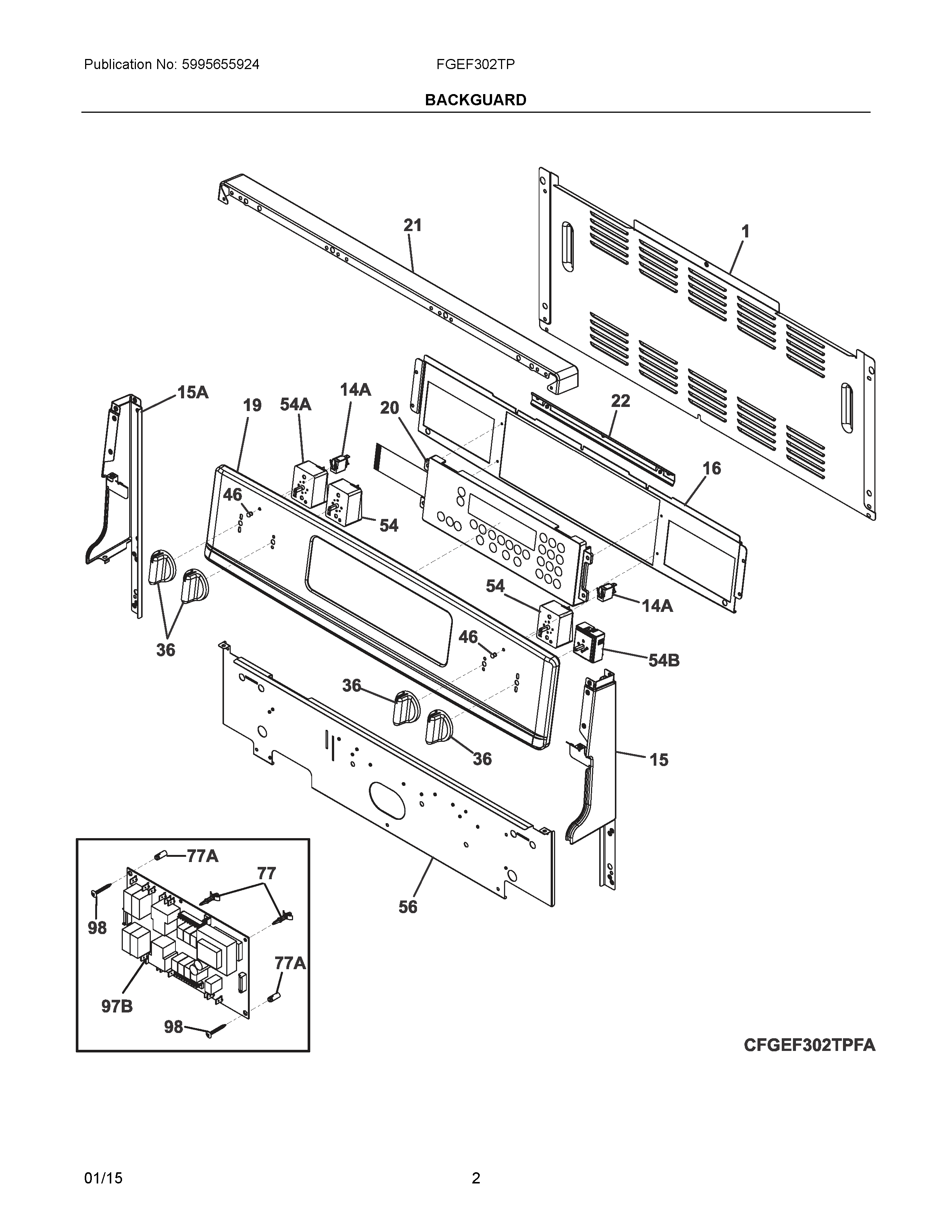

FGEF302TPBA 02 – BACKGUARD

FGEF302TPBA 02 – BACKGUARD

Written by

in

FGEF302TPBA 02 – BACKGUARD

Products

PositionProduct
NI316021105 Frigidaire Oven Screw
NI318578352 Frigidaire Harness
NIWCI 807705101
1WCI 316557600
14A316022500 Frigidaire Oven Warmer Drawer Zone Indicator Light Lamp
15A807437110 Frigidaire Endcap
15807437109 Frigidaire Endcap
16BRACKET, TIMER SUPPORT
19WCI 316572445
20139092903 Frigidaire Controller
21316546605 Frigidaire Oven Cap
22WCI 318573700
36WCI 316564402
46316557300 Frigidaire Range Indicator Light Lens
54B316238201 Frigidaire Oven Switch
54316436000 Frigidaire Oven Range Surface Element Switch
54A316436001 Frigidaire Oven Range Infinite Burner Switch
56SHIELD, BACKGUARD, BLACK, INNER
77316247900 Frigidaire Oven Spacer
77A316114100 Frigidaire Oven Spacer
97BWCI 316443947
985304401490 Frigidaire Oven Screw
