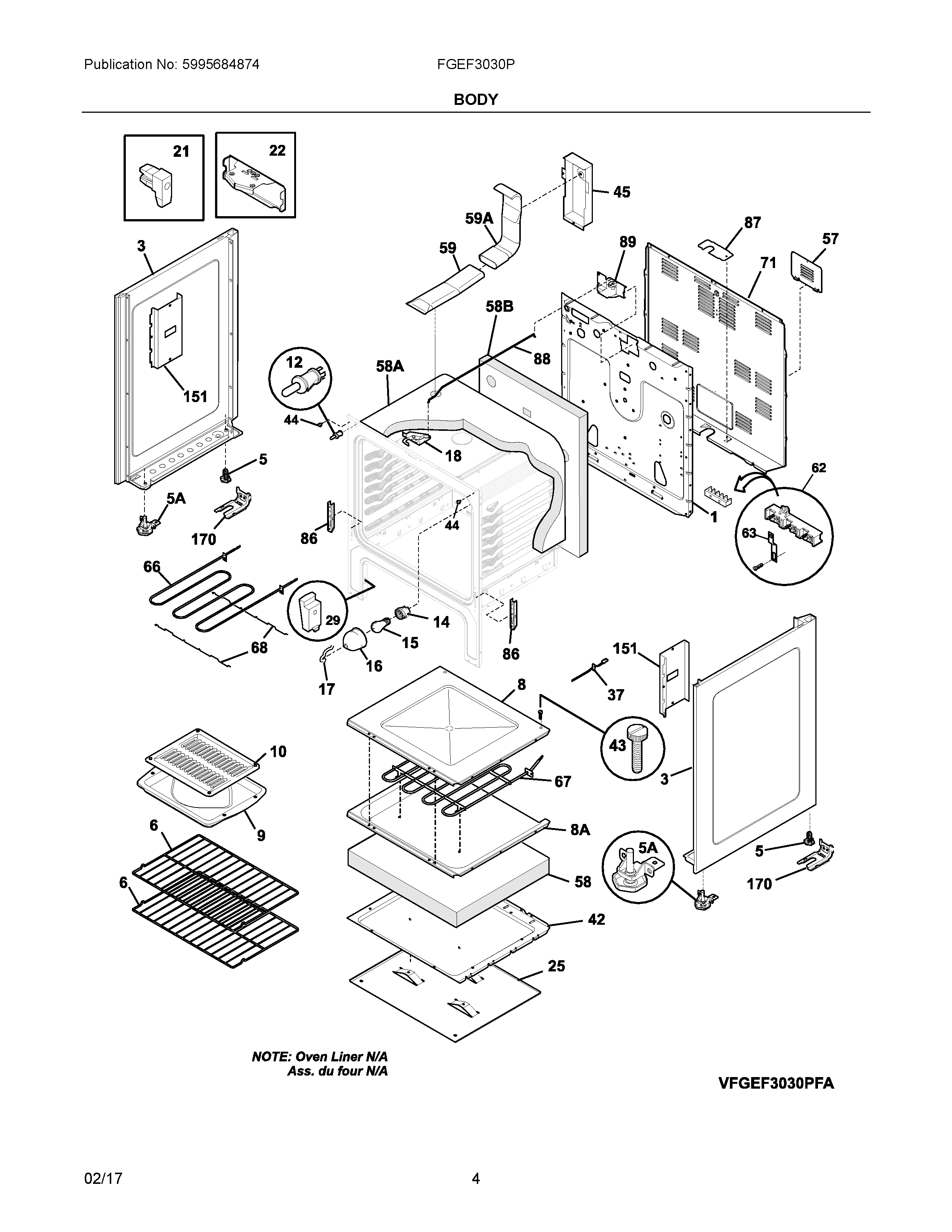

FGEF3030PWB 03 – BODY

FGEF3030PWB 03 – BODY

Written by

in

FGEF3030PWB 03 – BODY

Products

Position	Product
NI	316418900 Frigidaire Oven Screw
NI	316279600 Frigidaire Screw
NI	WCI 316580296
NIA	316112005 Frigidaire Oven Anti-Tip Range Bracket Kit
NI	316418901 Frigidaire Oven Screw
NI	316021132 Frigidaire Screw
NIB	316116000 Frigidaire Screw
NIA	316001017 Frigidaire Screw
NI	316089500 Frigidaire Oven Screw
NIB	316205500 Frigidaire Oven Nut
NIA	316064600 Frigidaire Oven Support
NI	5303289910 Frigidaire Oven Screw
NI	316542203 Frigidaire Insulator
NI	5303285179 Frigidaire Oven Door Screw
NI	316021105 Frigidaire Oven Screw
1	316401806 Frigidaire Panel
3A	316400143 Frigidaire Panel
3	316400142 Frigidaire Panel
5A	5304509869 Frigidaire Oven Leveling Leg Assembly
5	316272900 Frigidaire Oven Leg Levelling Plastic Screw
6	316496201 Frigidaire Oven Rack
8A	BASE, BAKE ELEMENT
8	316400601 Frigidaire Oven Range Bottom Panel
12	316445500 Frigidaire Oven Switch
14	316116400 Frigidaire Oven Light Socket
15	316538904 Frigidaire Oven Lamp Light
16	5304524341 Frigidaire Lens
17	316087500 Frigidaire Oven Retainer
18	316405800 Frigidaire Assembly Latch
21	316408000 Frigidaire Oven Clip Assembly
22	316286300 Frigidaire Bodyside Bracket
25	316406200 Frigidaire Oven Shield
29	807047102 Frigidaire Oven Front Drawer Glide
37	316490000 Frigidaire Oven Range Temperature Sensor
42	316407700 Frigidaire Oven Shield
43	316282700 Frigidaire Oven Screw
44	316517600 Frigidaire Oven Spacer
45	316234100 Frigidaire Oven Shield
57	316283600 Frigidaire Oven Cover
58A	316406602 Frigidaire Insulation
58B	316406500 Frigidaire Insulation
58	316403802 Frigidaire Insulation
59A	316208304 Frigidaire Oven Tube
59	316208401 Frigidaire Oven Vent Tube
62	5303935271 Frigidaire Oven Terminal Block
63A	5304536404 Frigidaire Strap
63	316278800 Frigidaire Oven Plate
66	BROIL ELEMENT
67	316413800 Frigidaire Oven Range Bake Element
68	316404002 Frigidaire Support Assembly
71	316283204 Frigidaire Oven Shield
86	316441300 Frigidaire Receptacle
87	316081200 Frigidaire Oven Bracket
88	316203500 Frigidaire Oven Rod
89	MOTOR
151	316404601 Frigidaire Oven Shield
