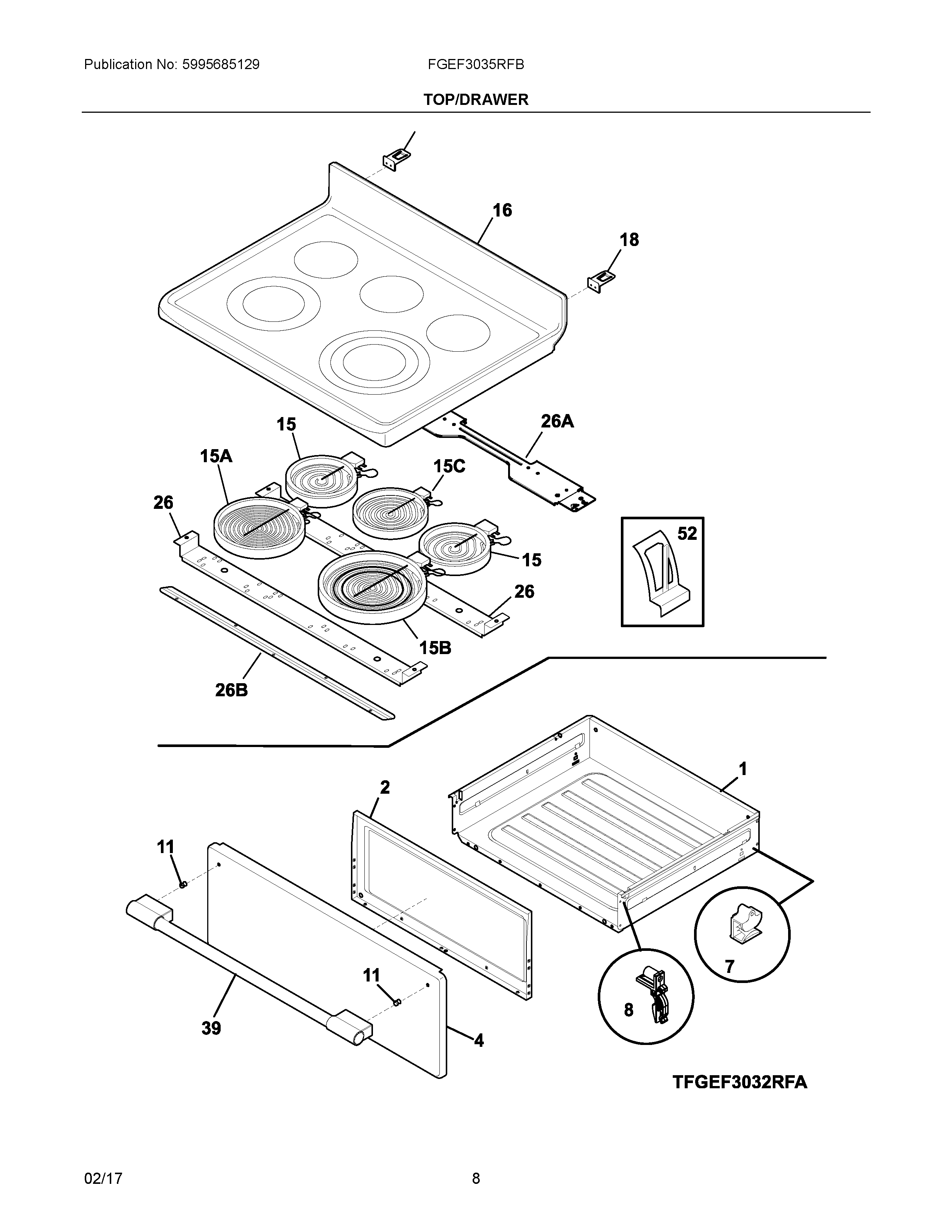

FGEF3035RFB 04 – TOP/DRAWER

FGEF3035RFB 04 – TOP/DRAWER

Written by

in

FGEF3035RFB 04 – TOP/DRAWER

Products

PositionProduct
NI316418901 Frigidaire Oven Screw
NI316418900 Frigidaire Oven Screw
NI316001017 Frigidaire Screw
NI316021132 Frigidaire Screw
NIA5308014215 Frigidaire Oven Screw
NI316580474 Frigidaire Oven Harness
NI316089500 Frigidaire Oven Screw
NI316021109 Frigidaire Oven Screw
NI5304414648 Frigidaire Oven Screw
NI316021105 Frigidaire Oven Screw
1316408706 Frigidaire Oven Drawer Assembly
25304527989 Frigidaire Liner
45304511907 Frigidaire Oven Panel
7316407402 Frigidaire Range Drawer Glide
85304490938 Frigidaire Glide Assembly
15A318178110 Frigidaire Oven Range 6" Surface Element
15316538904 Frigidaire Oven Lamp Light
15CELEMENT,RADIANT,100W,WARMER
15B316282101 Frigidaire Oven Element
15A5304533520 Frigidaire Element
16807038640 Frigidaire Oven Main Top
18316580800 Frigidaire Hinge Bracket
265304500986 Frigidaire Oven Channel
26A316498200 Frigidaire Oven Bracket
26B316607600 Frigidaire Bracket
39316554010 Frigidaire Stainless Steel Handle
435303285179 Frigidaire Oven Door Screw
52316461700 Frigidaire Oven Clip Assembly
60Screw,handle mtg. ,10-24 x 1.75“ ,(2)
