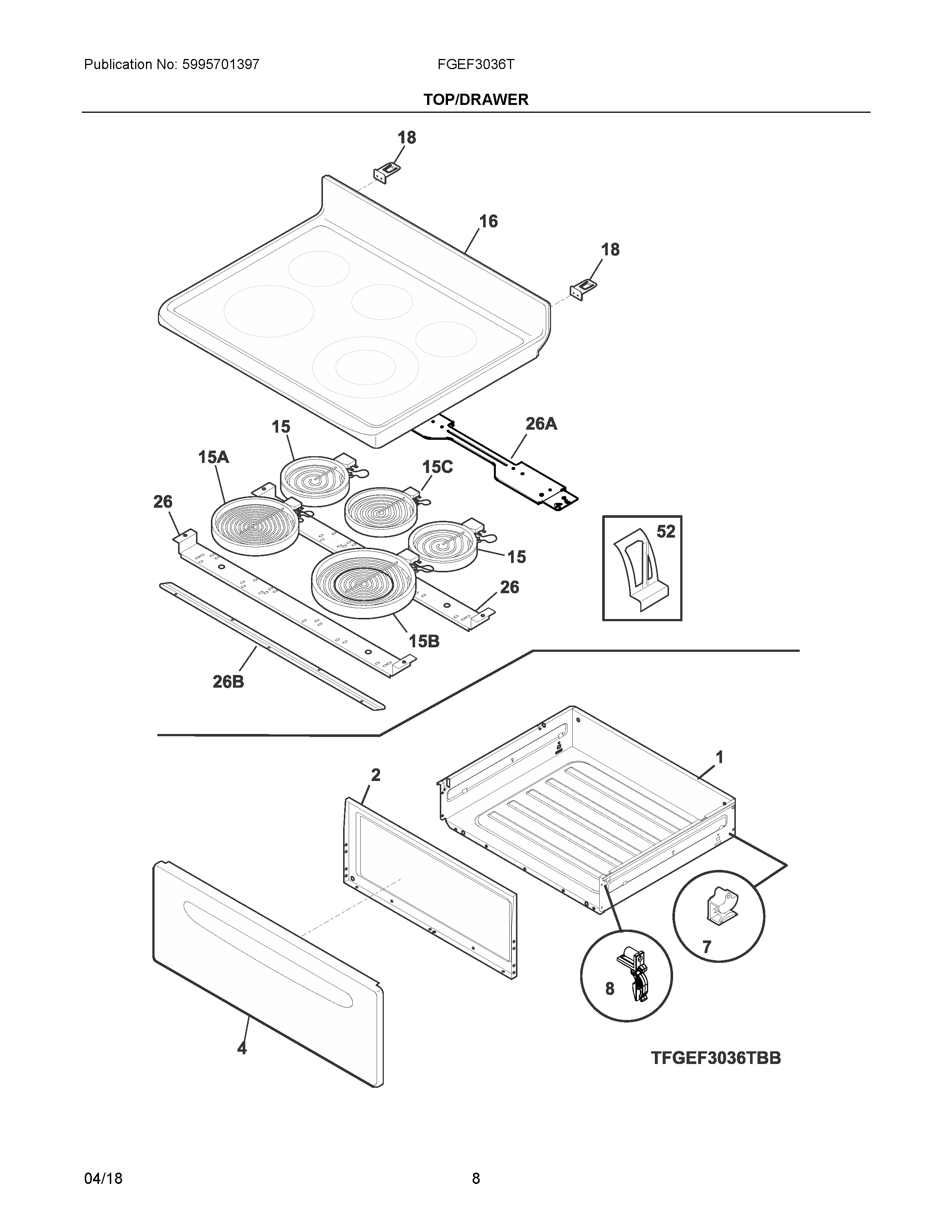

FGEF3036TBD 04 – TOP/DRAWER

Products

Position	Product
NI	316021105 Frigidaire Oven Screw
NI	316418901 Frigidaire Oven Screw
NI	HARNESS, SURFACE UNITS
NIA	5308014215 Frigidaire Oven Screw
NI	316089500 Frigidaire Oven Screw
NI	316021109 Frigidaire Oven Screw
1	316408706 Frigidaire Oven Drawer Assembly
2	5304527989 Frigidaire Liner
4	5304511974 Frigidaire Oven Panel
7	316407402 Frigidaire Range Drawer Glide
8	5304490938 Frigidaire Glide Assembly
15C	ELEMENT,RADIANT,100W,WARMER
15A	316530001 Frigidaire Oven Element
15B	316282103 Frigidaire Oven Element
15	318178110 Frigidaire Oven Range 6" Surface Element
16	5304513242 Frigidaire Oven Smooth Top Glass Range (Black)
18	316580800 Frigidaire Hinge Bracket
26B	316607600 Frigidaire Bracket
26	5304512926 Frigidaire Channel
26A	316498200 Frigidaire Oven Bracket
52	316461700 Frigidaire Oven Clip Assembly
