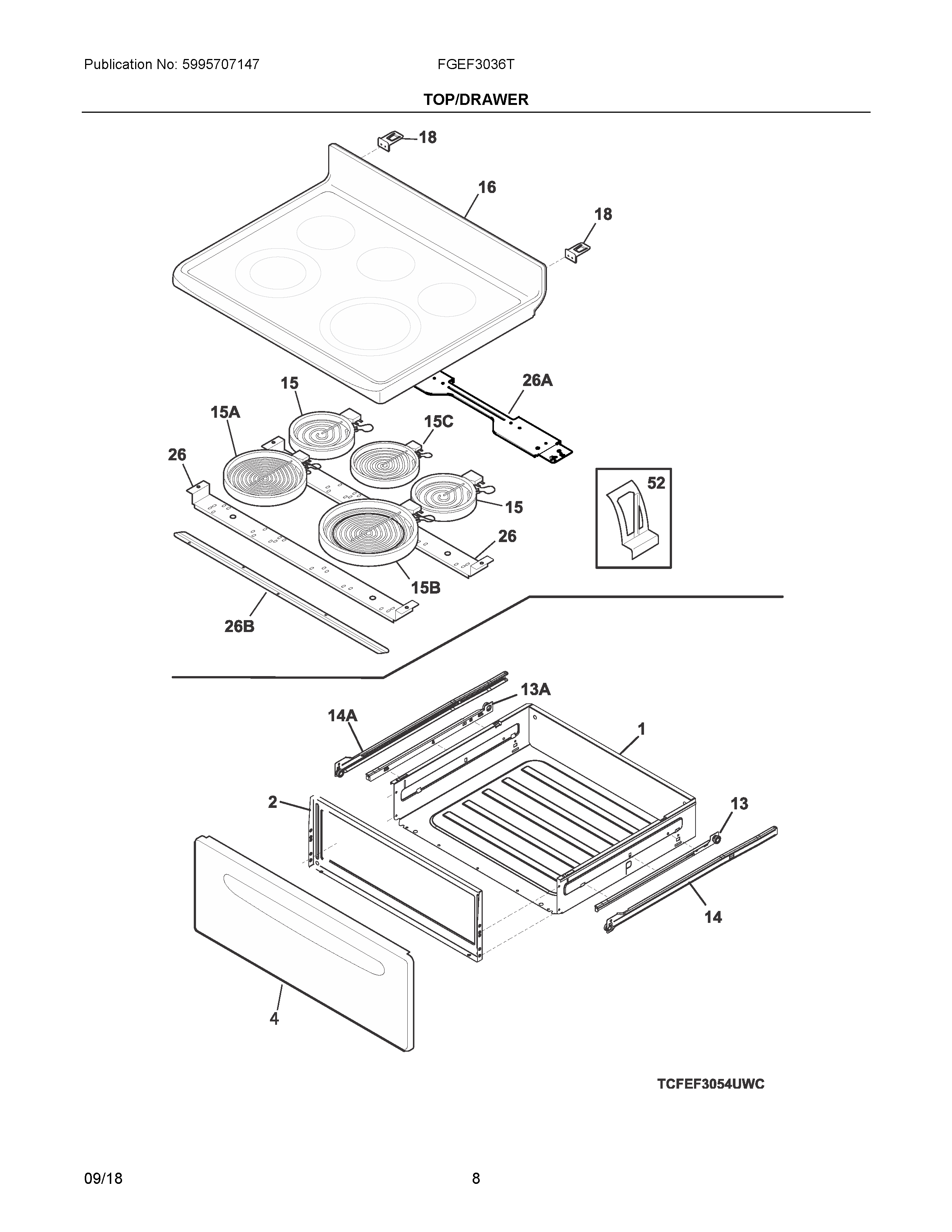

FGEF3036TWF 04 – TOP/DRAWER

Products

Position	Product
NI	316021105 Frigidaire Oven Screw
NI	5304516957 Frigidaire Oven Harness
NI	316418901 Frigidaire Oven Screw
NIA	5308014215 Frigidaire Oven Screw
NI	316089500 Frigidaire Oven Screw
NI	316021109 Frigidaire Oven Screw
1	316408706 Frigidaire Oven Drawer Assembly
2	5304527989 Frigidaire Liner
4	5304511973 Frigidaire Oven Panel
11	5304517906 Frigidaire Oven Bracket
13A	5304517903 Frigidaire Oven Glide Drawer
13	5304517905 Frigidaire Oven Inner Right Hand Drawer Glide (Black)
14A	5304517902 Frigidaire Oven Glide Drawer
14	5304517904 Frigidaire Oven Outer Right Hand Drawer Glide (Black)
15	318178110 Frigidaire Oven Range 6" Surface Element
15A	316530001 Frigidaire Oven Element
15B	316282103 Frigidaire Oven Element
15C	ELEMENT,RADIANT,100W,WARMER
16	5304513264 Frigidaire Smoothtop Cooktop
18	316580800 Frigidaire Hinge Bracket
26A	316498200 Frigidaire Oven Bracket
26B	316607600 Frigidaire Bracket
26	5304512926 Frigidaire Channel
52	316461700 Frigidaire Oven Clip Assembly
