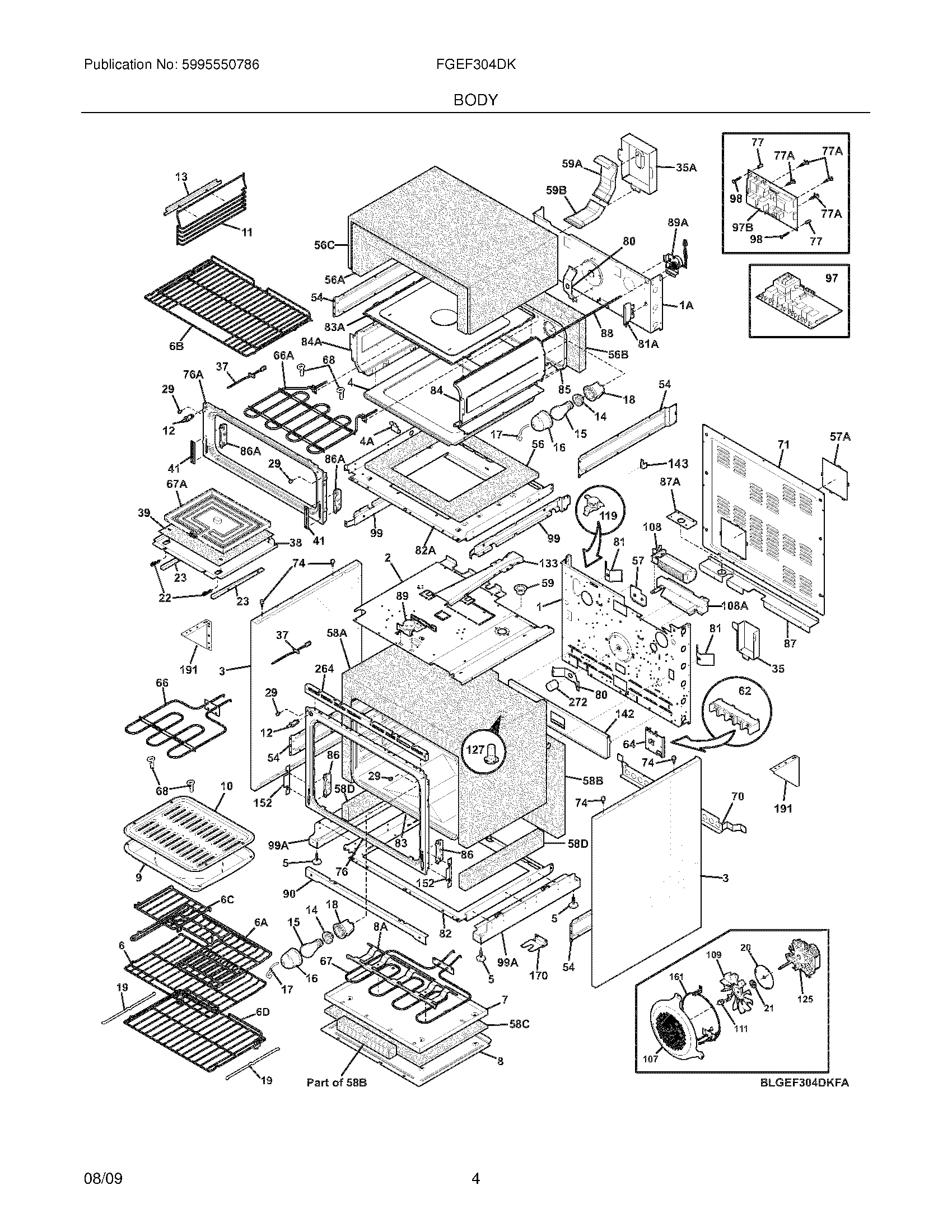

FGEF304DKBA 05 – BODY

FGEF304DKBA 05 – BODY

Written by

in

FGEF304DKBA 05 – BODY

Products

PositionProduct
1WCI 318259220
1AWCI 318259261
2WCI 318258960
3WCI 318299848
4WCI 318364111
4AWCI 318407200
5318175503 Frigidaire Screw with Bolt
5Screw,leveling ,w/tee nut
6DWCI 318921601
6WCI 318922304
6AWCI 318926802
6CWCI 318929702
6BWCI 318601905
7318297303 Frigidaire Oven Box
8318359500 Frigidaire Oven Panel
8A318313601 Frigidaire Oven Bracket
9WCI 316081900
10Insert,broiler panOPTIONAL ACCESS0RY
11WCI 318603810
12316445501 Frigidaire Oven Switch
13WCI 318603915
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
165304524341 Frigidaire Lens
17WCI 5304400195
18WCI 318222400
19WCI 318927600
20WCI 318389400
21318389000 Frigidaire Oven Seal
22318368300 Frigidaire PIN
23BRACKET, ELEMENT, (2)
29316517600 Frigidaire Oven Spacer
35WCI 318406500
35AWCI 318535000
37316217002 Frigidaire Oven Temperature Probe
38WCI 318361610
39WCI 318330501
41WCI 5303310526
54WCI 318535400
56CWCI 318235715
56AWCI 318362132
56BWCI 318362134
56807163401 Frigidaire Insulation
57WCI 318402800
57AWCI 318407100
58AWCI 318362133
58C318294912 Frigidaire Insullation
58D318372018 Frigidaire Insulation
58BWCI 318285079
59318072577 Frigidaire Duct
59AWCI 318408203
59BWCI 318408401
625304409888 Frigidaire Oven Terminal Block with Hardware
64WCI 318561801
66AWCI 318255854
66WCI 318255801
67AWCI 318601601
67WCI 318254912
685304403015 Frigidaire Oven Support
70WCI 318565000
71WCI 318405401
74WCI 318141910
76AWCI 318056261
76AWCI 318373810
76WCI 318056292
77A316114100 Frigidaire Oven Spacer
77316247900 Frigidaire Oven Spacer
80WCI 5303320846
81WCI 318192400
81AWCI 318373700
82AWCI 318258780
82WCI 318258779
83AWCI 318364211
83WCI 318261734
84AWCI 318364324
84WCI 318364323
85WCI 318364425
86AWCI 318342400
86318561100 Frigidaire Receptacle
87WCI 318405500
87AWCI 318111806
88WCI 318250206
89318261226 Frigidaire Oven Motor
89A318095967 Frigidaire Oven Motor
90318405203 Frigidaire Oven Trim
97B316443931 Frigidaire Oven Board
97316442112 Frigidaire Oven Control Board
985304401490 Frigidaire Oven Screw
99WCI 318252804
99AWCI 318256210
107WCI 318219405
108318073028 Frigidaire Oven Motor
108WCI 318251300
109318398302 Frigidaire Stove Oven Range Convection Motor Fan Blade
111316136600 Frigidaire Oven Range Lock Nut
119318004902 Frigidaire Oven Switch
1255304463302 Frigidaire Convection Motor
127WCI 318357001
133WCI 318347800
142WCI 318123910
143318172904 Frigidaire Bracket
152WCI 31833852
