FGEF306TPFB 03 – BODY

FGEF306TPFB 03 – BODY

Written by

in

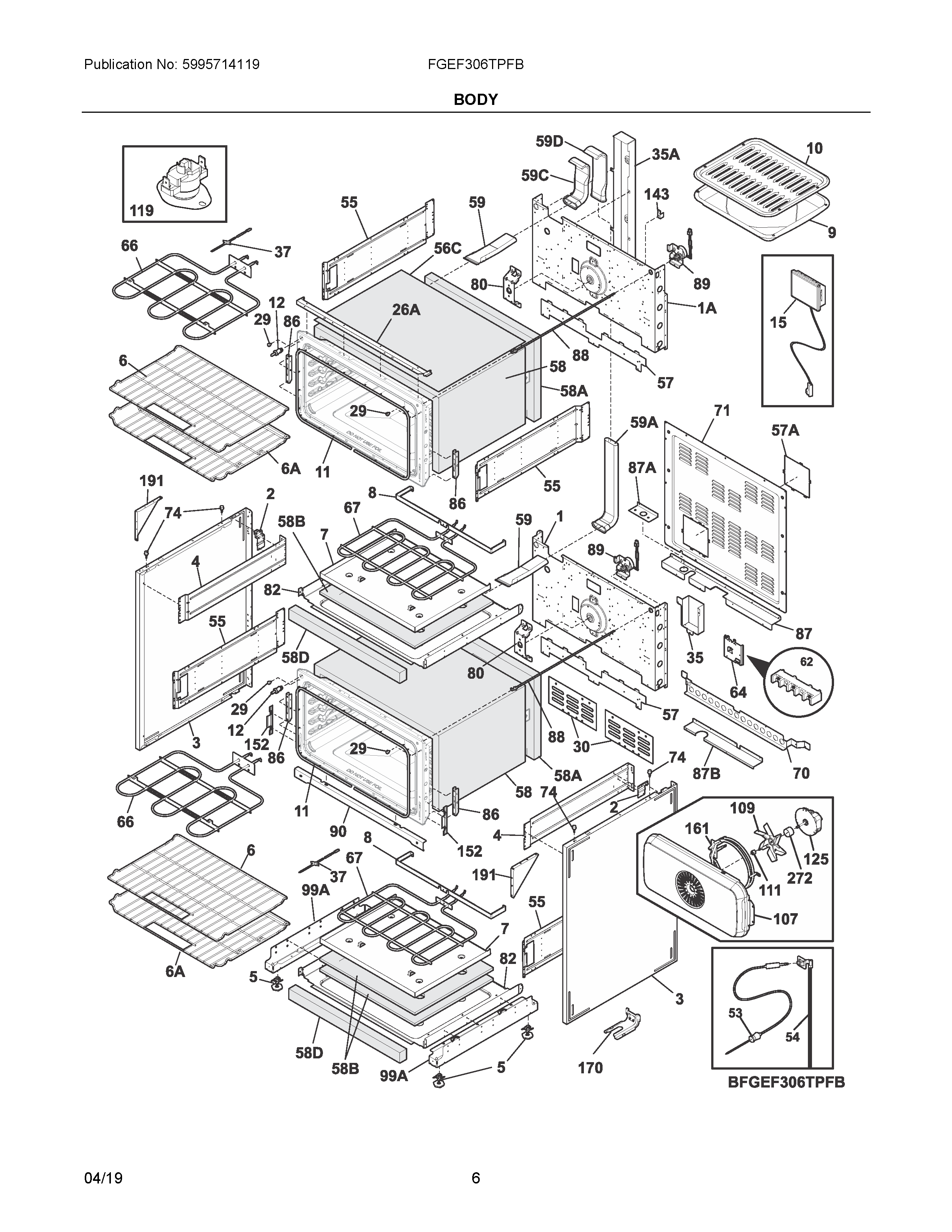

FGEF306TPFB 03 – BODY

Products

PositionProduct
NI316021105 Frigidaire Oven Screw
NIC5304436864 Frigidaire WASHER
NIA316247300 Frigidaire Oven Catalyst
NIWCI 5304500102
NI807597603 Frigidaire Oven Screw
NIWCI 809036701
NIA318946400 Frigidaire Oven Bulb
NIAWCI 807504601
NIC5304536404 Frigidaire Strap
NIA316418900 Frigidaire Oven Screw
NI318235301 Frigidaire Assembly Connector
NIA318167300 Frigidaire Clip
NIWCI 316581300
NIB316205500 Frigidaire Oven Nut
NI5304517285 Frigidaire Assembly Harness
NIA316247900 Frigidaire Oven Spacer
NIA316001017 Frigidaire Screw
NI316021109 Frigidaire Oven Screw
NIB5303311164 Frigidaire Oven Spring
NI5303289910 Frigidaire Oven Screw
1ABACK, MAIN, UPPER OVEN
1BACK, MAIN, LOWER OVEN
2WCI 807251601
3807226106 Frigidaire Range Black Side Body Panel
4WCI 807251501
5Screw,leveling ,w/tee nut
65304514983 Frigidaire Oven Rack
6A139012400 Frigidaire Oven Rack
7BOX, BAKE ELEMENT
8SHIELD, HIDDEN BAKE, REAR
9318138801 Frigidaire Oven Pan
10316082001 Frigidaire Oven Insert
11139098502 Frigidaire Oven Seal
12316445500 Frigidaire Oven Switch
15WCI 139001800
26ABRACKET, MOUNTING, BLACK, MAINTOP
29316517600 Frigidaire Oven Spacer
305304496125 Frigidaire Shield
35ACOVER, VENT TUBE
35WCI 318406500
37SENSOR
535304504202 Frigidaire Red Meat Temperature Probe
54139017203 Frigidaire Assembly Receptacle
55Bracket,support ,side ,(2)
56CWCI 318641700
57AWCI 318407100
57PANEL, SERVICE
58BINSULATION, HIDDEN BAKE, BOTTOM
58DINSUALTION, HIDDEN BAKE, FRONT
58AINSUALTION, BACK
58INSULATION, WRAPPER, TOP & SIDES
59DVENT TUBE, LOWER OVEN, UPPER
59AVENT TUBE, LOWER OVEN, LOWER
59CVENT TUBE, UPPER OVEN, BLACK
59316208401 Frigidaire Oven Vent Tube
625304409888 Frigidaire Oven Terminal Block with Hardware
64WCI 318561801
665304521498 Frigidaire Element
67139211601 Frigidaire Oven Element
70WCI 318565000
71WCI 318405404
74WCI 318141910
80139021101 Frigidaire Bracket Assembly
82WCI 139024700
86318561100 Frigidaire Receptacle
87BWCI 807544201
87WCI 318405500
87AWCI 318111806
88WCI 318250207
89318095967 Frigidaire Oven Motor
90318405203 Frigidaire Oven Trim
99AWCI 318256210
1075304494168 Frigidaire Oven Cover
109318398302 Frigidaire Stove Oven Range Convection Motor Fan Blade
111316136600 Frigidaire Oven Range Lock Nut
119318004902 Frigidaire Oven Switch
125139008500 Frigidaire Oven Motor
143318172904 Frigidaire Bracket
152WCI 318338520
161139006502 Frigidaire Oven Element
170ANTI TIP KIT, ASSEMBLY, W/TEMPLATE
191WCI 318322801
272139021700 Frigidaire Oven Tube
