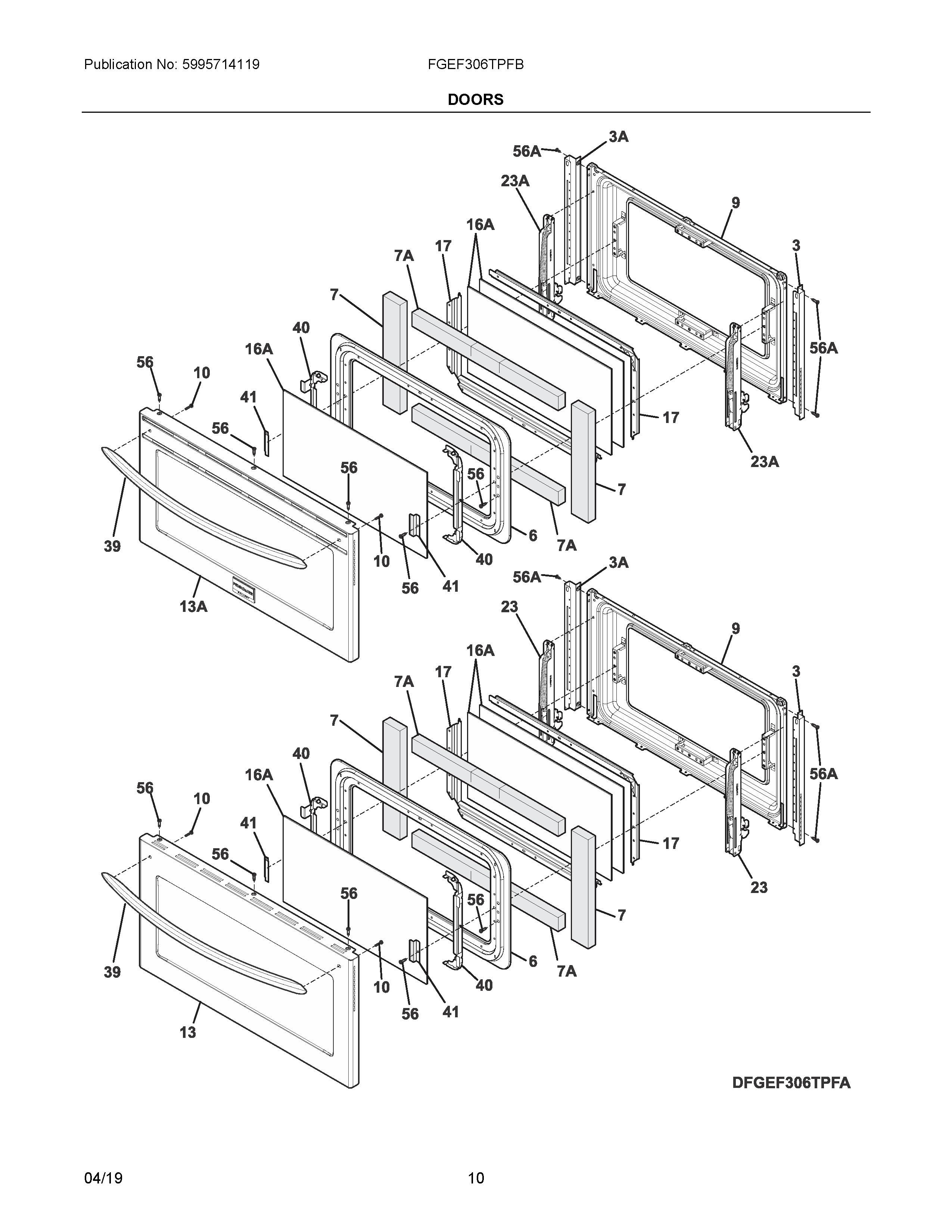

FGEF306TPFB 05 – DOORS

FGEF306TPFB 05 – DOORS

Written by

in

FGEF306TPFB 05 – DOORS

Products

PositionProduct
NI318165800 Frigidaire Oven Door Glass Spacer with Screw
NI316483102 Frigidaire Oven Label
NI316418900 Frigidaire Oven Screw
3TRIM, DOOR SIDE, BLACK, RH
3ATRIM, DOOR SIDE, BLACK, LH
6SHIELD, WOOL
7AWCI 808949801
7318372017 Frigidaire Insulation
9LINER, DOOR
105304414648 Frigidaire Oven Screw
13ADOOR ASSEMBLY, OUTER, STAINLESS/BLACK, UPPER OVEN, W/BADGE
13DOOR ASSEMBLY, OUTER, STAINLESS/BLACK, LOWER OVEN
16AWCI 318212216
17807045802 Frigidaire Spacer
23AHINGE, OVEN DOOR, LIGHT GREEN, UPPER
23HINGE, OVEN DOOR, LIGHT GREEN, LOWER
39316554010 Frigidaire Stainless Steel Handle
40WCI 318642900
41318370602 Frigidaire Oven Bracket
56316021109 Frigidaire Oven Screw
