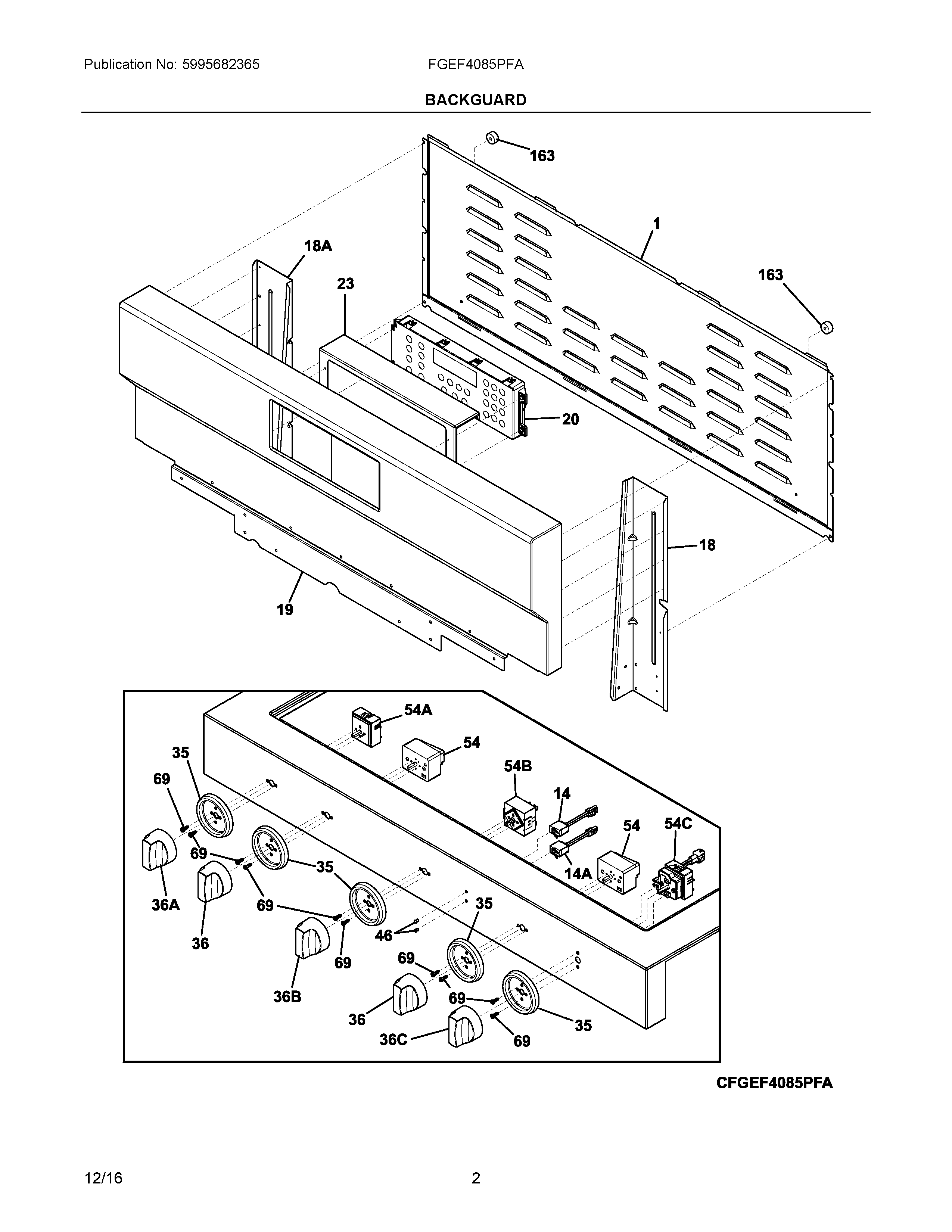

FGEF4085PFA 02 – BACKGUARD

Products

PositionProduct
NI316021105 Frigidaire Oven Screw
NI5304508558 Frigidaire Oven Harness
NI316021109 Frigidaire Oven Screw
1PANEL, REAR COVER, UPPER
14LIGHT, INDICATOR, NEON, 125V, W/JST CONNECTOR
14ALIGHT, INDICATOR, NEON, 125V, W/AMP CONNECTOR
18ABRACKET, SUPPORT, LH
18BRACKET, SUPPORT, RH
19PANEL, BACKGUARD, STAINLESS
20CONTROL ASSEMBLY, ELECTRONIC, ES536W1, BLACK, W/TOUCH PAD
23BRACKET, CONTROL MTG.
35808312201 Frigidaire Skirt
36A5304508562 Frigidaire Knob
36B5304508560 Frigidaire Knob
36C5304508563 Frigidaire Oven Knob
365304508561 Frigidaire Oven Knob
46316557300 Frigidaire Range Indicator Light Lens
54C5304490134 Frigidaire Oven Switch
54316436000 Frigidaire Oven Range Surface Element Switch
54A316238201 Frigidaire Oven Switch
54B5304508926 Frigidaire Oven Temperature Control Switch
695304491110 Frigidaire Screw
163318531700 Frigidaire Oven Spacer
