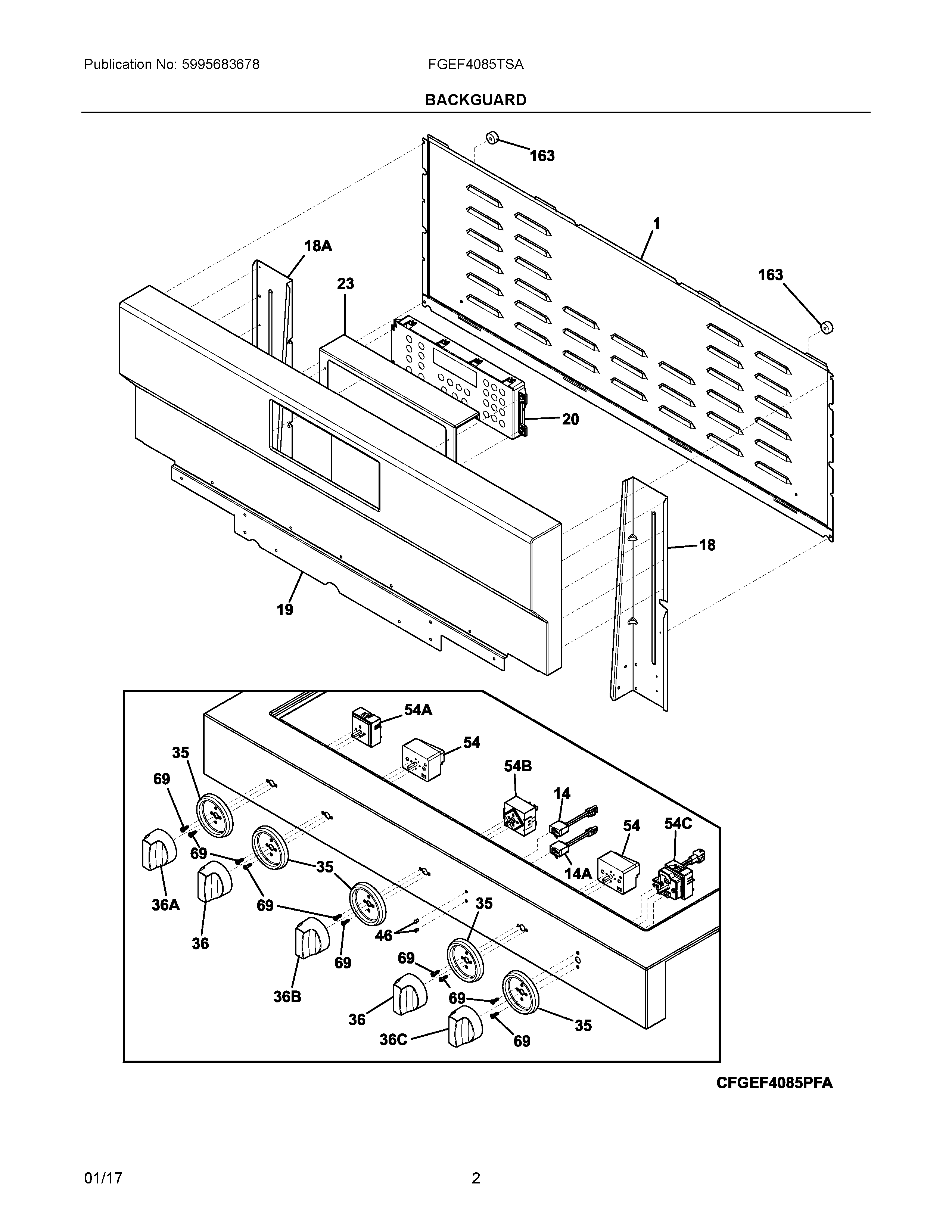

FGEF4085TSA 02 – BACKGUARD

Products

Position	Product
NI	316021105 Frigidaire Oven Screw
NI	5304508558 Frigidaire Oven Harness
NI	316021109 Frigidaire Oven Screw
1	PANEL, REAR COVER, UPPER
14	LIGHT, INDICATOR, NEON, 125V, W/JST CONNECTOR
14A	LIGHT, INDICATOR, NEON, 125V, W/AMP CONNECTOR
18A	BRACKET, SUPPORT, LH
18	BRACKET, SUPPORT, RH
19	PANEL, BACKGUARD, STAINLESS
20	CONTROL ASSEMBLY, ELECTRONIC, ES536W1, BLACK, W/TOUCH PAD
23	BRACKET, CONTROL MTG.
35	808312201 Frigidaire Skirt
36A	5304508562 Frigidaire Knob
36B	5304508560 Frigidaire Knob
36C	5304508563 Frigidaire Oven Knob
36	5304508561 Frigidaire Oven Knob
46	316557300 Frigidaire Range Indicator Light Lens
54C	5304490134 Frigidaire Oven Switch
54	316436000 Frigidaire Oven Range Surface Element Switch
54A	316238201 Frigidaire Oven Switch
54B	5304508926 Frigidaire Oven Temperature Control Switch
69	5304491110 Frigidaire Screw
163	318531700 Frigidaire Oven Spacer
