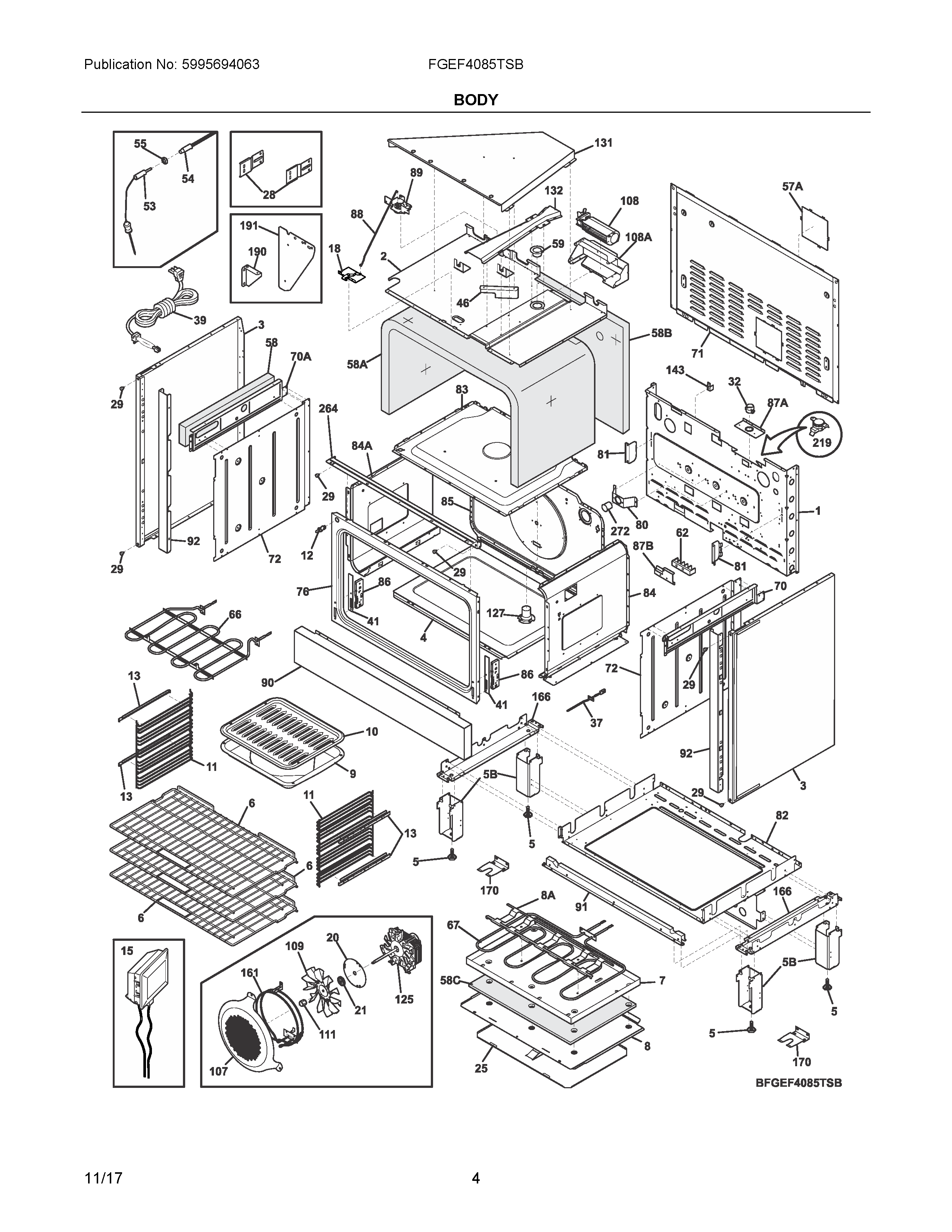

FGEF4085TSB 03 – BODY

FGEF4085TSB 03 – BODY

Written by

in

FGEF4085TSB 03 – BODY

Products

PositionProduct
NI316021105 Frigidaire Oven Screw
NIA5303310510 Frigidaire Oven Screw
NIA318165800 Frigidaire Oven Door Glass Spacer with Screw
NI5304517285 Frigidaire Assembly Harness
NIA318946400 Frigidaire Oven Bulb
NIBWCI 5304463707
NIA5304514913 Frigidaire Harness
NIWCI 5304508555
NIAWCI 318373001
NIAWCI 5304481623
NI807597603 Frigidaire Oven Screw
NIB316205500 Frigidaire Oven Nut
NIBWCI 5304508569
NIAWCI 5304504339
NIAScrew,cup pt ,8-18 x 0.375 ,chrome
NI316021109 Frigidaire Oven Screw
NIA316001017 Frigidaire Screw
NI5303289910 Frigidaire Oven Screw
NICWCI 316542202
1WCI 318259255
2WCI 318258955
3PANEL, BODYSIDE, BLACK
4LINER, OVEN BOTTOM, SLATE BLUE
5BBRACKET, LEVELING LEG, (4)
5318175506 Frigidaire Oven Screw
6808713929 Frigidaire Rack Assembly
7WCI 318297350
8PANEL, SERVICE
8AWCI 318313605
9316081902 Frigidaire Oven Pan
10316082002 Frigidaire Oven Insert Assembly
11808713925 Frigidaire Ladder Assembly
12808136601 Frigidaire Oven Switch
13318603908 Frigidaire Oven Bracket
15WCI 139001800
18316405800 Frigidaire Assembly Latch
20WCI 318389400
21318389000 Frigidaire Oven Seal
25318291900 Frigidaire Bracket Assembly
28BRACKET, LOWER BODY, SIDE, (2)
29316517600 Frigidaire Oven Spacer
32BUSHING, POWER CORD, SNAP TIE
37SENSOR
39CORD, RANGE POWER, 4 WIRE
40SHIELD, CORD
415304517729 Frigidaire Oven Spacer
46WCI 318258906
535304504202 Frigidaire Red Meat Temperature Probe
54RECEPTACLE, PROBE
55316247700 Frigidaire Oven Nut
57AWCI 318407100
58BINSULATION, OVEN BACK
58CWCI 318294913
58AINSULATION, OVEN WRAPPER
58INSULATION, OVEN WRAPPER, EXTENSIONS
59318072577 Frigidaire Duct
625304409888 Frigidaire Oven Terminal Block with Hardware
66318255851 Frigidaire Element
67318254905 Frigidaire Oven Element
70WCI 807309401
70AWCI 807309402
71WCI 5304508552
72WCI 318259151
76WCI 318364904
80WCI 318364800
81WCI 318373700
82WCI 318258788
83WCI 318364251
84AWCI 318364376
84WCI 318364381
85WCI 318364482
86318241406 Frigidaire Receptacle
87AWCI 318111806
87B5304508575 Frigidaire Bracket
88WCI 318376500
89MOTOR
90807340201 Frigidaire Oven Panel
91318376300 Frigidaire Bracket
92WCI 807327504
107318906601 Frigidaire Oven Cover
108318073028 Frigidaire Oven Motor
108AWCI 5304508574
109318398302 Frigidaire Stove Oven Range Convection Motor Fan Blade
111316136600 Frigidaire Oven Range Lock Nut
1255304463302 Frigidaire Convection Motor
127WCI 318357002
131WCI 808220301
132WCI 318347800
143318172904 Frigidaire Bracket
161318255511 Frigidaire Oven Heating Element
166WCI 318352550
170WCI 316112006
190WCI 318368404
191WCI 5304508570
219318004902 Frigidaire Oven Switch
264WCI 318257753
272318249411 Frigidaire Tube
