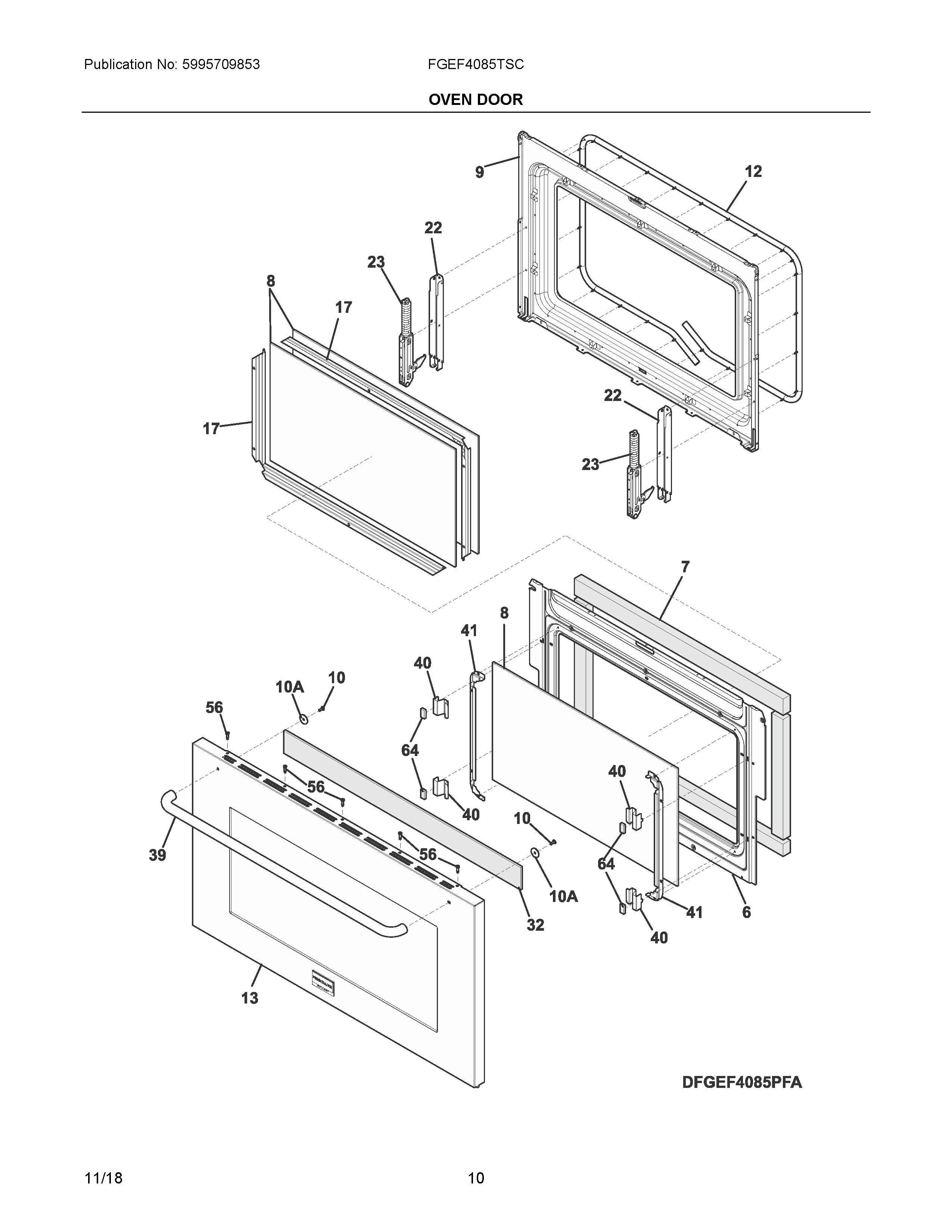

FGEF4085TSC 05 – OVEN DOORadmin2025-04-26T10:56:23+00:00FGEF4085TSC 05 – OVEN DOOR
Products
| Position | Product |
|---|
| NI | 316483102 Frigidaire Oven Label |
| NIA | 807597603 Frigidaire Oven Screw |
| NI | 316355104 Frigidaire INSULATION |
| 6 | BAFFLE, DOOR |
| 7 | 807354901 Frigidaire Insulation Assembly |
| 8 | 318212250 Frigidaire Oven Glass |
| 9 | 318364602 Frigidaire Oven Liner |
| 10 | WCI 5304437044 |
| 10A | WASHER, HANDLE SCREW |
| 12 | SEAL, OVEN DOOR |
| 13 | 5304509012 Frigidaire Assembly Door |
| 17 | SPACER, DOOR GLASS, (2) |
| 22 | 318353803 Frigidaire Oven Retainer |
| 23 | 318244307 Frigidaire Hinge Assembly |
| 32 | INSULATION, DOOR SKIN |
| 39 | HANDLE, DOOR, STAINLESS |
| 40 | BRACKET, GLASS, (4) |
| 41 | BRACKET, GLASS RETAINER |
| 56 | 316021109 Frigidaire Oven Screw |
| 64 | 318165800 Frigidaire Oven Door Glass Spacer with Screw |
