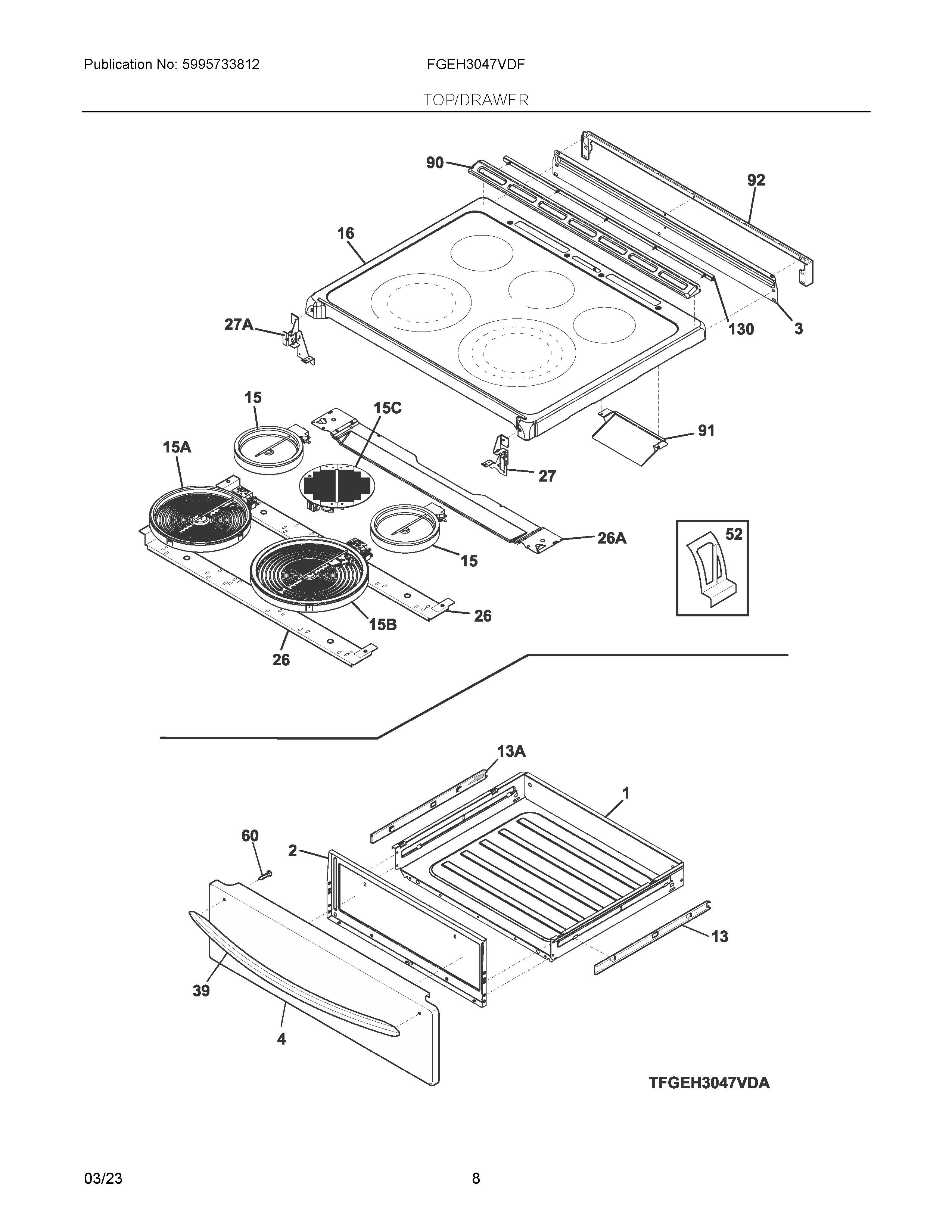

FGEH3047VDF 04 – TOP/DRAWER

FGEH3047VDF 04 – TOP/DRAWER

Products

PositionProduct
NI5303285179 Frigidaire Oven Door Screw
NI5304516837 Frigidaire Harness
NIA5308014215 Frigidaire Oven Screw
NI316089500 Frigidaire Oven Screw
NI316021109 Frigidaire Oven Screw
NI316021105 Frigidaire Oven Screw
1807108405 Frigidaire Drawer
25304527988 Frigidaire Liner
35304514133 Frigidaire Oven Shield
45304517133 Frigidaire Oven Panel
13316415000 Frigidaire Oven Glide
13A316415001 Frigidaire Oven Glide
15C5304521951 Frigidaire Element
15B318297810 Frigidaire Oven Triple Radiant Burner Element
15A5304533521 Frigidaire Element Assembly
15318178110 Frigidaire Oven Range 6" Surface Element
165304516852 Frigidaire Oven Maintop Glass
265304512926 Frigidaire Channel
26ABRACKET, SUPPORT, REAR, CHASSIS
27A5304514124 Frigidaire Bracket
275304514123 Frigidaire Bracket
395304518030 Frigidaire Handle
52316461700 Frigidaire Oven Clip Assembly
605304414648 Frigidaire Oven Screw
905304514157 Frigidaire Oven Trim
915304514181 Frigidaire Deflector Assembly
925304520261 Frigidaire Rear Filler Kit
130808931802 Frigidaire Oven Seal
