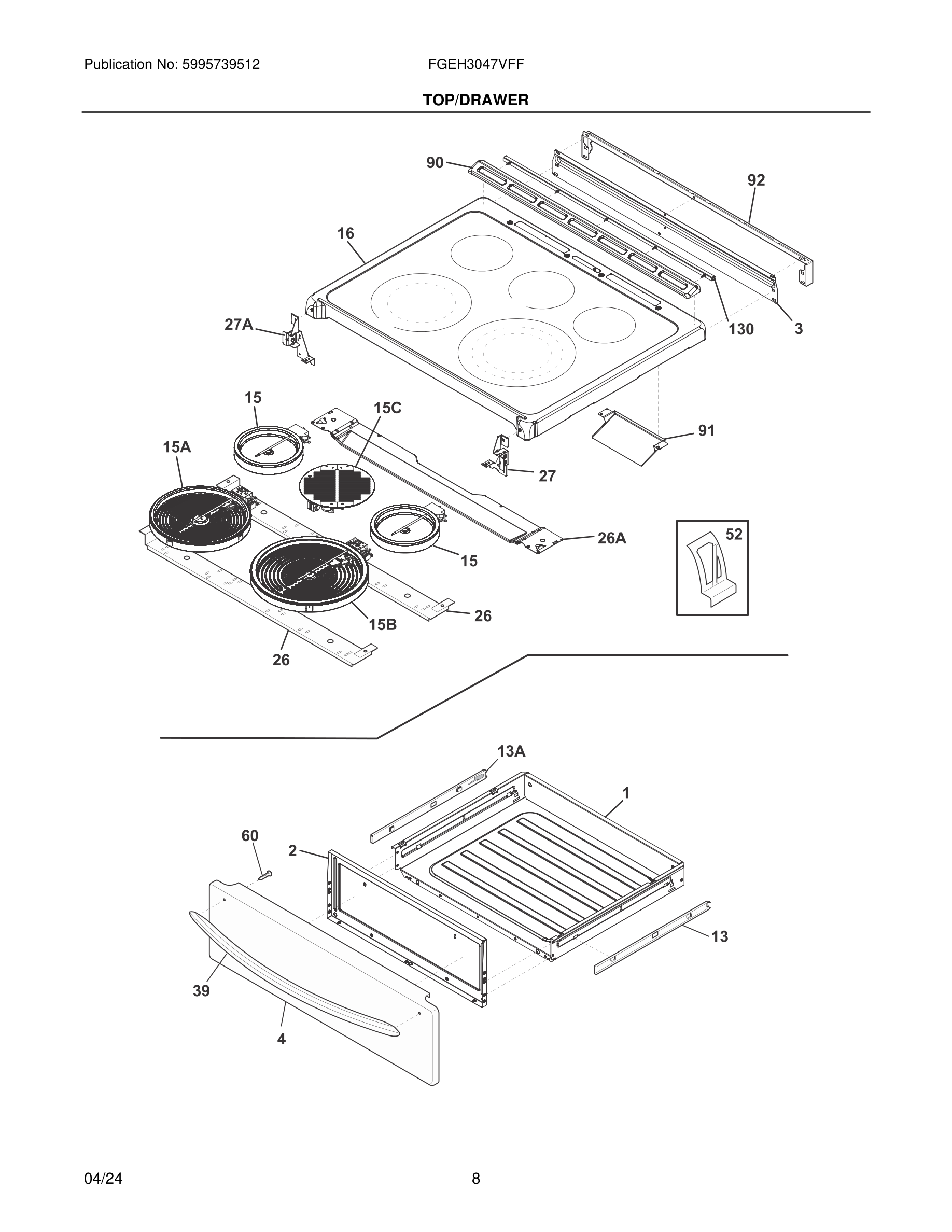

FGEH3047VFF 09 – TOP/DRAWER

FGEH3047VFF 09 – TOP/DRAWER

Written by

in

FGEH3047VFF 09 – TOP/DRAWER

Products

PositionProduct
*5303285179 Frigidaire Oven Door Screw
*#5304516837 Frigidaire Harness
*316089500 Frigidaire Oven Screw
*316021109 Frigidaire Oven Screw
*316021105 Frigidaire Oven Screw
1807108405 Frigidaire Drawer
25304527988 Frigidaire Liner
35304514133 Frigidaire Oven Shield
45304517477 Frigidaire Oven Panel
13A316415001 Frigidaire Oven Glide
13316415000 Frigidaire Oven Glide
15C#5304521951 Frigidaire Element
15A#5304533521 Frigidaire Element Assembly
15B#318297810 Frigidaire Oven Triple Radiant Burner Element
15#318178110 Frigidaire Oven Range 6" Surface Element
165304516852 Frigidaire Oven Maintop Glass
265304512926 Frigidaire Channel
26ABRACKET, SUPPORT, REAR, CHASSIS
27A5304514124 Frigidaire Bracket
275304514123 Frigidaire Bracket
39316554010 Frigidaire Stainless Steel Handle
52316461700 Frigidaire Oven Clip Assembly
52*5308014215 Frigidaire Oven Screw
605304414648 Frigidaire Oven Screw
905304514157 Frigidaire Oven Trim
915304514181 Frigidaire Deflector Assembly
925304520261 Frigidaire Rear Filler Kit
130808931802 Frigidaire Oven Seal
