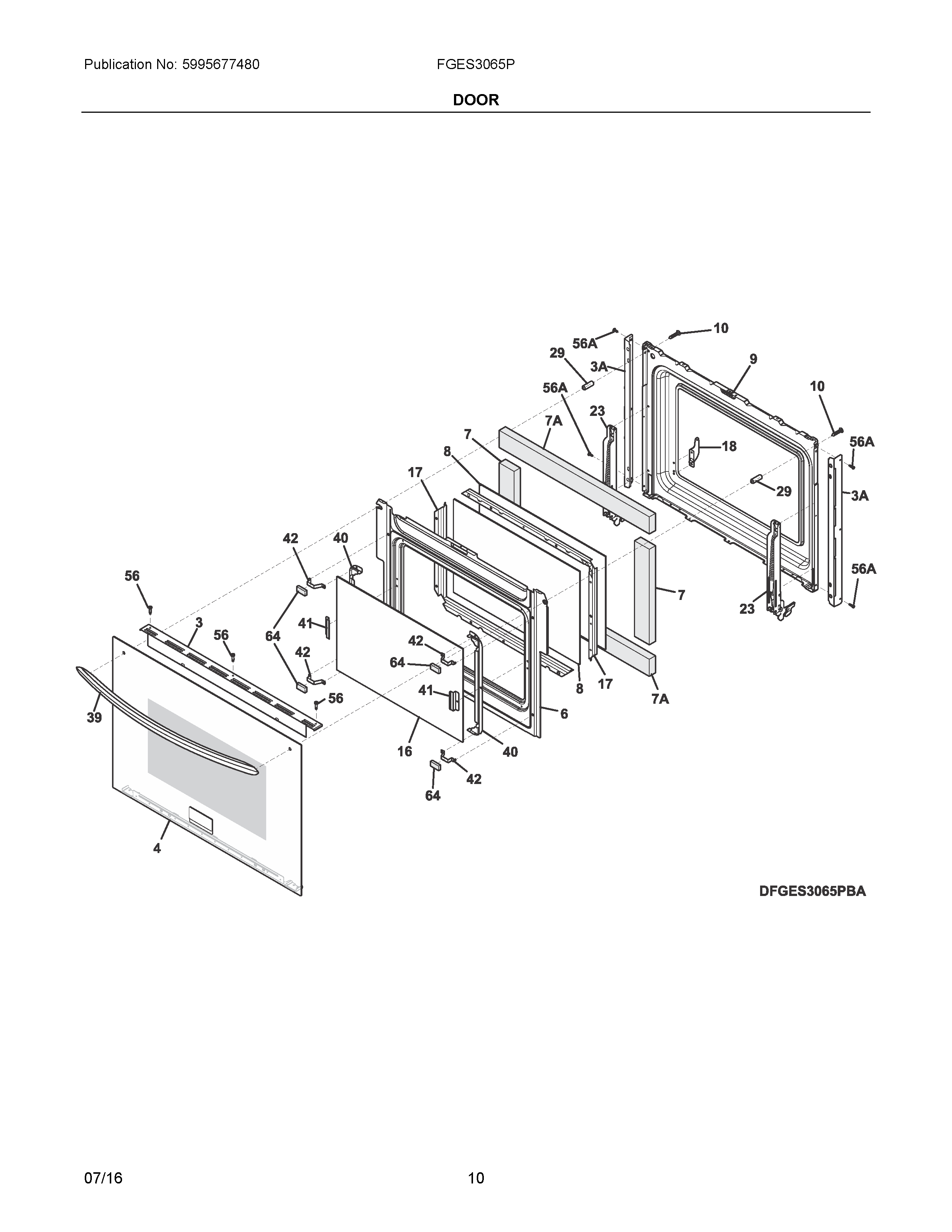

FGES3065PWJ 05 – DOOR

Products

PositionProduct
NIA316418900 Frigidaire Oven Screw
NI316483102 Frigidaire Oven Label
NI316021109 Frigidaire Oven Screw
3139023301 Frigidaire Oven Trim
3A139014401 Frigidaire Oven Trim
4808950005 Frigidaire Door Assembly
6139006905 Frigidaire Oven Baffle
7318372017 Frigidaire Insulation
7A318372016 Frigidaire Insulation
85304503232 Frigidaire Oven Inner Door Glass
9Liner,oven door
10SCREW-OVEN DOOR, WASHER HEAD, 10-24 X 1.81
16316446401 Frigidaire Oven Glass
17318264731 Frigidaire Oven Spacer
18WCI 316547900
23316575915 Frigidaire Oven Hinge
29139023400 Frigidaire Oven Spacer
39WCI 318927400
40318242702 Frigidaire Oven Bracket Assembly
41318370602 Frigidaire Oven Bracket
42318382302 Frigidaire Bracket
565303324184 Frigidaire Wall Oven Range Screw
56A5304480396 Frigidaire Screw
64318165800 Frigidaire Oven Door Glass Spacer with Screw
