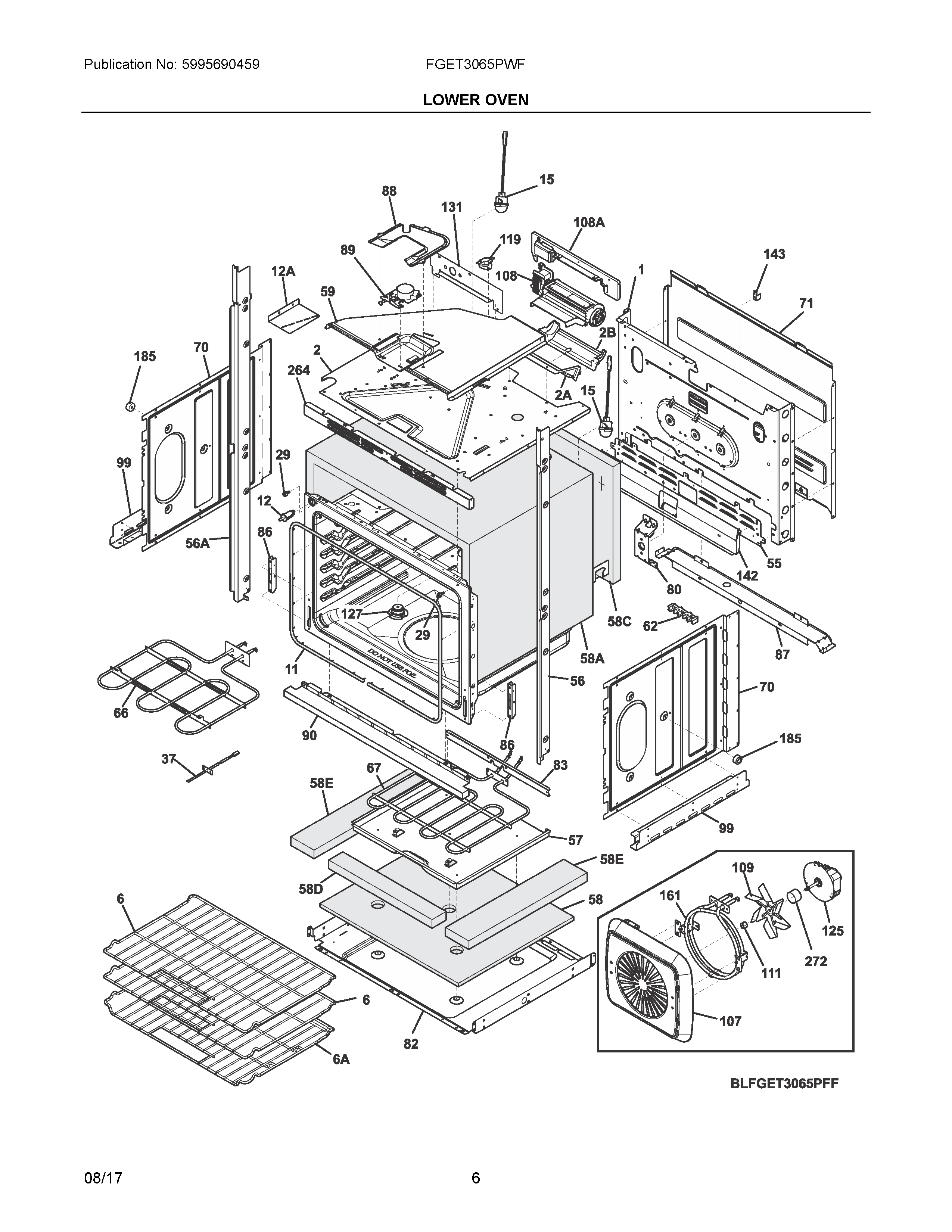

FGET3065PWF 04 – LOWER OVEN

FGET3065PWF 04 – LOWER OVEN

Written by

in

FGET3065PWF 04 – LOWER OVEN

Products

PositionProduct
NI5304517285 Frigidaire Assembly Harness
NIWCI 5304509686
NIA139022101 Frigidaire Insulation
NIBA316021119 Frigidaire Oven Screw
NIA5304517383 Frigidaire Harness
NIA318946500 Frigidaire Oven Light Bulb Range/Wall
NIA807597603 Frigidaire Oven Screw
NI5304471184 Frigidaire Screw
NI318165800 Frigidaire Oven Door Glass Spacer with Screw
NI5304506955 Frigidaire Harness Assembly
NIA316001017 Frigidaire Screw
NI316021105 Frigidaire Oven Screw
NIB5303289910 Frigidaire Oven Screw
NIB316021109 Frigidaire Oven Screw
NIA316205500 Frigidaire Oven Nut
NIA316418900 Frigidaire Oven Screw
1PANEL, MAIN BACK
2A139015900 Frigidaire SHIELD
2B139038901 Frigidaire Oven Housing
2139028101 Frigidaire Shield
65304514983 Frigidaire Oven Rack
6A139012400 Frigidaire Oven Rack
11807545502 Frigidaire Oven Seal
12808136601 Frigidaire Oven Switch
12A807641201 Frigidaire Shield
155304528790 Frigidaire Lamp Assembly Appliance
29316517600 Frigidaire Oven Spacer
37SENSOR
55PANEL, SERVICE, MAIN BACK
56318903678 Frigidaire Trim
56A318903679 Frigidaire Oven Trim
575304506949 Frigidaire Box
58A139001700 Frigidaire Insulation
58D5304506965 Frigidaire Insulation
58EINSULATION, LOWER, SIDE, (2)
585304506952 Frigidaire Insulation
58C5304507679 Frigidaire Insulation
59139015700 Frigidaire Duct
625304409888 Frigidaire Oven Terminal Block with Hardware
665304521498 Frigidaire Element
675304506946 Frigidaire Oven Element
70139000601 Frigidaire Oven Shield
71139020000 Frigidaire Shield
80139021101 Frigidaire Bracket Assembly
825304507676 Frigidaire Shield
835304506951 Frigidaire Shield Appliance
86318561100 Frigidaire Receptacle
87139020100 Frigidaire Oven Bracket
885304506963 Frigidaire Cover
895304528835 Frigidaire Motor
905304507694 Frigidaire Trim
99318256201 Frigidaire Oven Bracket
107139013903 Frigidaire Oven Vent Hood Cover
108A139023900 Frigidaire Oven Bracket
108WCI 139038301
109318398302 Frigidaire Stove Oven Range Convection Motor Fan Blade
111316136600 Frigidaire Oven Range Lock Nut
119THERMOSTAT,SAFETY,125C
125139008502 Frigidaire Oven Motor Assembly
127139042600 Frigidaire Tube Assembly
1315304507691 Frigidaire Cover
1425304507678 Frigidaire Shield
143318172904 Frigidaire Bracket
161139006500 Frigidaire Oven Element
185318531800 Frigidaire Oven Spacer
264139007801 Frigidaire Oven Trim
272139021700 Frigidaire Oven Tube
