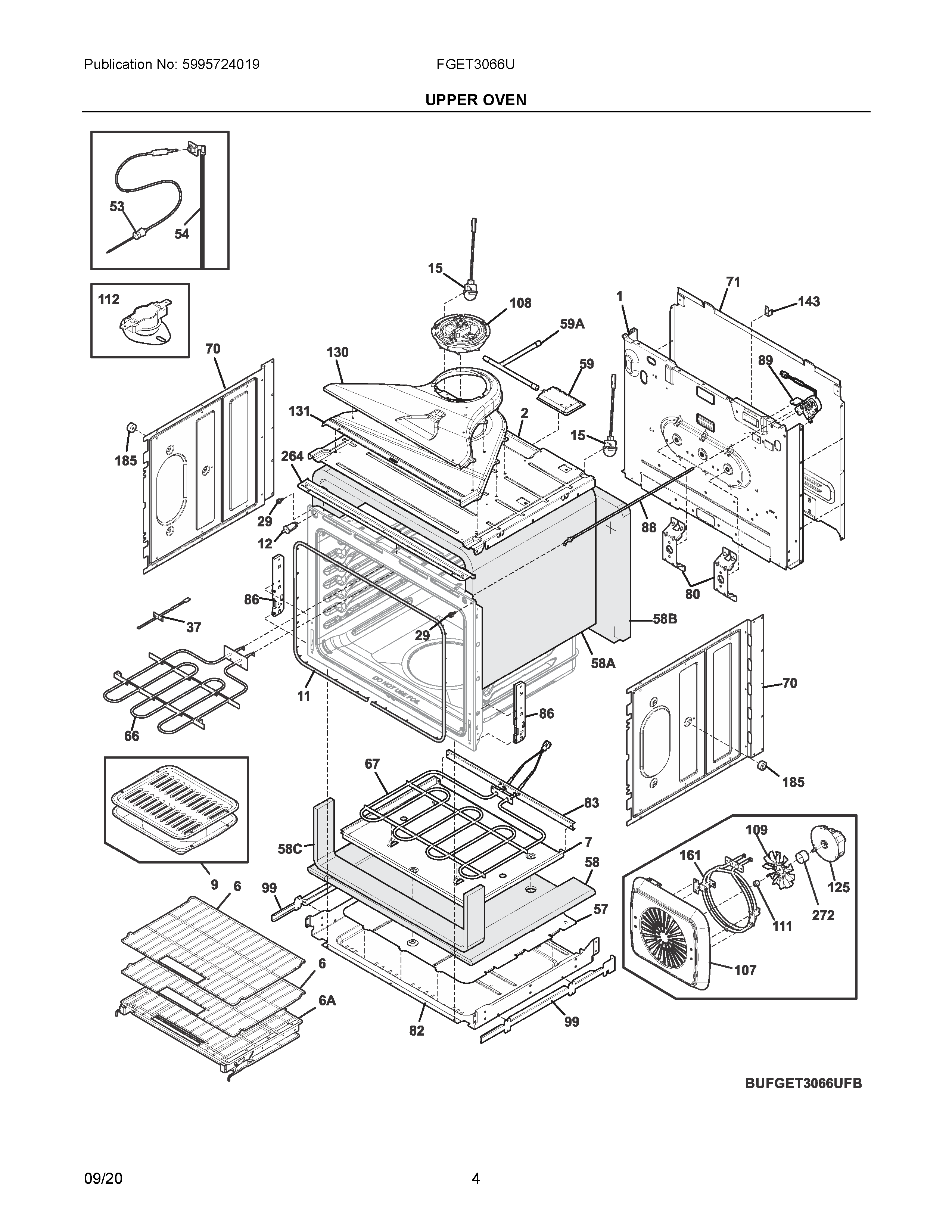

FGET3066UDB 03 – UPPER OVEN

FGET3066UDB 03 – UPPER OVEN

Written by

in

FGET3066UDB 03 – UPPER OVEN

Products

PositionProduct
NI316021105 Frigidaire Oven Screw
NIA318946500 Frigidaire Oven Light Bulb Range/Wall
NI807597603 Frigidaire Oven Screw
NIA5304514912 Frigidaire Harness
NIAA5304500643 Frigidaire Bracket
NIA316418900 Frigidaire Oven Screw
NIAWCI 318579001
NI5304514908 Frigidaire Harness
NIA318167300 Frigidaire Clip
NI5303289910 Frigidaire Oven Screw
NIB5303311164 Frigidaire Oven Spring
NI316021109 Frigidaire Oven Screw
NI5303324184 Frigidaire Wall Oven Range Screw
15304525130 Frigidaire Panel
2808651302 Frigidaire Shield
6A5304518864 Frigidaire Rack Assembly
65304514983 Frigidaire Oven Rack
7BOX, BAKE ELEMENT
9BROIL PAN KIT, PAN & INSERT, SLATE BLUE, OPTIONAL, ACCESSORY
11139036701 Frigidaire Oven Seal
12808136601 Frigidaire Oven Switch
155304528790 Frigidaire Lamp Assembly Appliance
29316517600 Frigidaire Oven Spacer
37SENSOR
535304503737 Frigidaire Black Meat Temperature Probe
54139017203 Frigidaire Assembly Receptacle
575304521752 Frigidaire Shield
58808816501 Frigidaire Insulation
58C807887503 Frigidaire Insulation
58B808905101 Frigidaire Insulation
58AINSULATION, OVEN WRAPPER
59ATUBE, EXTENSION, CATALYST
59808931403 Frigidaire Vent Box Assembly
665304514924 Frigidaire Element
675304516286 Frigidaire Oven Heating Element
70139000601 Frigidaire Oven Shield
71808650302 Frigidaire Shield
80139021101 Frigidaire Bracket Assembly
825304522581 Frigidaire Shield
835304520860 Frigidaire Shield
86139026900 Frigidaire Receptacle
88808721601 Frigidaire Rod
895304528925 Frigidaire Motor Assembly
99808109001 Frigidaire Support
107139013903 Frigidaire Oven Vent Hood Cover
1085304528825 Frigidaire Assembly Motor Fan
109318398302 Frigidaire Stove Oven Range Convection Motor Fan Blade
111316136600 Frigidaire Oven Range Lock Nut
1125304494446 Frigidaire Oven Switch
125139008504 Frigidaire Oven Motor
130808651606 Frigidaire Duct
131808651702 Frigidaire Oven Duct
143318172904 Frigidaire Bracket
161139006500 Frigidaire Oven Element
185318531800 Frigidaire Oven Spacer
2645304500596 Frigidaire Trim
272139021700 Frigidaire Oven Tube
