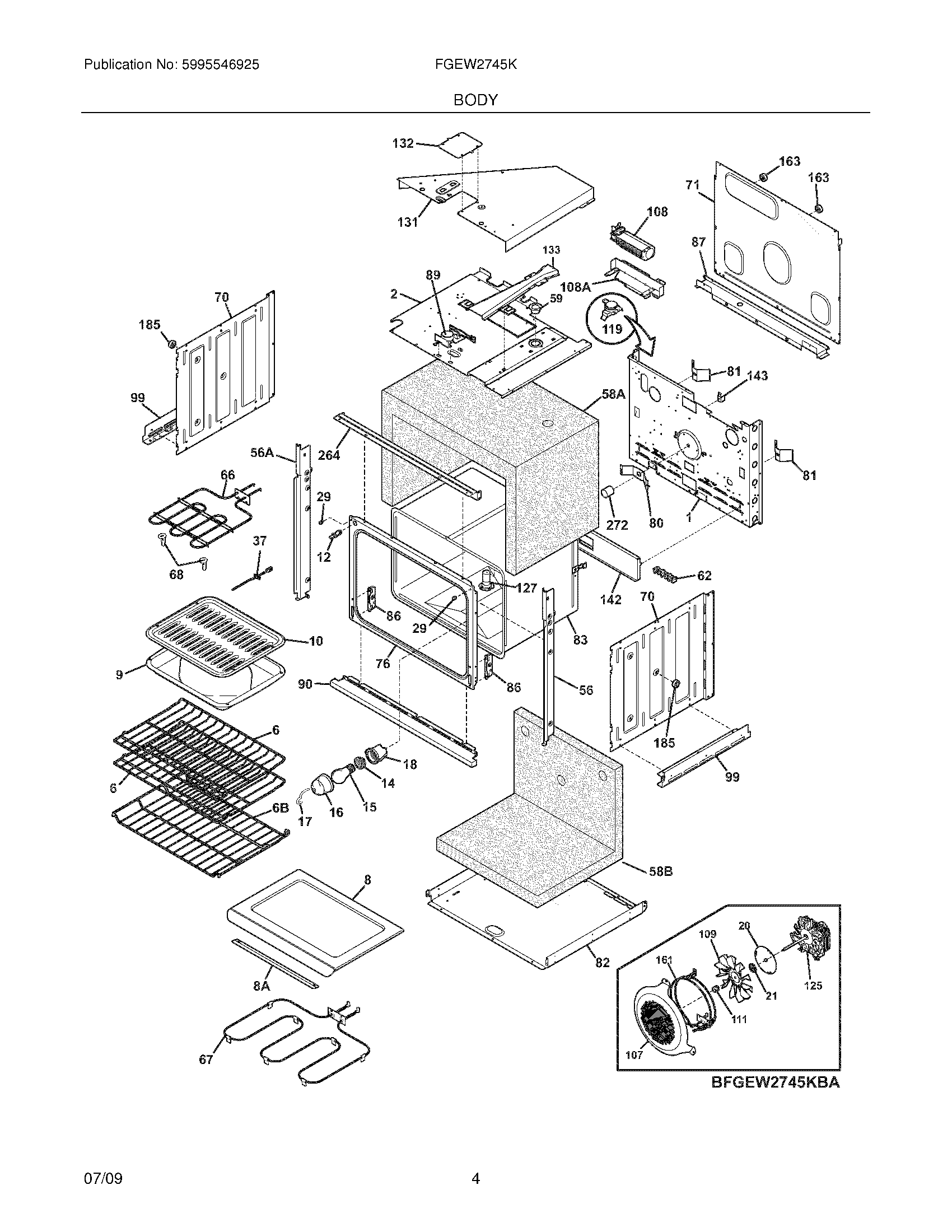

FGEW2745KWA 05 – BODY

FGEW2745KWA 05 – BODY

Written by

in

FGEW2745KWA 05 – BODY

Products

Position	Product
NI	5303323277 Frigidaire Oven Screw
NI	316205500 Frigidaire Oven Nut
NI	5303324184 Frigidaire Wall Oven Range Screw
NI	5304506983 Frigidaire Harness Assembly
NI	WCI 318368501
NI	5303211311 Frigidaire Refrigerator Screw
NI	318165800 Frigidaire Oven Door Glass Spacer with Screw
NI	5303323129 Frigidaire Oven Screw
NI	WCI 318402209
NI	5304461333 Frigidaire Oven Screw
NI	WCI 318532181
NI	5304480396 Frigidaire Screw
NI	5304436875 Frigidaire Oven Screw
NI	SCREW,TRUSS HEAD,8-18 X 0.375
NI	WCI 318268099
NI	5304470882 Frigidaire Oven Screw
NI	Screw,No.8-18 x 3/8 ,(10)
NI	5303323139 Frigidaire Oven Screw
NI	5304415832 Frigidaire Oven Screw
1	WCI 318259213
2	WCI 318258920
6B	WCI 318919800
6	318922301 Frigidaire Oven Rack
8	WCI 318262011
8A	WCI 318318600
9	WCI 5303317977
10	WCI 5303317976
12	316445501 Frigidaire Oven Switch
14	316116400 Frigidaire Oven Light Socket
15	316538904 Frigidaire Oven Lamp Light
16	5304524341 Frigidaire Lens
17	WCI 5304400195
18	WCI 318222400
20	WCI 318389400
21	318389000 Frigidaire Oven Seal
29	316517600 Frigidaire Oven Spacer
37	316217002 Frigidaire Oven Temperature Probe
56	WCI 318903702
56A	WCI 318903703
58A	WCI 318386110
58B	WCI 318285060
59	318072577 Frigidaire Duct
62	5304409888 Frigidaire Oven Terminal Block with Hardware
66	318255606 Frigidaire Range Oven Broil Element
67	318254902 Frigidaire Oven Element
68	5304403015 Frigidaire Oven Support
70	WCI 318259105
71	WCI 318260001
76	WCI 318056224
80	WCI 5303320846
81	WCI 318192400
82	WCI 318258768
83	WCI 318261816
86	318561100 Frigidaire Receptacle
87	WCI 318260623
89	318261229 Frigidaire Oven Motor
90	WCI 318259710
99	318256201 Frigidaire Oven Bracket
107	WCI 318219405
108	318073028 Frigidaire Oven Motor
108	WCI 318251300
109	318398302 Frigidaire Stove Oven Range Convection Motor Fan Blade
111	316136600 Frigidaire Oven Range Lock Nut
119	318004900 Frigidaire Thermal Switch
125	5304467898 Frigidaire Oven Kit Assembly
125	Washer,motor ,RH ,convection
127	WCI 318357001
131	WCI 318272901
132	318003000 Frigidaire Plate
133	WCI 318347800
142	WCI 318123910
143	318172904 Frigidaire Bracket
161	318255504 Frigidaire Oven Element
163	Spacer,(4)
185	318531800 Frigidaire Oven Spacer
264	WCI 318257721
272	WCI 318249409
