FGEW3045PFB 05 – BODY

FGEW3045PFB 05 – BODY

Written by

in

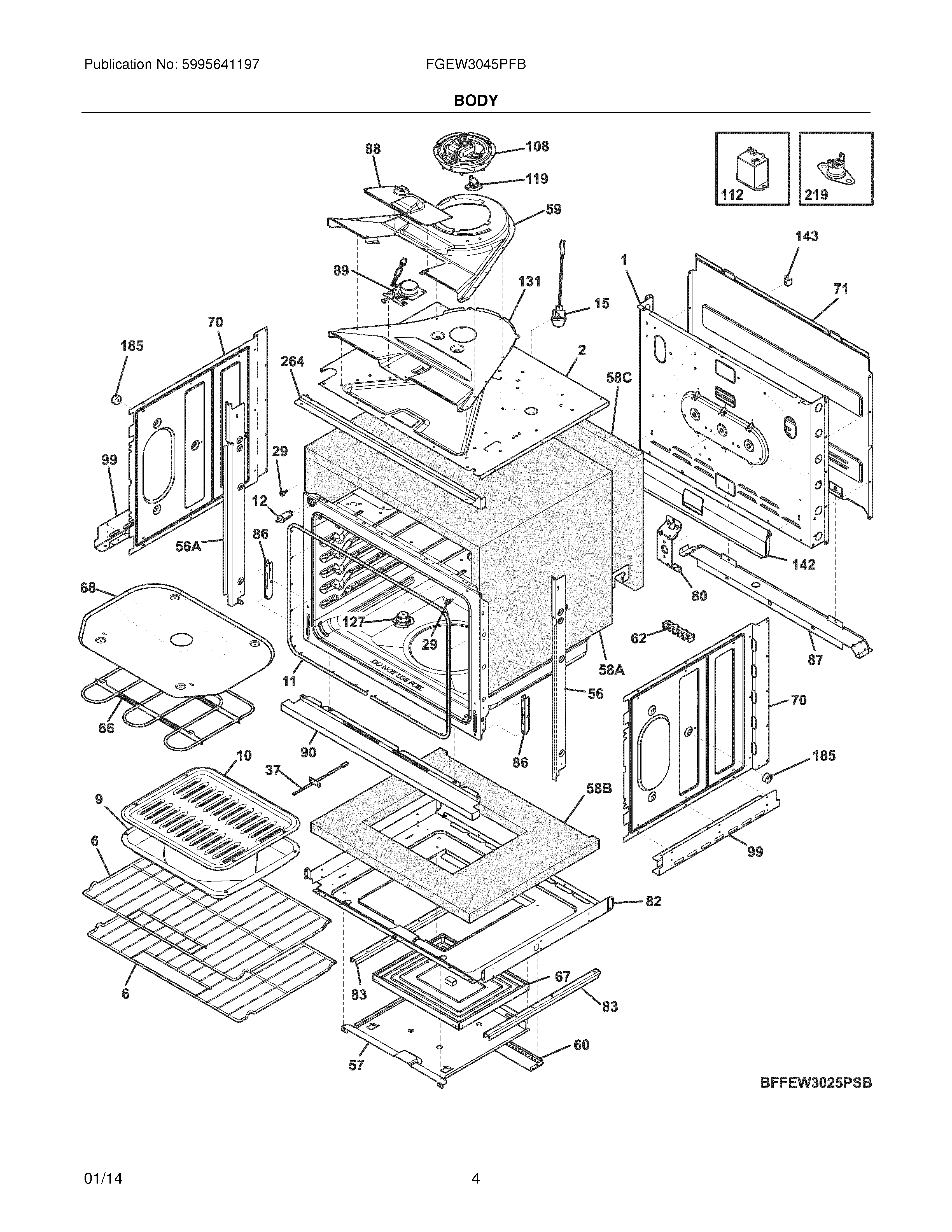

FGEW3045PFB 05 – BODY

Products

Position	Product
NI	316021105 Frigidaire Oven Screw
NI	139021700 Frigidaire Oven Tube
NI	5304470882 Frigidaire Oven Screw
NI	807597603 Frigidaire Oven Screw
NI	5303323130 Frigidaire Oven Screw
NI	318165800 Frigidaire Oven Door Glass Spacer with Screw
NI	316418900 Frigidaire Oven Screw
NI	WCI 318579001
NI	WCI 318231870
NI	316001017 Frigidaire Screw
NI	316205500 Frigidaire Oven Nut
NI	316021109 Frigidaire Oven Screw
NI	5303289910 Frigidaire Oven Screw
NI	139802000 Frigidaire Oven Harness
NI	HARNESS, WIRING, LATCH MOTOR
NI	5304506983 Frigidaire Harness Assembly
1	WCI 139017304
2	139028107 Frigidaire Shield
6	WCI 139011800
9	318138801 Frigidaire Oven Pan
10	316082001 Frigidaire Oven Insert
11	807545502 Frigidaire Oven Seal
12	316445501 Frigidaire Oven Switch
15	5304528790 Frigidaire Lamp Assembly Appliance
29	316517600 Frigidaire Oven Spacer
37	SENSOR
56	TRIM, SIDE, BLACK, RH
56A	TRIM, SIDE, BLACK, LH
57	807988901 Frigidaire Oven Panel
58A	139001700 Frigidaire Insulation
58C	139021400 Frigidaire Insulation
58B	807989001 Frigidaire Insulation
59	139027600 Frigidaire Oven Duct
60	807285601 Frigidaire Oven Shield
62	5304409888 Frigidaire Oven Terminal Block with Hardware
66	5304521498 Frigidaire Element
67	318601604 Frigidaire Oven Bake Element
68	WCI 807890403
70	139000601 Frigidaire Oven Shield
71	139020000 Frigidaire Shield
80	139021101 Frigidaire Bracket Assembly
82	Shield,insulation ,lower
83	807988802 Frigidaire Shield
86	318561100 Frigidaire Receptacle
87	139020100 Frigidaire Oven Bracket
88	5304506964 Frigidaire Oven Cover
89	139021301 Frigidaire Oven Motor
90	139008709 Frigidaire Oven Trim
99	318256201 Frigidaire Oven Bracket
108	318575612 Frigidaire Oven Cooling Fan Motor
112	WCI 318112703
112	5308014215 Frigidaire Oven Screw
119	318578506 Frigidaire Oven High Limit Thermostat
127	139042600 Frigidaire Tube Assembly
131	139027700 Frigidaire Oven Duct
142	5304507678 Frigidaire Shield
143	318172904 Frigidaire Bracket
185	318531800 Frigidaire Oven Spacer
219	318003624 Frigidaire Oven High Limit Thermostat
264	139017601 Frigidaire Oven Trim
