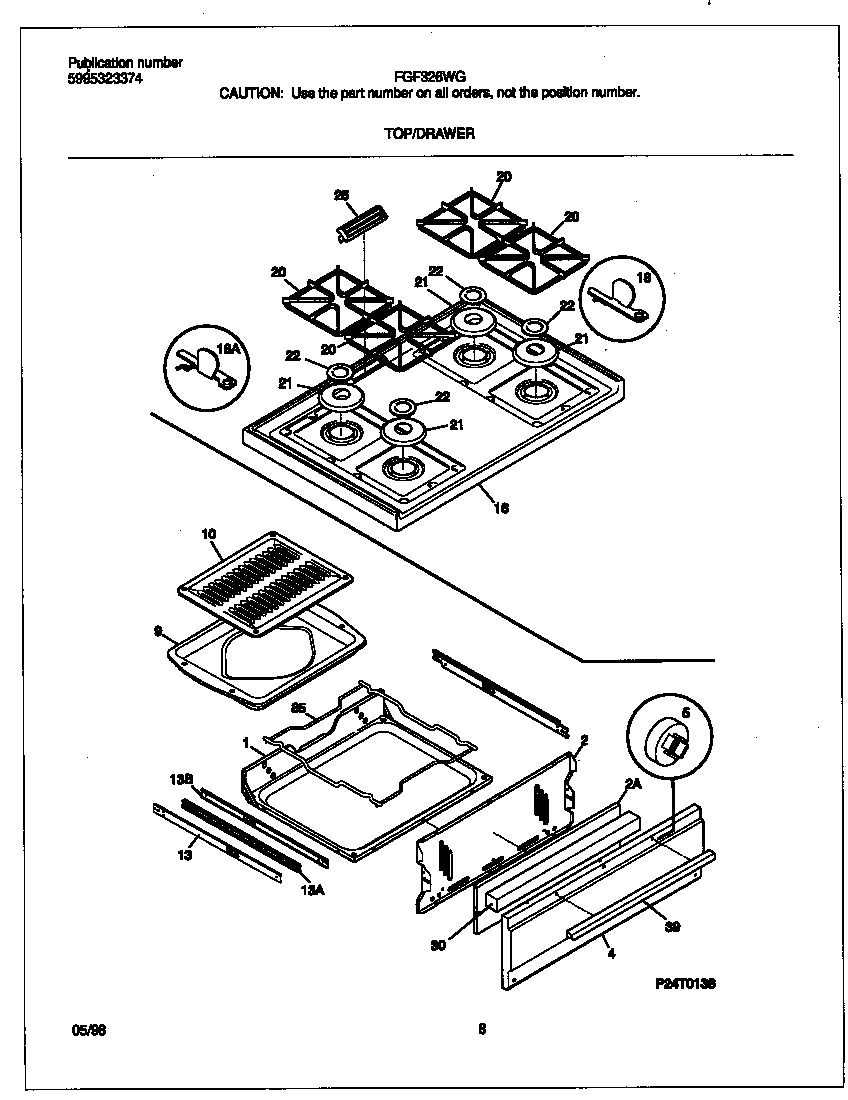

FGF326WGTD 05 – TOP/DRAWER

FGF326WGTD 05 – TOP/DRAWER

Written by

in

FGF326WGTD 05 – TOP/DRAWER

Products

PositionProduct
*69699WCI 5303280311
*69694316021109 Frigidaire Oven Screw
*69693Screw,cup pt ,8-18 x 0.375 ,chrome
*69698WCI 316072100
1WCI 316110201
2WCI 316110101
2WCI 316110800
4WCI 316056206
5FSTNR, SPACER (2)
9WCI 316073800
10WCI 3205234
13GLIDE-DRAWER,OUTER
13WCI 316111600
13WCI 316111501
16WCI 316017108
18BRACKET-HINGE,MAIN TOP LH
18BRACKET-HINGE,MAIN TOP RH
20WCI 316088900
20WCI 316104410
21TRIM RING-BURNER, BLACK, SMALL, (4)
22316010901 Frigidaire Burner Cap P1
25WCI 316104500
30WCI 316111400
39WCI 316019508
85WCI 316115600
