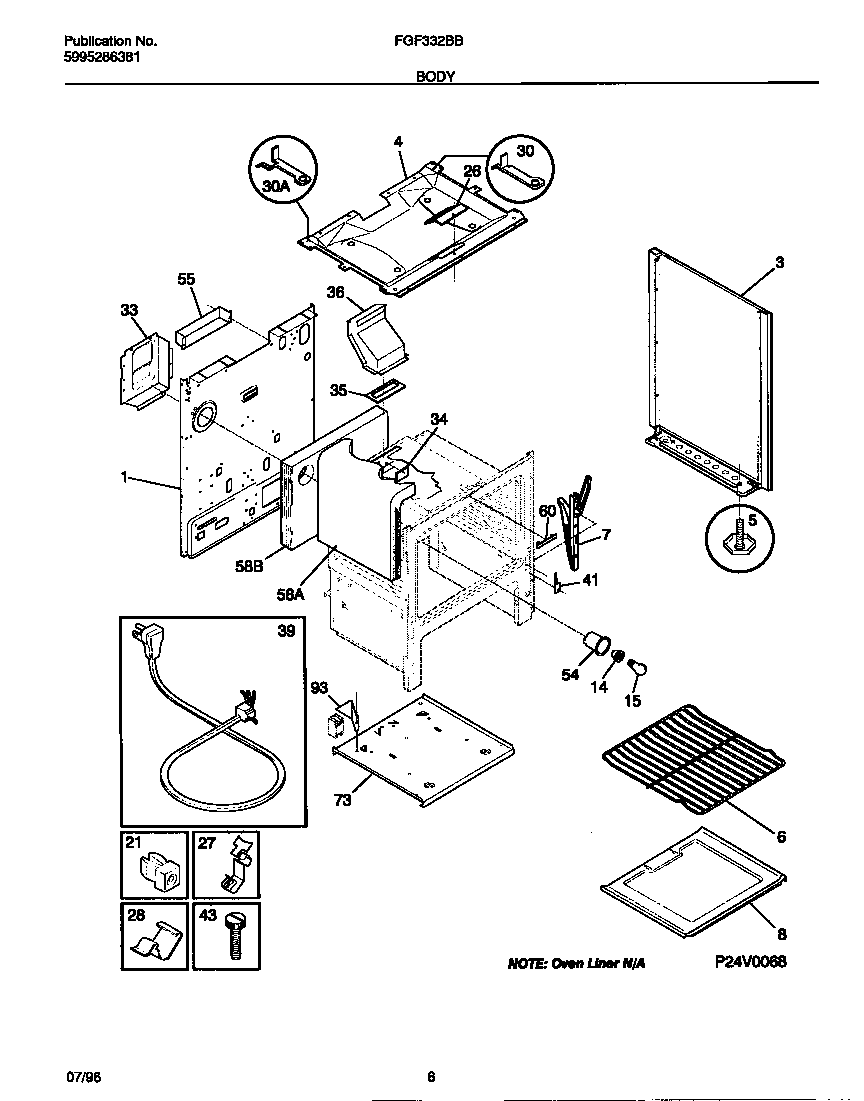

FGF332BBDC 04 – BODY

FGF332BBDC 04 – BODY

Written by

in

FGF332BBDC 04 – BODY

Products

PositionProduct
*22084WCI 316001216
*22083WCI 5303273110
*22082Screw,cup pt ,8-18 x 0.375 ,chrome
1WCI 316029412
3WCI 316081007
3WCI 316081006
4WCI 3011597
5DNUT, T,TYPE, LEVELING SCREW (NOT ILLUSTRATED)
5BWCI 3934058
5ASCREW-LEVELING
5C316116000 Frigidaire Screw
6316067902 Frigidaire Oven Rack
7AHinge,oven door ,(2)
7B3203010 Frigidaire Clip
8ABTTM-OVEN
8B316064600 Frigidaire Oven Support
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
21SPACER-BODYSIDE, (8)
26WCI 08067757
275303284616 Frigidaire Range Bulb Clip Thermostat
28CLIP-WIRE
30BRACKET-HINGE, MAIN TOP RH
30BRACKET-HINGE, MAIN TOP, LH
33WCI 316055601
34COVER-IGNITOR
35316542102 Frigidaire Flue Gasket
36WCI 5303273108
39A5304515659 Frigidaire Oven Power Cord
39BWCI 08067961
41WCI 3131570
43316282700 Frigidaire Oven Screw
54WCI 5303271606
58INSUL – OVEN BACK (NON-ILLUSTRATED)
58INSULATION, OVEN WRAPPER
60COVER-OVEN FRONT
73BASE-BROIL
93WCI 316055501
