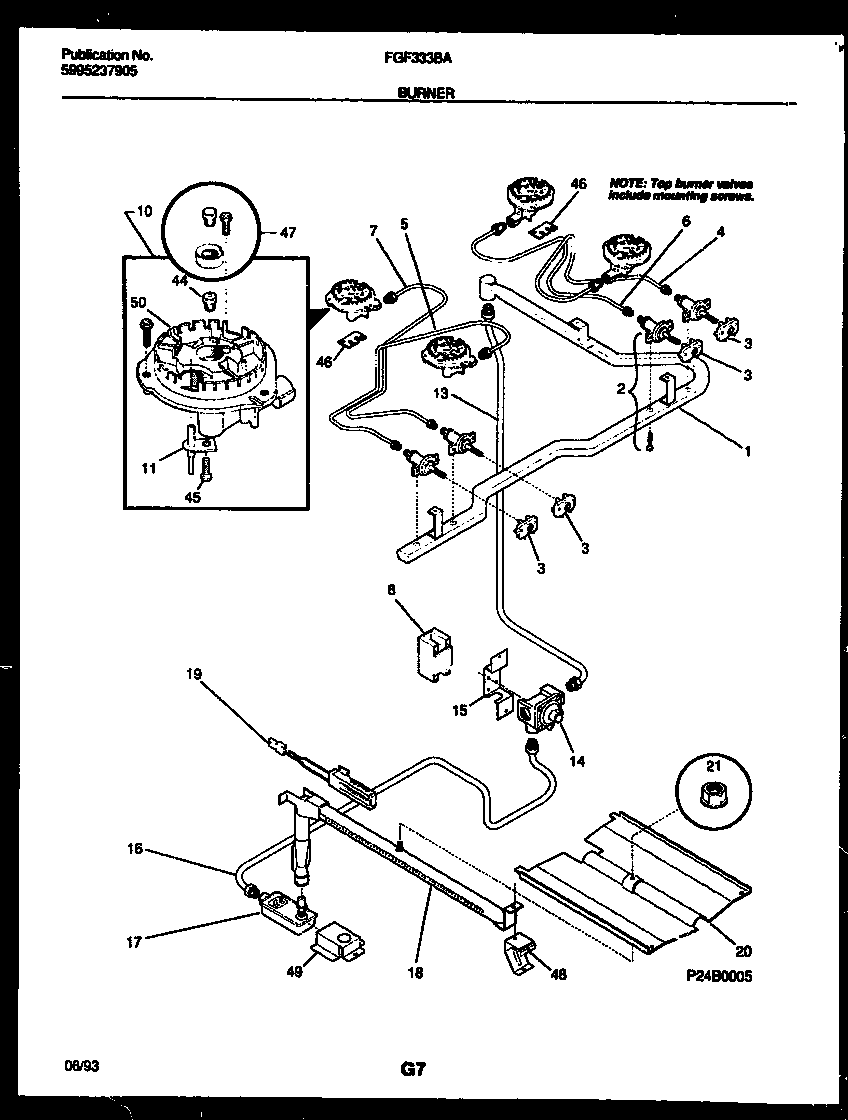

FGF333BADA 03 – BURNER, MANIFOLD AND GAS CONTROL

Products

Position	Product
1	WCI 5303271375
2	VALVE, TOP BURNER, (4), WITH MTG SCREWS
3	SWITCH-IGNITER, (4)
4	WCI 316059600
5	316059613 Frigidaire Oven Tube-LF
6	WCI 316059602
8	5304505695 Frigidaire Oven Module
10	WCI 316010600
11	316011200 Frigidaire Oven Top Burner Igniter
13	TUBE-ALUM 3/8 REG/MANIFOLD PIPE
14	5303935125 Frigidaire Pressure Regulator
15	316091600 Frigidaire Oven Bracket
16	316065006 Frigidaire Tube P1
17	3203459 Frigidaire Oven Range Dual Gas Safety Valve
18	WCI 3131439
19	5303935066 Frigidaire Oven Flat Igniter 17" Leads
20	WCI 3203265
21	5303013272 Frigidaire Oven Nut
44	ORIFICE-TOP BURNER, (4)
45	WCI 316011100
46	WCI 5303269491
47	WCI 5303286386
48	WCI 3018603
49	BRKT.-VALVE
50	WCI 316010700
