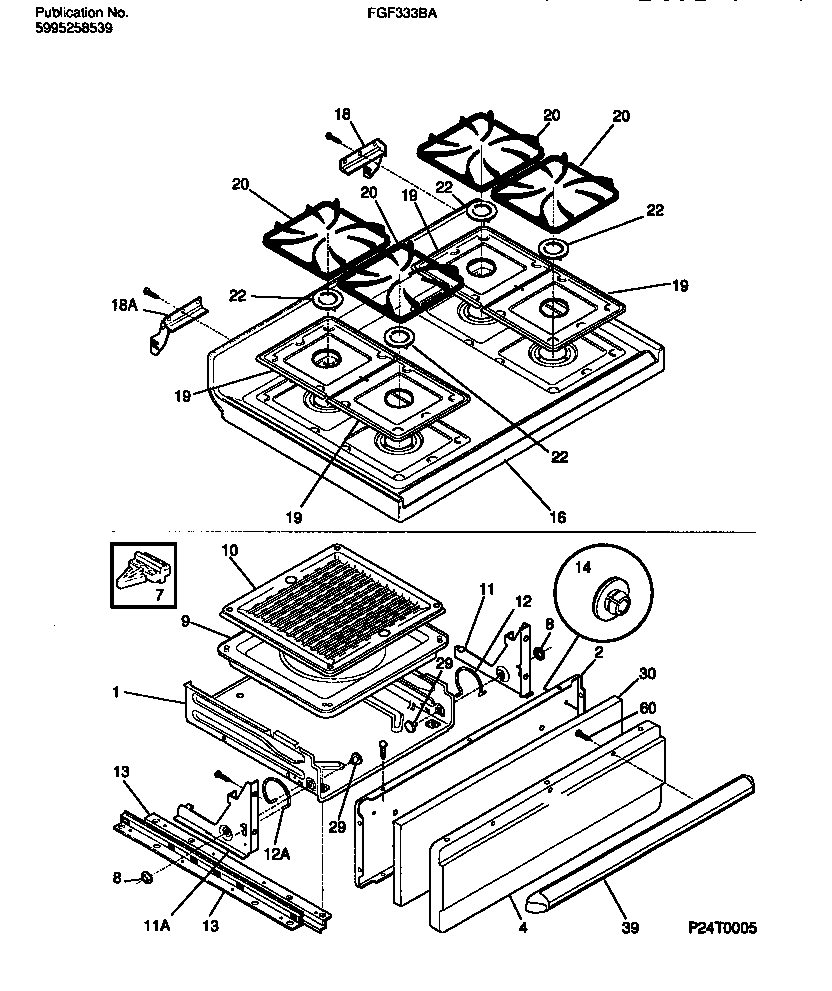

FGF333BADB 05 – TOP/DRAWER

Products

Position	Product
1	DRAWER-BROILER
2	WCI 3202803
4	WCI 316056206
4A	SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
7	GLIDE-DRAWER, REAR
8	WCI 3131386
9	PAN-BROILER
10	WCI 5303131356
11	BRACKET-BROILER HINGE, RH
11A	BRACKET-BROILER HINGE, LH
12A	WCI 3018618`
12	SPRING-BROILER, RH
13	WCI 3131153
14	WCI 3206216
16B	GUSSET-MTG (LH) (NON-ILLUSTRATED)
16A	GUSSET-MTG (RH) (NON-ILLUSTRATED)
16	WCI 5303301547
18	HINGE-MAIN TOP (RH)
18A	HINGE-MAIN TOP (LH)
18B	131243700 Frigidaire Screw
19	WCI 316011401
20	WCI 316025400
22	WCI 316011001
29	PIN, HINGE (2)
30	INSULATION, BROILER DRAWER
39	WCI 316026100
60	WCI 5303288574
