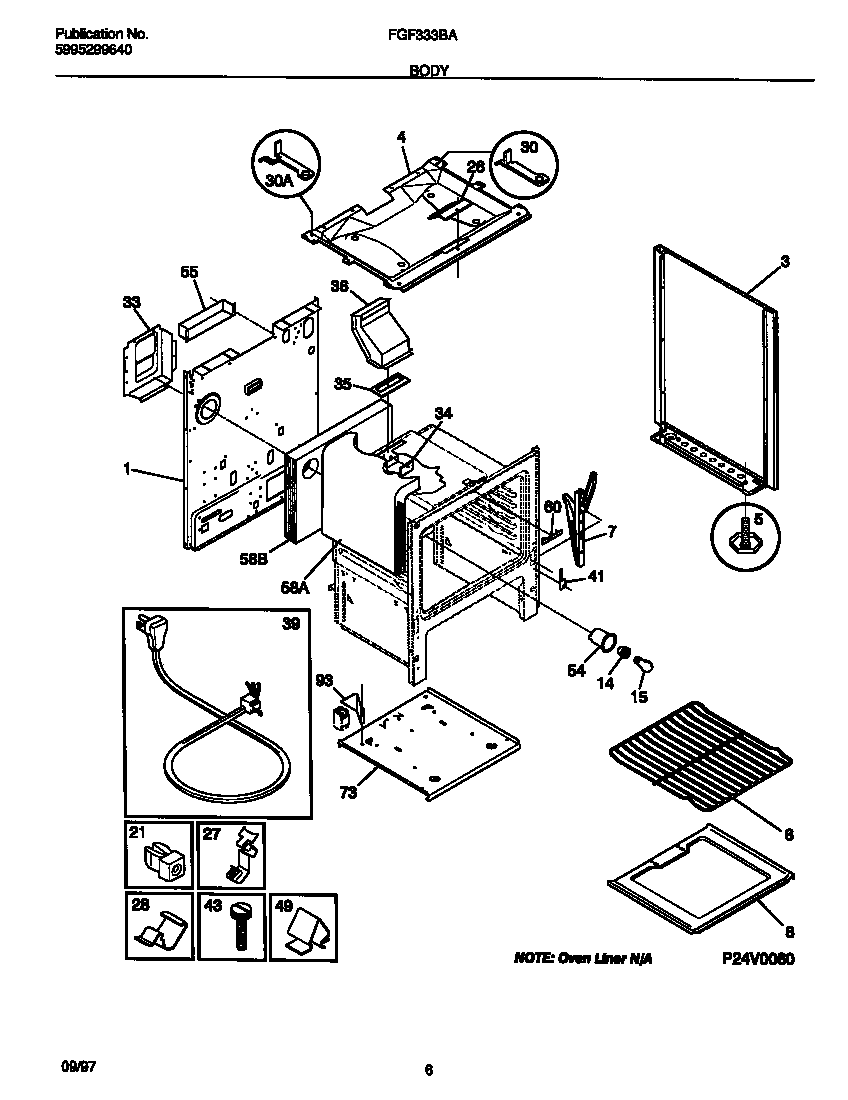

FGF333BADH 04 – BODY

FGF333BADH 04 – BODY

Written by

in

FGF333BADH 04 – BODY

Products

PositionProduct
*31564WCI 316001219
*31563Screw,cup pt ,8-18 x 0.375 ,chrome
1WCI 316029412
3WCI 316081030
3PANEL-BODYSIDE,ALMOND ,LH
4WCI 316011912
5BWCI 3934058
5ASCREW-LEVELING
5DNUT, T,TYPE, LEVELING SCREW (NOT ILLUSTRATED)
5C316116000 Frigidaire Screw
6316067902 Frigidaire Oven Rack
7B3203010 Frigidaire Clip
7AHinge,oven door ,(2)
8B316064600 Frigidaire Oven Support
8ABTTM-OVEN
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
21SPACER-BODYSIDE, (8)
26WCI 08067757
275303284616 Frigidaire Range Bulb Clip Thermostat
28CLIP-WIRE
30WCI 316059200
30WCI 316059201
33WCI 316055601
34COVER-IGNITOR
35316542102 Frigidaire Flue Gasket
36WCI 5303273108
39A5304515659 Frigidaire Oven Power Cord
39BWCI 08067961
41WCI 3131570
43316282700 Frigidaire Oven Screw
493205821 Frigidaire Clip
54WCI 5303271606
55WCI 5303289358
58INSULATION, OVEN WRAPPER
58INSUL – OVEN BACK (NON-ILLUSTRATED)
60COVER-OVEN FRONT
73BASE-BROIL
93WCI 316055500
