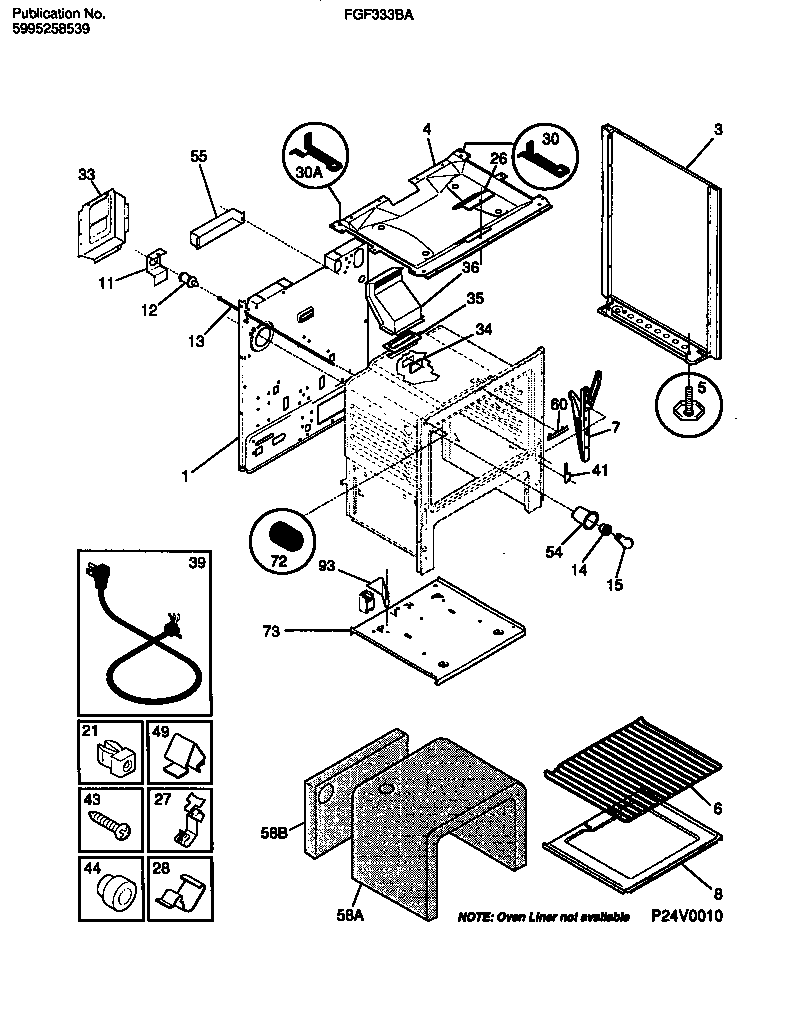

FGF333BAWB 04 – BODY

FGF333BAWB 04 – BODY

Written by

in

FGF333BAWB 04 – BODY

Products

PositionProduct
*02040WCI 08067961
*020415303321319 Frigidaire Refrigerator White Touch Up Paint
1WCI 316029405
3PNL-B/S-RH-WHITE
3APNL-B/S-LH-WHITE
4WCI 316011905
5BNUT, T,TYPE, LEVELING SCREW (NOT ILLUSTRATED)
5AWCI 3934058
5SCREW-LEVELING
6316067902 Frigidaire Oven Rack
7Hinge,oven door ,(2)
8A316064600 Frigidaire Oven Support
8BTTM-OVEN
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
21SPACER-BODYSIDE, (8)
26WCI 08067757
275303284616 Frigidaire Range Bulb Clip Thermostat
28CLIP-WIRE
30ABRACKET-HINGE, MAIN TOP, LH
30BRACKET-HINGE, MAIN TOP RH
33WCI 316055601
34COVER-IGNITOR
35316542102 Frigidaire Flue Gasket
36WCI 5303273108
395304515659 Frigidaire Oven Power Cord
41WCI 3131570
43316282700 Frigidaire Oven Screw
493205821 Frigidaire Clip
54WCI 5303271606
55WCI 5303273110
58BINSUL – OVEN BACK (NON-ILLUSTRATED)
58AINSULATION, OVEN WRAPPER
60COVER-OVEN FRONT
73BASE-BROIL
93WCI 316055501
