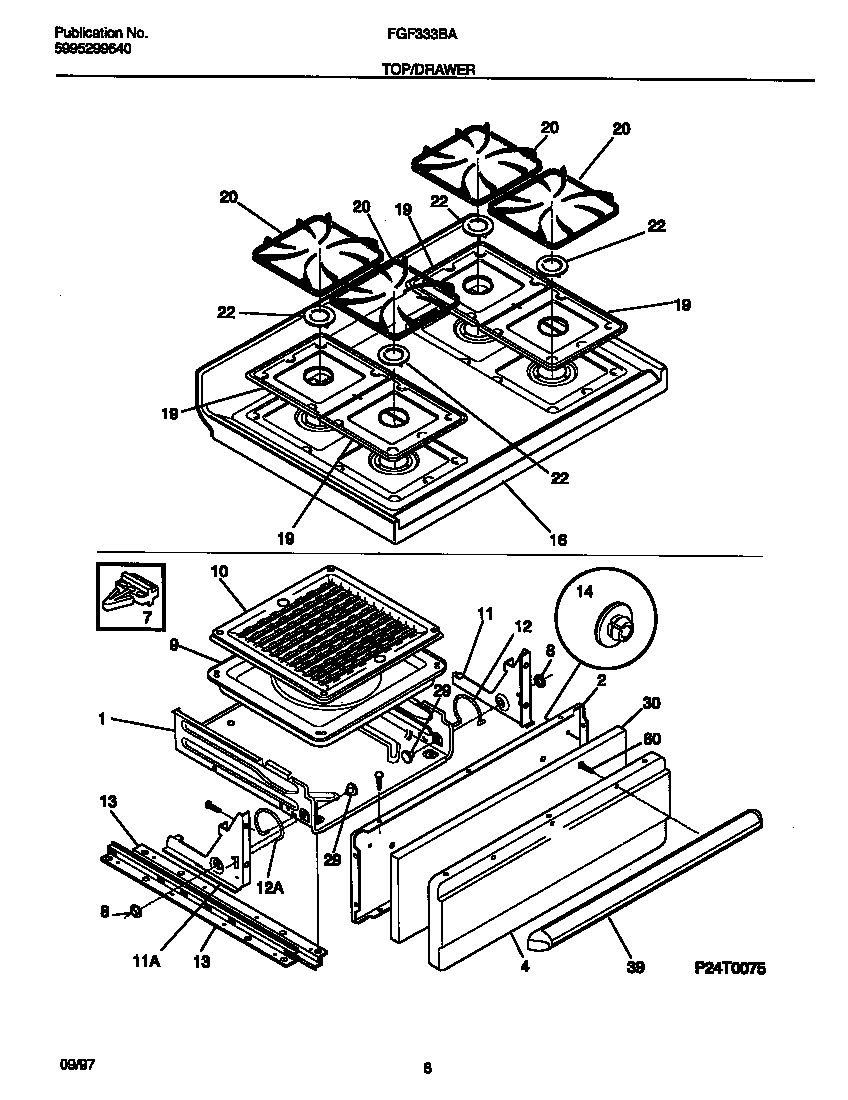

FGF333BAWH 05 – TOP/DRAWER

FGF333BAWH 05 – TOP/DRAWER

Written by

in

FGF333BAWH 05 – TOP/DRAWER

Products

PositionProduct
*31565316021105 Frigidaire Oven Screw
*31568131243700 Frigidaire Screw
*31566Screw,cup pt ,8-18 x 0.375 ,chrome
*31567WCI 5303280311
1DRAWER-BROILER
2WCI 3202803
4PANEL-BROILER, WHITE
7GLIDE-DRAWER, REAR
8WCI 3131386
9PAN-BROILER
10WCI 5303131356
11BRACKET-BROILER HINGE, RH
11BRACKET-BROILER HINGE, LH
12WCI 3018618`
12SPRING-BROILER, RH
13WCI 3131153
14WCI 3206216
16WCI 5303301546
19WCI 316011401
20WCI 316025400
22CAP-BURNER, MATTE BLACK, SMALL, (2)
29PIN, HINGE (2)
30INSULATION, BROILER DRAWER
39WCI 316026100
60WCI 5303288574
