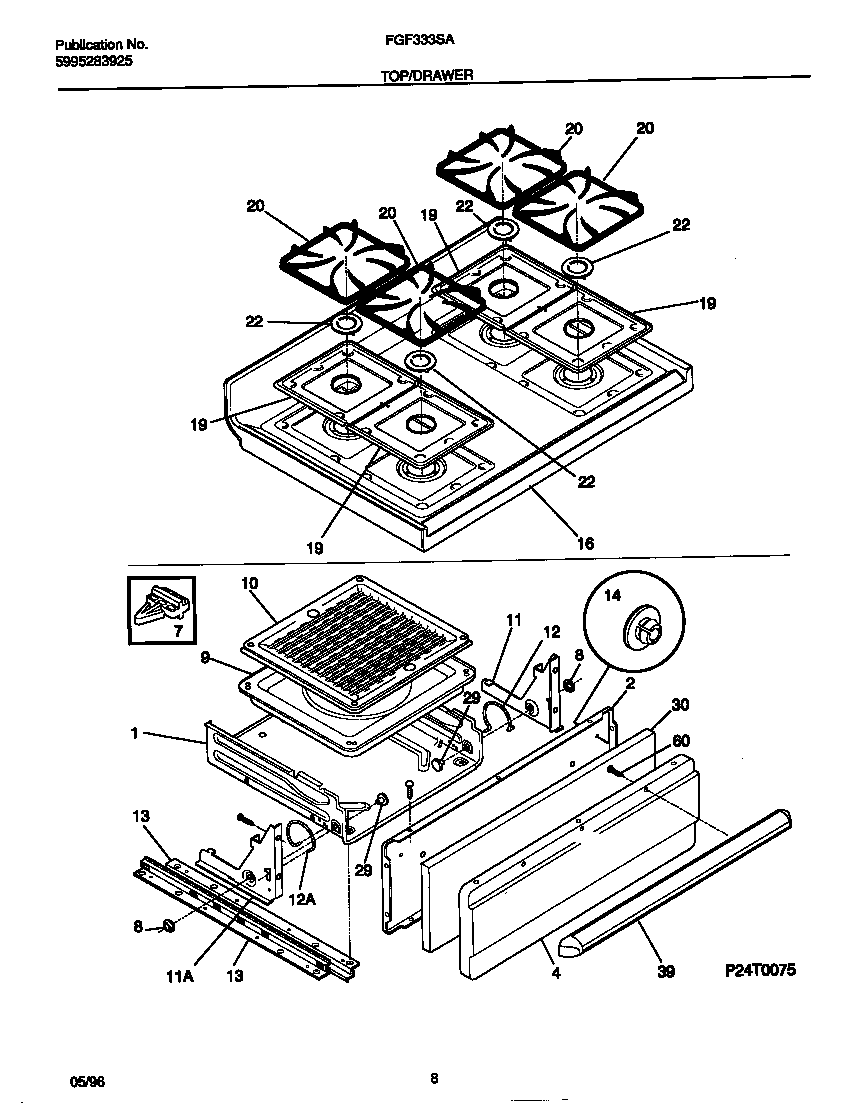

FGF333SADE 05 – TOP/DRAWER

FGF333SADE 05 – TOP/DRAWER

Written by

in

FGF333SADE 05 – TOP/DRAWER

Products

PositionProduct
*18085WCI 5303280311
*18087WCI 5303288574
*18084Screw,cup pt ,8-18 x 0.375 ,chrome
*18086131243700 Frigidaire Screw
1DRAWER-BROILER
2WCI 3202803
4SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
4WCI 316056206
7GLIDE-DRAWER, REAR
8WCI 3131386
9PAN-BROILER
10WCI 5303131356
11BRACKET-BROILER HINGE, LH
11BRACKET-BROILER HINGE, RH
12WCI 3018618`
12SPRING-BROILER, RH
13WCI 3131153
14WCI 3206216
16WCI 5303301547
19WCI 316011401
20WCI 316025400
22WCI 316011001
29PIN, HINGE (2)
30INSULATION, BROILER DRAWER
39WCI 316026100
60316089500 Frigidaire Oven Screw
