FGF333SADJ 04 – BODY

FGF333SADJ 04 – BODY

Written by

in

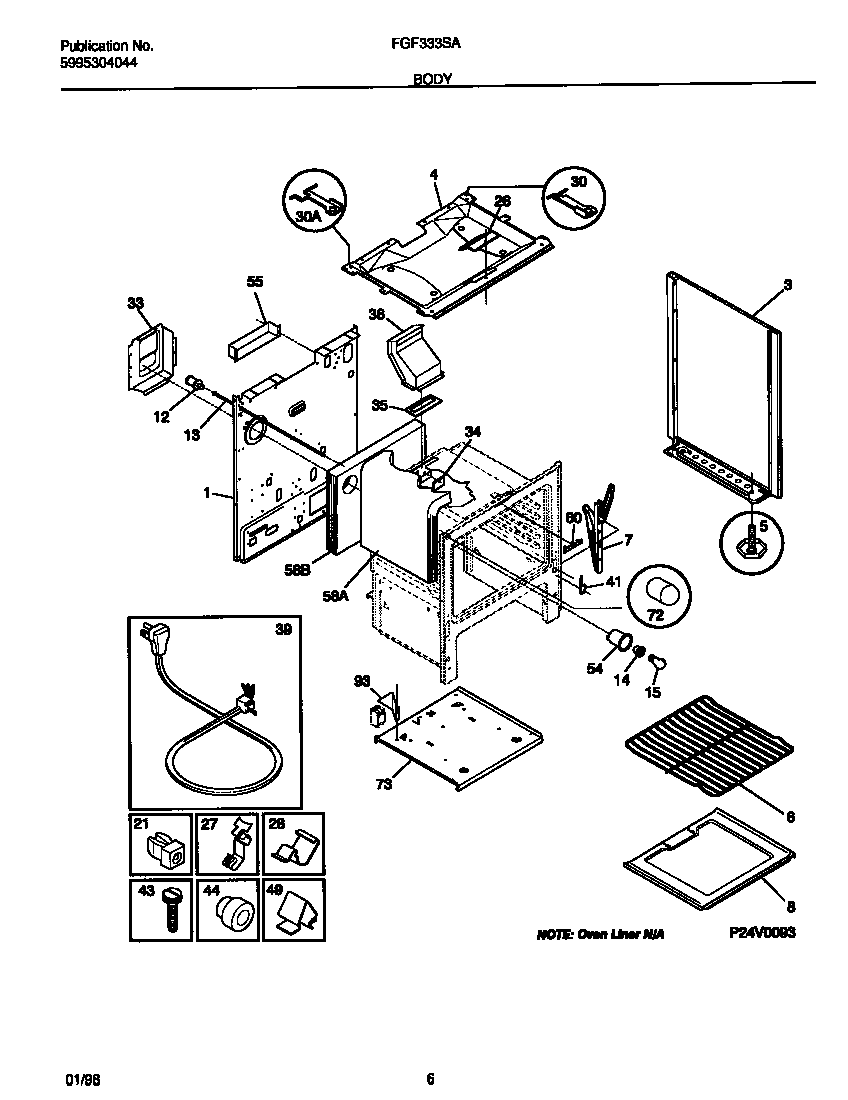

FGF333SADJ 04 – BODY

Products

PositionProduct
*977713203010 Frigidaire Clip
*97766PANEL-BODYSIDE,ALMOND ,LH
*97776WCI 5303296445
*97768WCI 3934058
*97775Screw,cup pt ,8-18 x 0.375 ,chrome
*97769316116000 Frigidaire Screw
*97772316064600 Frigidaire Oven Support
*97770NUT, T,TYPE, LEVELING SCREW (NOT ILLUSTRATED)
*97774316021105 Frigidaire Oven Screw
*97773WCI 08067961
1WCI 316029412
3WCI 316081030
4WCI 316011912
5SCREW-LEVELING
6316067902 Frigidaire Oven Rack
7WCI 316007007
8BTTM-OVEN
12WCI 316027702
13WCI 316026800
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
21SPACER-BODYSIDE, (8)
26WCI 08067757
275303284616 Frigidaire Range Bulb Clip Thermostat
28CLIP-WIRE
30WCI 316059200
30WCI 316059201
33WCI 316055601
34COVER-IGNITOR
35316542102 Frigidaire Flue Gasket
36WCI 5303273108
395304515659 Frigidaire Oven Power Cord
41WCI 3131570
43316282700 Frigidaire Oven Screw
493205821 Frigidaire Clip
54WCI 5303271606
55WCI 5303289358
58INSULATION, OVEN WRAPPER
58INSUL – OVEN BACK (NON-ILLUSTRATED)
60COVER-OVEN FRONT
72COVER-LIGHT/SWITCH ROD
73BASE-BROIL
93WCI 316055500
