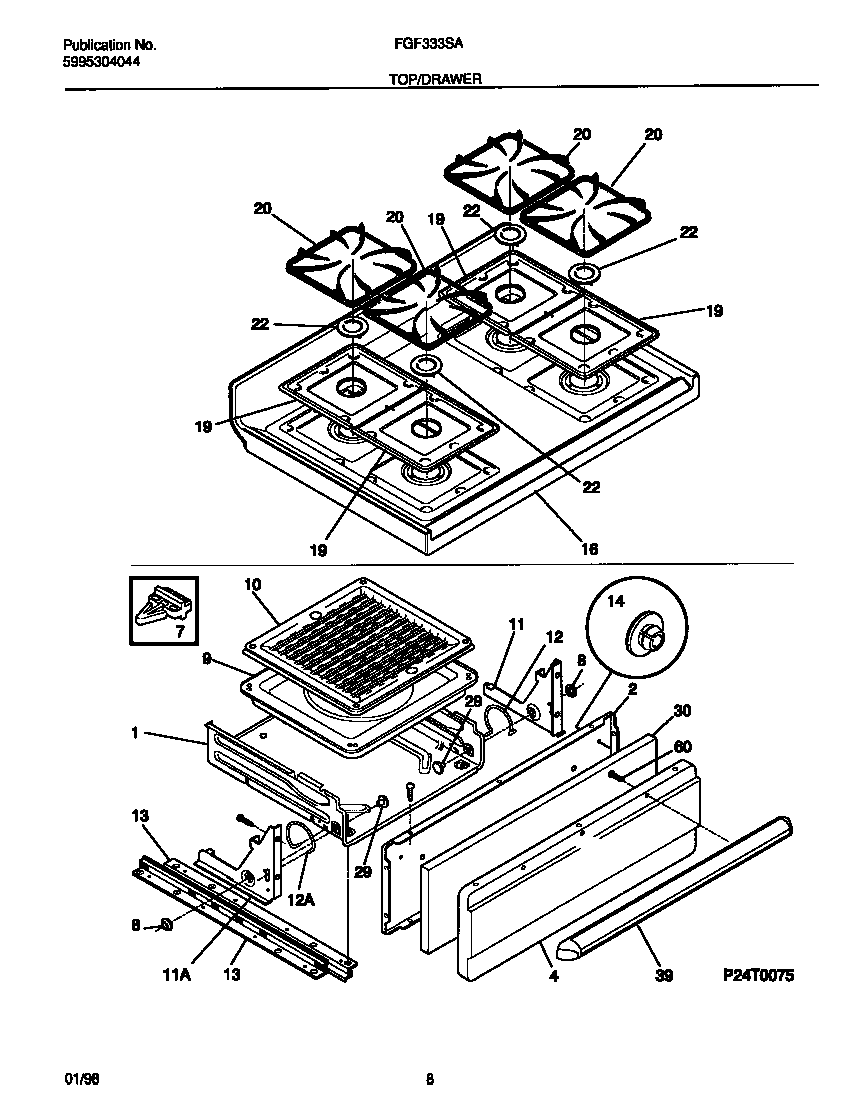

FGF333SADJ 05 – TOP/DRAWER

FGF333SADJ 05 – TOP/DRAWER

Written by

in

FGF333SADJ 05 – TOP/DRAWER

Products

PositionProduct
*97779WCI 5303280311
*97781WCI 5303288574
*97778Screw,cup pt ,8-18 x 0.375 ,chrome
*97780131243700 Frigidaire Screw
*97777316021105 Frigidaire Oven Screw
1DRAWER-BROILER
2WCI 3202803
4WCI 316056206
7GLIDE-DRAWER, REAR
8WCI 3131386
9PAN-BROILER
10WCI 5303131356
11BRACKET-BROILER HINGE, LH
11BRACKET-BROILER HINGE, RH
12SPRING-BROILER, RH
12WCI 3018618`
13WCI 3131153
14WCI 3206216
16WCI 5303301547
19WCI 316011401
20Grate,black ,(4)
22CAP-BURNER, MATTE BLACK, SMALL, (2)
29PIN, HINGE (2)
30INSULATION, BROILER DRAWER
39WCI 316026100
60316089500 Frigidaire Oven Screw
