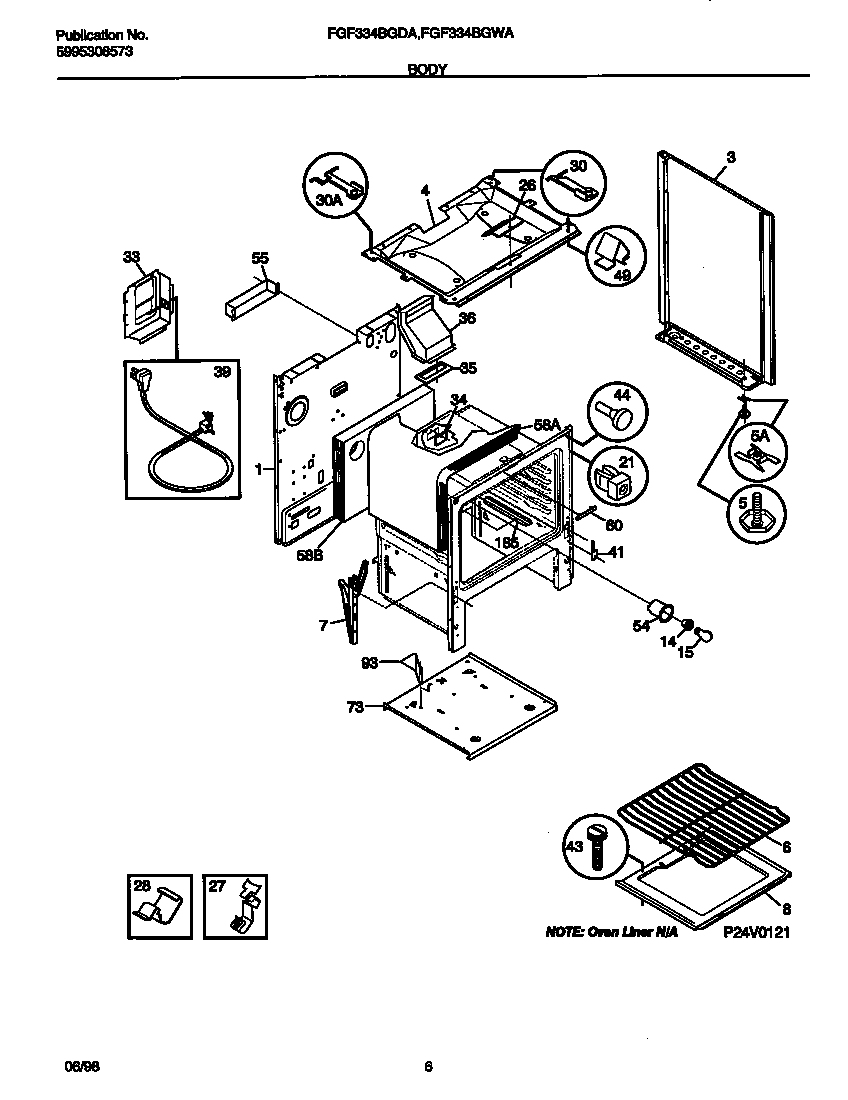

FGF334BGWA 04 – BODY

FGF334BGWA 04 – BODY

Written by

in

FGF334BGWA 04 – BODY

Products

PositionProduct
*03338SCREW-HEAT SHIELD, HD SHLDR SQDR, 8-18 X 1/2
*033363203010 Frigidaire Clip
*03334WCI 3934058
*03335316116000 Frigidaire Screw
*033283203550 Frigidaire Oven Plug
*03329WCI 316001219
*03331Screw,cup pt ,8-18 x 0.375 ,chrome
*03337316064600 Frigidaire Oven Support
*03332WCI 316081029
*03330316021105 Frigidaire Oven Screw
1WCI 316029412
3WCI 316081028
4WCI 316011912
5NUT, T,TYPE, LEVELING SCREW (NOT ILLUSTRATED)
5SCREW-LEVELING
6316067902 Frigidaire Oven Rack
7Hinge,oven door ,(2)
8BTTM-OVEN
9PAN-BROILER
10WCI 5303131356
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
18WCI 316059201
18WCI 316059200
21SPACER-BODYSIDE, (8)
26WCI 08067757
275303284616 Frigidaire Range Bulb Clip Thermostat
28CLIP-WIRE
33WCI 316055601
34COVER-IGNITOR
35316542102 Frigidaire Flue Gasket
36WCI 5303273108
395304515659 Frigidaire Oven Power Cord
41WCI 3131570
43316282700 Frigidaire Oven Screw
493205821 Frigidaire Clip
54WCI 5303271606
55WCI 5303289358
58INSULATION, OVEN WRAPPER
58INSUL – OVEN BACK (NON-ILLUSTRATED)
60COVER-OVEN FRONT
73BASE-BROIL
93WCI 316110000
185316112900 Frigidaire SHIELD
