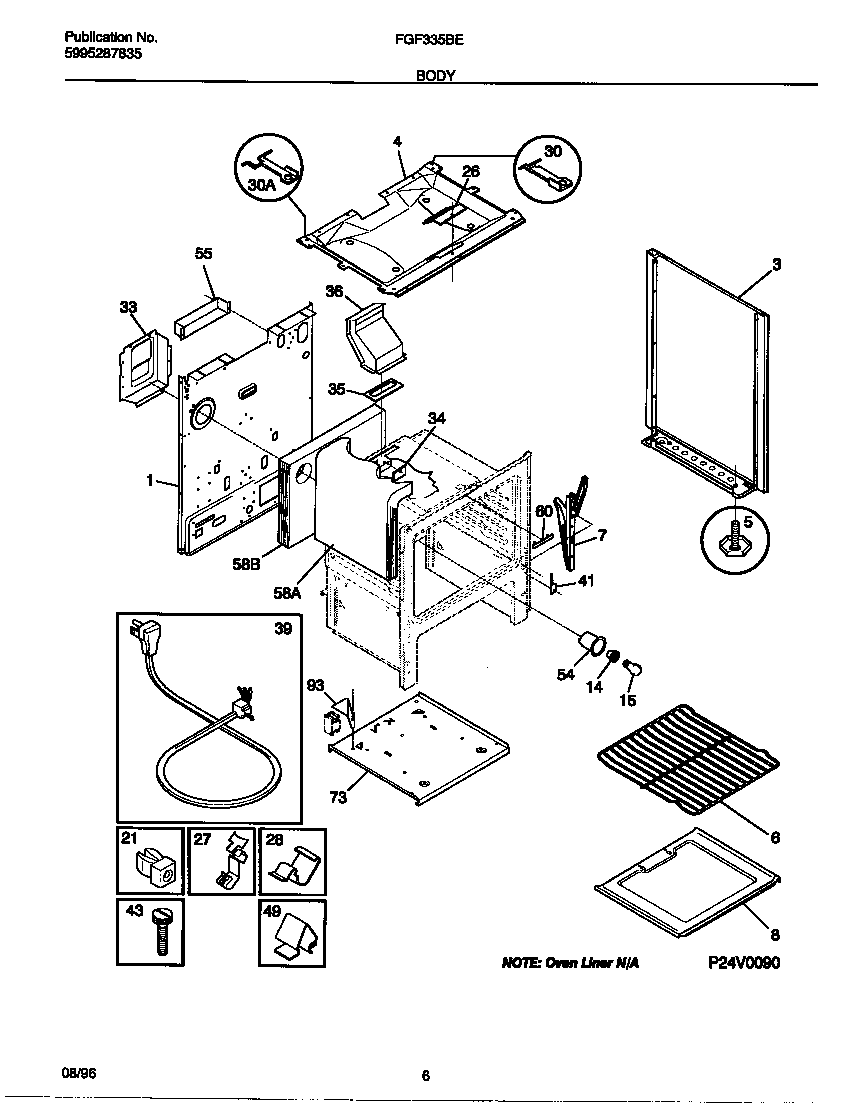

FGF335BEWA 04 – BODY

FGF335BEWA 04 – BODY

Written by

in

FGF335BEWA 04 – BODY

Products

PositionProduct
*59286WCI 316001216
*59284316539800 Frigidaire Oven Retainer
*59285Screw,cup pt ,8-18 x 0.375 ,chrome
1WCI 316029412
3WCI 316081013
3WCI 316081012
4WCI 316011912
5NUT, T,TYPE, LEVELING SCREW (NOT ILLUSTRATED)
5316116000 Frigidaire Screw
5SCREW-LEVELING
6316067902 Frigidaire Oven Rack
7Hinge,oven door ,(2)
73203010 Frigidaire Clip
8BTTM-OVEN
8316064600 Frigidaire Oven Support
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
21SPACER-BODYSIDE, (8)
275303284616 Frigidaire Range Bulb Clip Thermostat
28CLIP-WIRE
30WCI 316059200
30WCI 316059201
33WCI 316055601
34COVER-IGNITOR
35316542102 Frigidaire Flue Gasket
36WCI 5303273108
39WCI 08067961
395304515659 Frigidaire Oven Power Cord
41WCI 3131570
43316282700 Frigidaire Oven Screw
493205821 Frigidaire Clip
54WCI 3009290
55WCI 5303273110
58INSULATION, OVEN WRAPPER
58INSUL – OVEN BACK (NON-ILLUSTRATED)
60COVER-OVEN FRONT
73BASE-BROIL
93WCI 316055501
