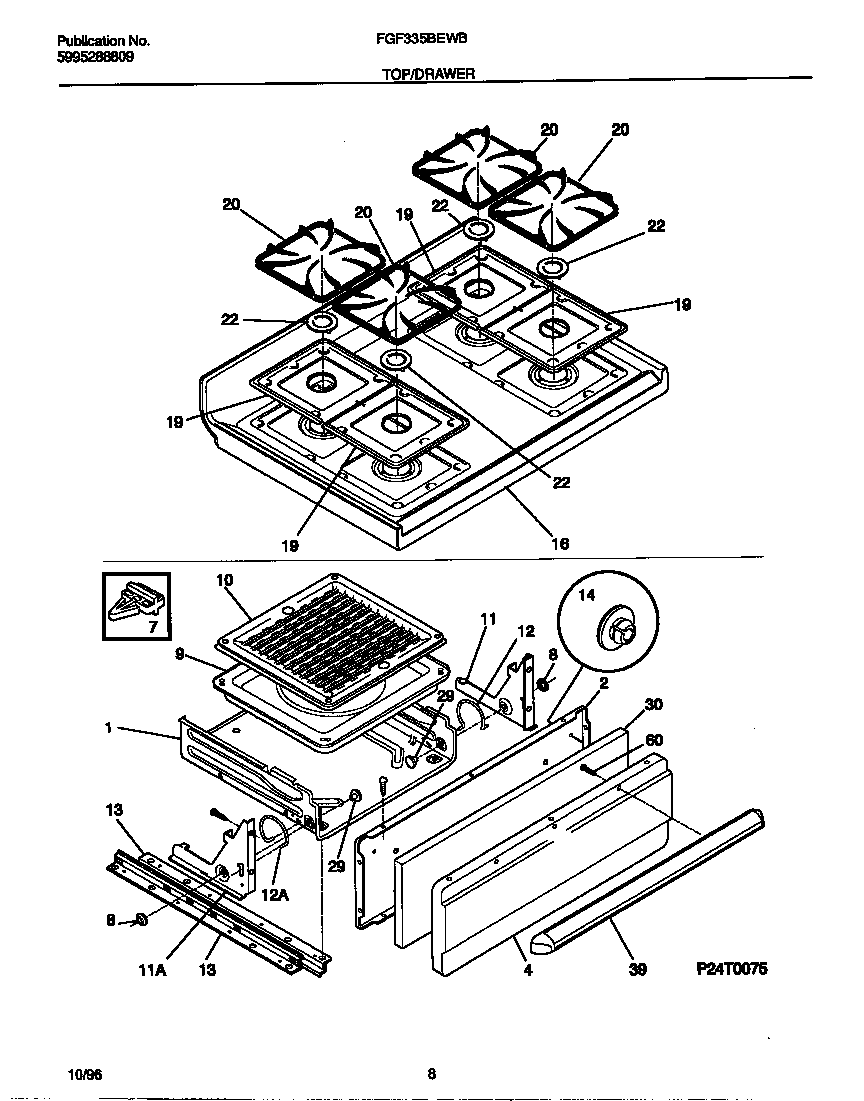

FGF335BEWB 05 – TOP/DRAWER

FGF335BEWB 05 – TOP/DRAWER

Written by

in

FGF335BEWB 05 – TOP/DRAWER

Products

PositionProduct
*62566WCI 5303280311
*62565WCI 316077400
*62568WCI 5303288574
*62567131243700 Frigidaire Screw
*62564Screw,cup pt ,8-18 x 0.375 ,chrome
1DRAWER-BROILER
2WCI 3202803
4SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
4PANEL-BROILER, WHITE
7GLIDE-DRAWER, REAR
8WCI 3131386
9PAN-BROILER
10WCI 5303131356
11BRACKET-BROILER HINGE, RH
11BRACKET-BROILER HINGE, LH
12WCI 3018618`
12SPRING-BROILER, RH
13WCI 3131153
14WCI 3206216
16WCI 5303307709
16Shield,deflector ,main top panel ,(2)
19Pan-burner,large ,black
19WCI 316011415
20WCI 316085300
22WCI 316011001
22CAP-BURNER, BLACK, LARGE, (2)
29PIN, HINGE (2)
30INSULATION, BROILER DRAWER
39WCI 316026100
60316089500 Frigidaire Oven Screw
