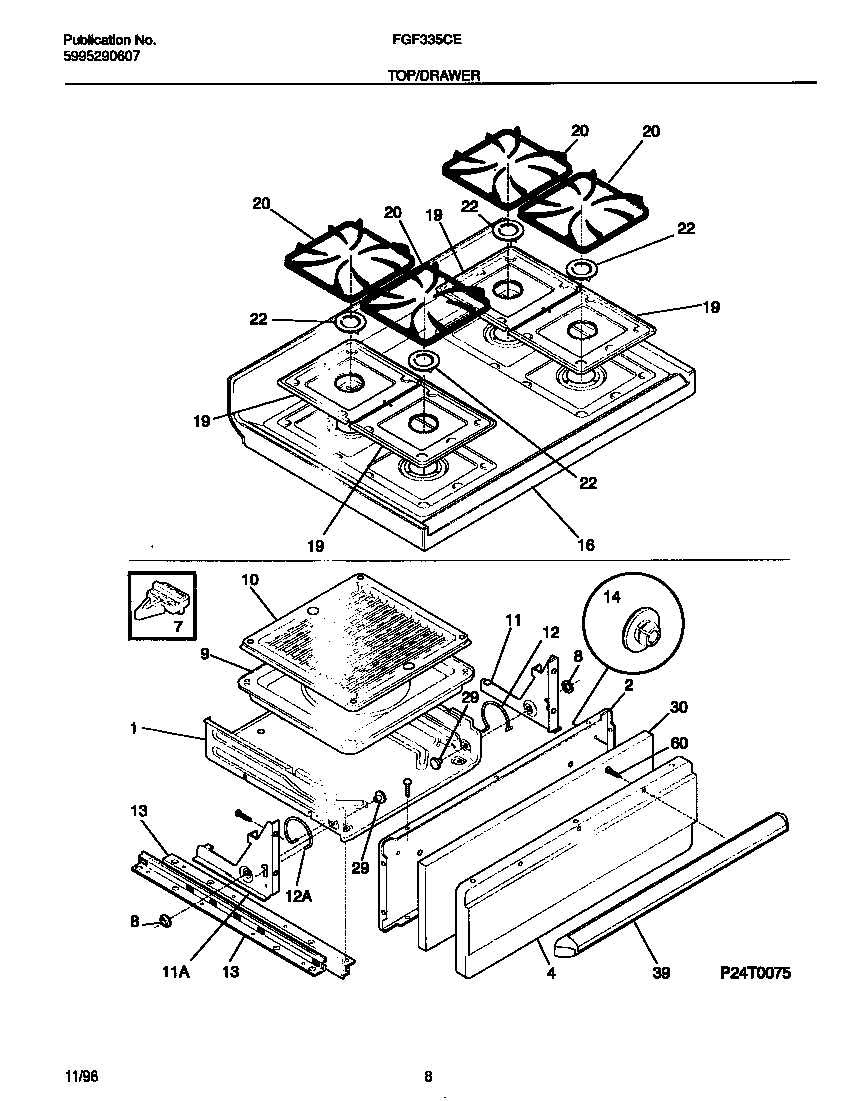

FGF335CESB 05 – TOP/DRAWER

Products

Position	Product
*75407	WCI 5303280311
*75405	WCI 316077400
*75409	WCI 5303288574
*75408	131243700 Frigidaire Screw
*75406	Screw,cup pt ,8-18 x 0.375 ,chrome
1	DRAWER-BROILER
2	WCI 3202803
4	SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
4	PANEL-BROILER, WHITE
7	GLIDE-DRAWER, REAR
8	WCI 3131386
9	PAN-BROILER
10	WCI 5303131356
11	BRACKET-BROILER HINGE, RH
11	BRACKET-BROILER HINGE, LH
12	WCI 3018618`
12	SPRING-BROILER, RH
13	WCI 3131153
14	WCI 3206216
16	WCI 5303307709
16	Shield,deflector ,main top panel ,(2)
19	WCI 316011413
19	Pan-burner,large ,gray
20	WCI 316085301
22	CAP-BURNER, MATTE GRAY, SMALL, (2)
22	WCI 316011013
29	PIN, HINGE (2)
30	INSULATION, BROILER DRAWER
39	WCI 316026103
60	316089500 Frigidaire Oven Screw
