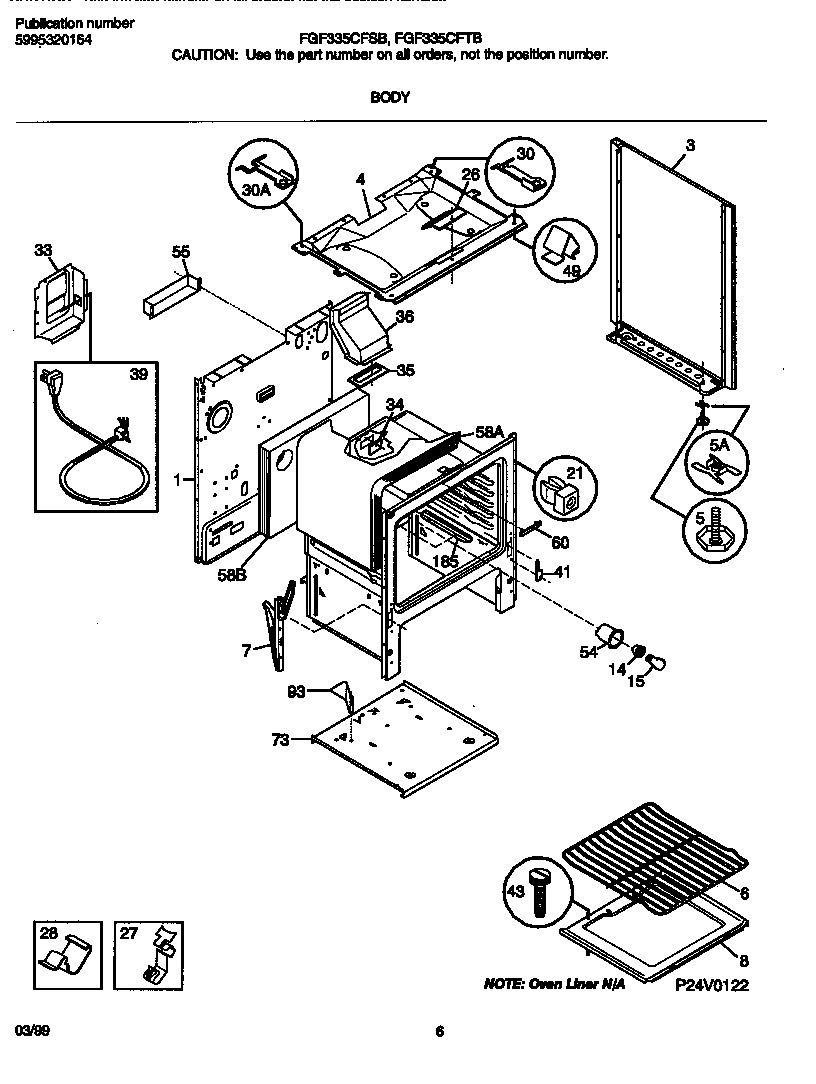

FGF335CFSB 04 – BODY

FGF335CFSB 04 – BODY

Written by

in

FGF335CFSB 04 – BODY

Products

PositionProduct
*81211WCI 316081029
*81214316116000 Frigidaire Screw
*81215316064600 Frigidaire Oven Support
*81209WCI 316001219
*81210Screw,cup pt ,8-18 x 0.375 ,chrome
*81213WCI 3934058
1WCI 316029412
3WCI 316081028
4WCI 316011914
5SCREW-LEVELING
5NUT, T,TYPE, LEVELING SCREW (NOT ILLUSTRATED)
6316067902 Frigidaire Oven Rack
7Hinge,oven door ,(2)
8BTTM-OVEN
9PAN-BROILER
10WCI 5303131356
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
21SPACER-BODYSIDE, (8)
275303284616 Frigidaire Range Bulb Clip Thermostat
28CLIP-WIRE
30WCI 316059201
30WCI 316059200
33WCI 316055601
34COVER-IGNITOR
35316542102 Frigidaire Flue Gasket
36WCI 5303273108
395304515659 Frigidaire Oven Power Cord
41WCI 3131570
43316282700 Frigidaire Oven Screw
493205821 Frigidaire Clip
54WCI 5303271606
55WCI 5303289358
58INSUL – OVEN BACK (NON-ILLUSTRATED)
58INSULATION, OVEN WRAPPER
60COVER-OVEN FRONT
93WCI 316055500
185316112900 Frigidaire SHIELD
