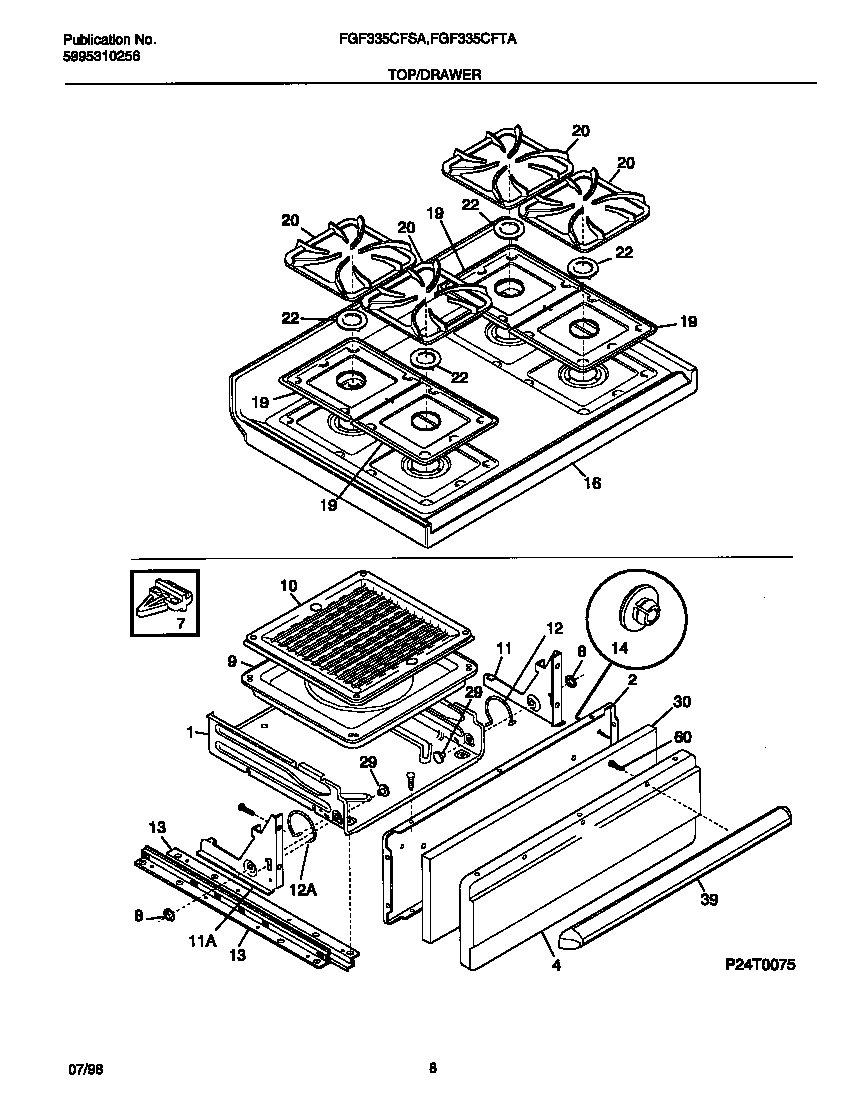

FGF335CFTA 05 – TOP/DRAWER

FGF335CFTA 05 – TOP/DRAWER

Written by

in

FGF335CFTA 05 – TOP/DRAWER

Products

PositionProduct
*32178Screw,cup pt ,8-18 x 0.375 ,chrome
*32179316021109 Frigidaire Oven Screw
*32182WCI 5303280311
1DRAWER-BROILER
2WCI 3202803
4WCI 316056202
7GLIDE-DRAWER, REAR
8WCI 3131386
9PAN-BROILER
10BWCI 5303280308
10AWCI 5303131356
11BRACKET-BROILER HINGE, LH
11BRACKET-BROILER HINGE, RH
12WCI 3018618`
12SPRING-BROILER, RH
13WCI 3131153
14WCI 3206216
16WCI 5303301547
19Pan-burner,small ,almond
20GRATE,GRAY ,(4)
22WCI 316098502
29PIN, HINGE (2)
30WCI 316059201
30AWCI 316059200
30BINSULATION, BROILER DRAWER
39WCI 316026107
60316021105 Frigidaire Oven Screw
